Selecting an item will bring up the Color Selection Dialog Box.

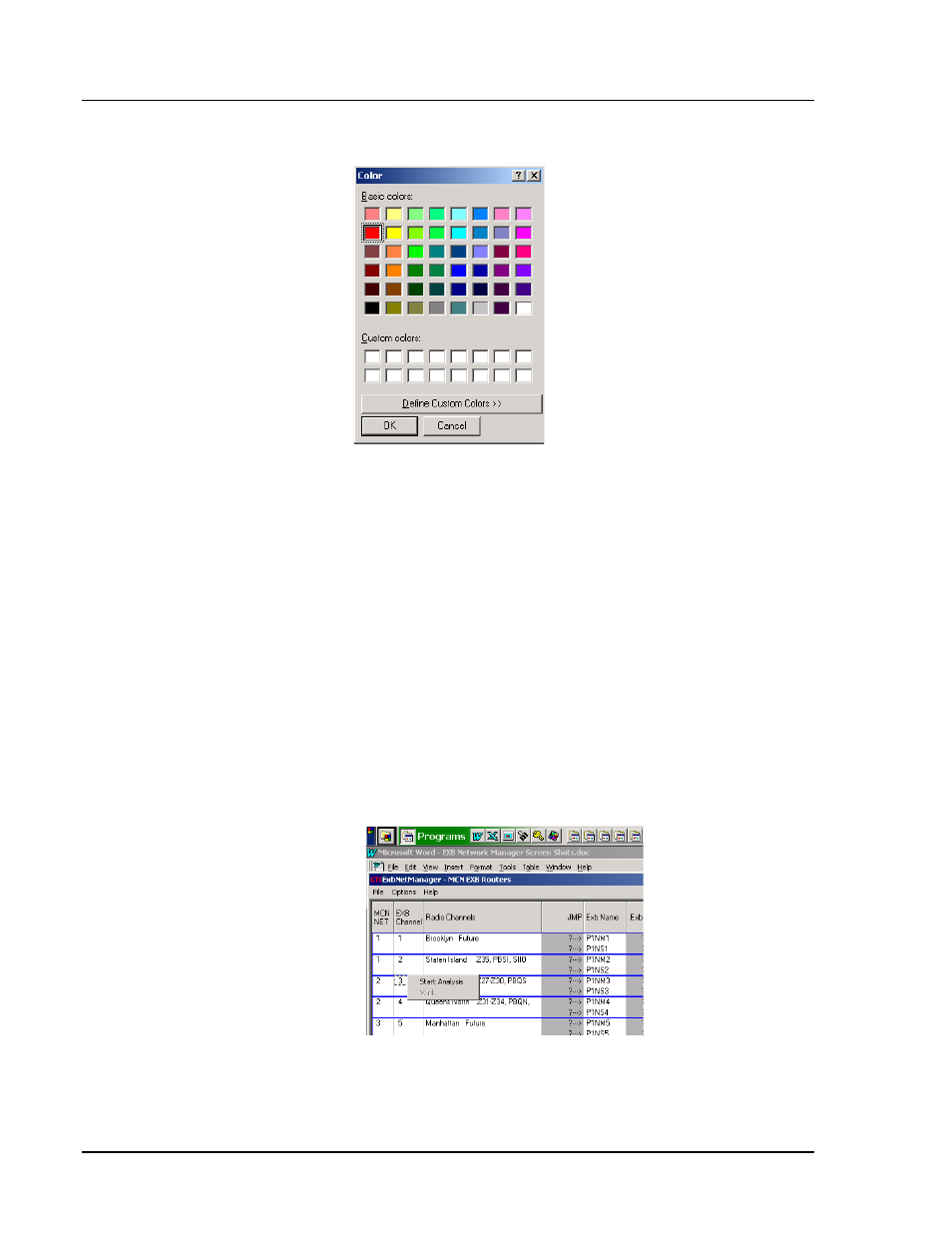

Figure 24 Color Selection Dialog Box
6.4.2 Status Bar Check Box
This check box turns the Status Bar on the bottom of the screen On & Off.
6.5 Processing (Analysis) Status Indication
The program will scan each EXB channel to check its status. The EXB Channel
field will change color to indicate which channel the program is analyzing.
6.6 Manual Start Analysis
To force the program to analyze a particular channel, double-click anywhere in
that EXB channel row. The Start Analysis window will appear. Click on Start
Analysis. The program will Queue up that channel for analysis next.
Figure 25 Start Analysis Window
(The Wink option is not enabled since the user didn't click directly on an EXB
name, but rather on the channel number.)
