Page 14
Load
(J6 pins 5, 3)
When the Load input (J6, pin 5) is momentarily shorted
to common, the CX-1102 enters the Load state. As a
momentary input, Load is internally latched and does
not need to be maintained closed by an operator
device.
NOTE: Close the H-Stop, Unload and F-Stop inputs
prior to entering the Load state. If you are only
using one of the Stop inputs, wire short the
other Stop inputs to the common or the
CX-1102 will not enter load.
Run
(J6 pins 6, 8)
When the Run input (J6, pin 6) is momentarily shorted
to common, the CX-1102 enters the Run state. As a
momentary input, Run is internally latched and does
not need to be maintained closed by an operator
device.
NOTE: Close the H-Stop, Unload and F-Stop inputs
prior to entering the Run state. If you are only
using one of the Stop inputs, wire short the
other Stop inputs to the common or the CX-
1102 will not enter run.
Spare
(J6 pins 7, 8)
The Spare input is not defined at this time.

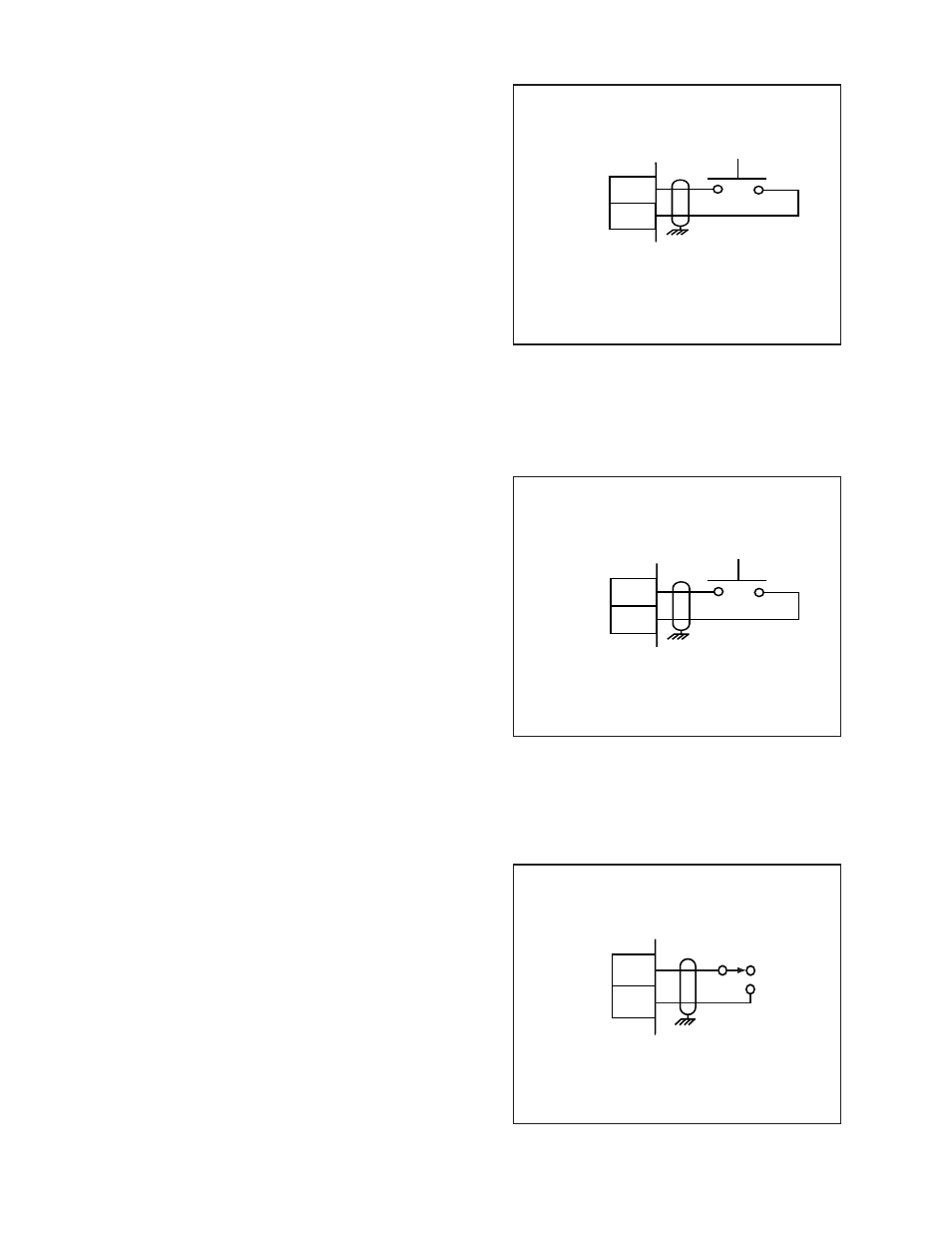

Figure 12 Load
LOAD
3
5
J6
Com
Load
Figure 13 Run
RUN
6
8
J6
Run
Com
Figure 14 Spare
SPARE
7
8
J6
Spare
Com
