Measurement
Once complete, the measurement results are displayed. The three columns of data displayed
are those that have been defined in
Instrument parameters on page 37
:
The three measurements are displayed graphically and are color coded. Those in green show
that the measurements are within the defined limits for this package. Those in red signify that
the measurements are outside the defined limits. These limits have been defined in the alarms
section of
.
It is possible to add 2 numerical values and 5 comments to these results by entering them in the
text boxes displayed down the left. The numerical values will be required if they have been
defined as part of a formula (see
).
Press the Continue button to return to the main measurement screen, or press the Info button
to display more detailed results (again color coded) in a tabular format.
For additional information on viewing the full set of measurement results, see the section
entitled
.
•
The head space is analyzed
•
The liquid is analyzed
Note:
This step will not be executed if the Headspace measurement
has been defined for this package (see
).
•
The measurement completes and the piercing arm is raised to its home position

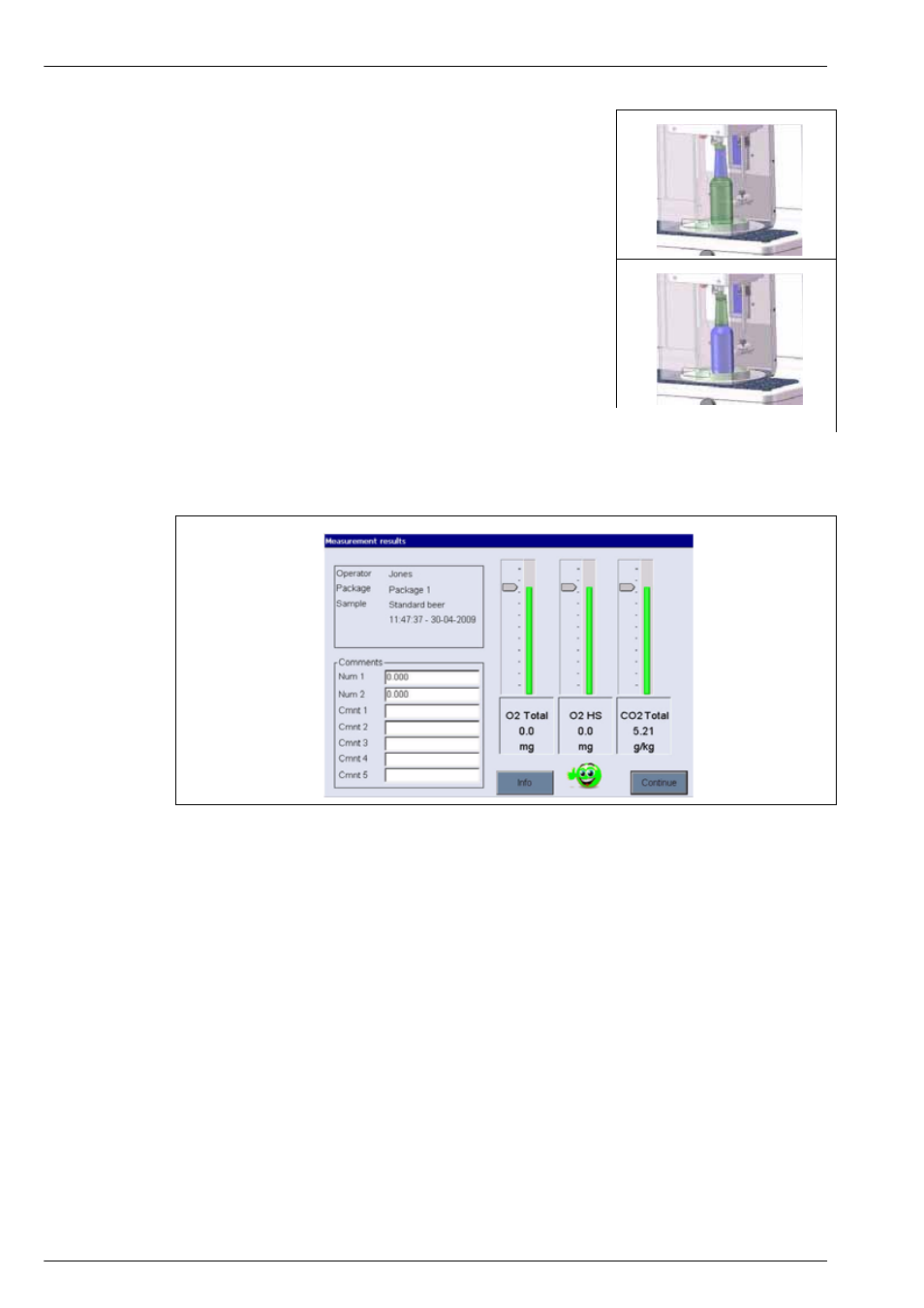

Figure 7 Measurement results screen
