. V-Series XLR-7M Option

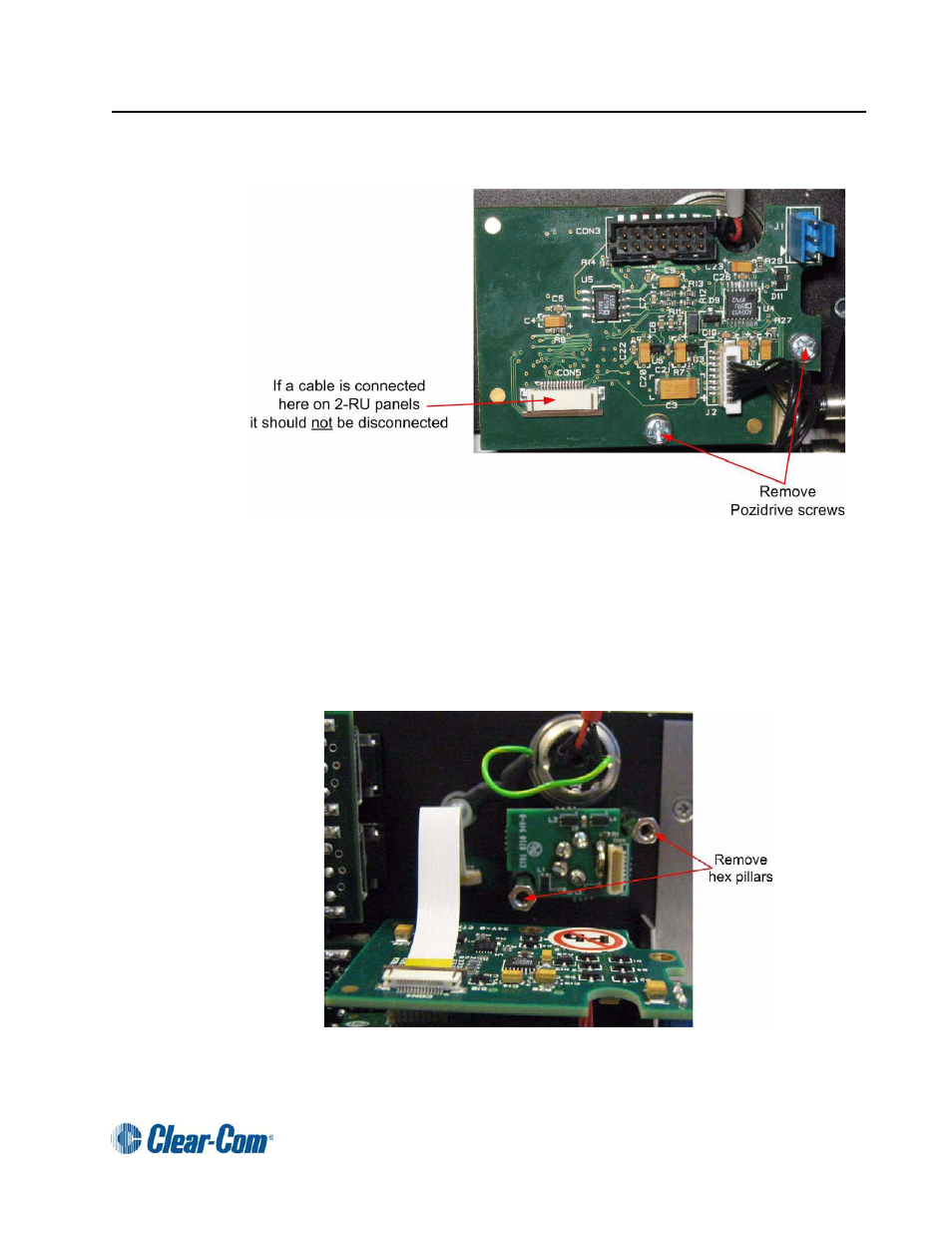

Figure 7: Audio Card with Cables Removed
Remove the 2 Pozidrive screws from the Front Panel Audio Card and gently pull the
audio card away from the Headset Connector Assembly.
Step 7
Remove the 2 hex pillars securing the Headset Connector Assembly to the front panel
assembly using the 5mm nut spinner.
Figure 8: Audio Card Removed from Headset Connector Assembly
5 PN 810405Z Rev. C
