Repair Parts
Item No. Description Kit A Kit B
1 Body
2 Spring Chamber
4 Spring Button
6 Handle
7 Range Spring
13 Clamp (2 Req'd) 1
14 Plug **
15 Gasket (Diaphragm) * **
16 O-ring (Plug) * **
17 Diaphragm * **
18 O-ring
* **
19 Seal
* **
20 Pusher Plate
21 Hitch Pin
25 Upper Guide Assembly
25.6 Adjusting Screw
25.7 Adjusting Screw Cap
25.8 Dowel Pin
25.9 Guide Seals (2 Req'd) * **
Item No. Description
26 Bearing
27 Guide Post
28 Pressure Plate
29 Nut Hex Jam
30 Set Screw
1 Refer to Figure 1 for Clamp and related item
numbers.
Not Shown:
Item No.
Description
11 Name Plate
12 Drive Screw

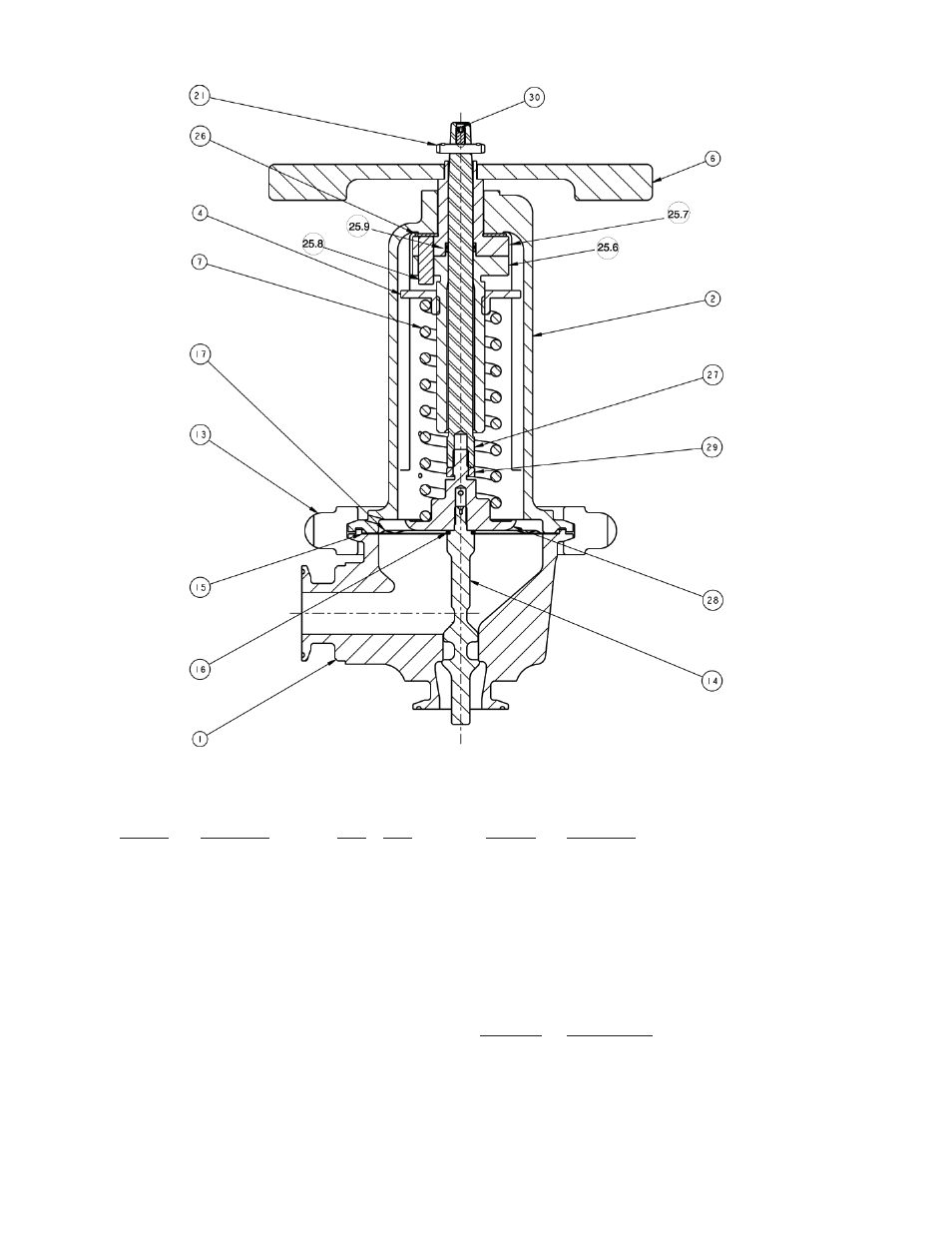

Figure 2
Forged body.
