IOM-DA4 15
Double-Posted Spanner Wrench Fitting
Body Size Part Number
All A96-75-9-P0459-00

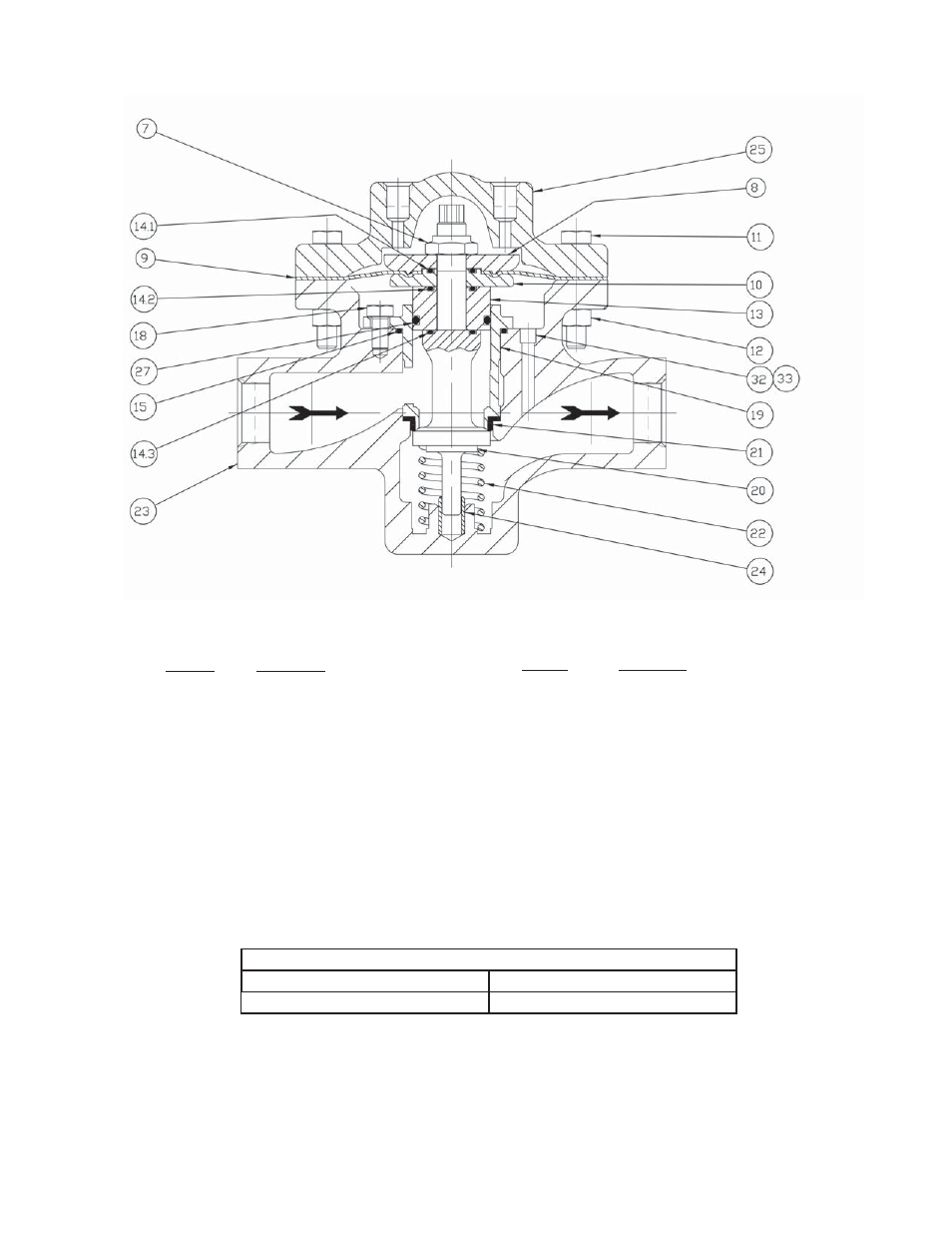

Item No. Description
7 Diaphragm Lock Nut
8 Upper Diaphragm Pressure Plate
9** Diaphragm
10 Lower Diaphragm Pusher Plate
11 Flange Bolts
12 * Flange Bolt Nuts
13 Piston-Guide Bearing
14** Stem Seals
14.1 Upper Stem Seal
14.2 Middle Stem Seal
14.3 Lower Stem Seal
15** Cage Seal
18 Cage Cap Screws
19 Cage
20 Valve Plug
Item No. Description
21** Seat Ring
22 Lower Piston Spring (if supplied)
23 Body
24
Lower Guide Bushing
25 Cover Dome
26 Tap Plug (Not Shown)
27** Dynamic Side Seal (See Figure 1)
32 Internal Sensing Plug – Solid
(External Sensing Only)
33 Internal Sensing Plug – Drilled
(Internal Sensing Only)
99 Nameplate
* Not required on 2" CS & SST Body Material.
** Recommended Repair Parts.
Model DA4
Composition Diaphragm
(without Wiper Seal)
