Burkert Type S039 - Manual (Page 29)

8039 29
ENGLISH ENGLISH
4
1
3
2
5
+
-
+ -
24 V=
24V, 700mA
8039
1A
4
1
3
2
5
+
-
+ -
24 V=
24V, 700mA
8039
1A
* Protection must be installed
by the user depending on
the load, for instance, a
connector EN 175301-803
with integrated varistor.
Protection
circuit *
Protection
circuit *
Solenoid
valve
Solenoid
valve

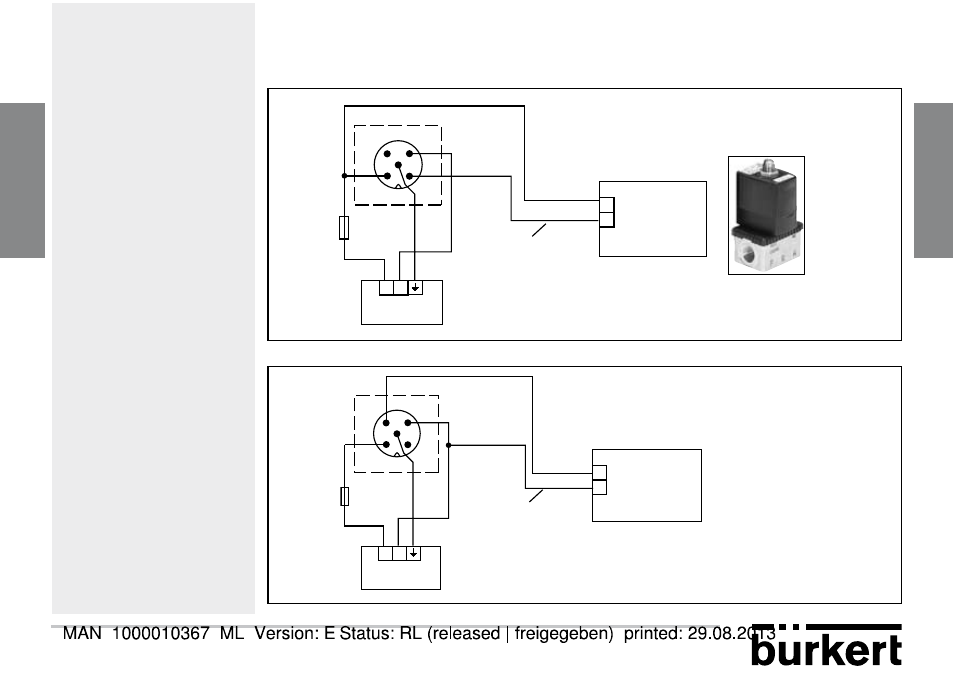

npn connection:
controller 8039
(npn/pnp version)
to a solenoid valve
6014.
pnp connection:
controller 8039
(npn/pnp version)
and a solenoid
valve.
