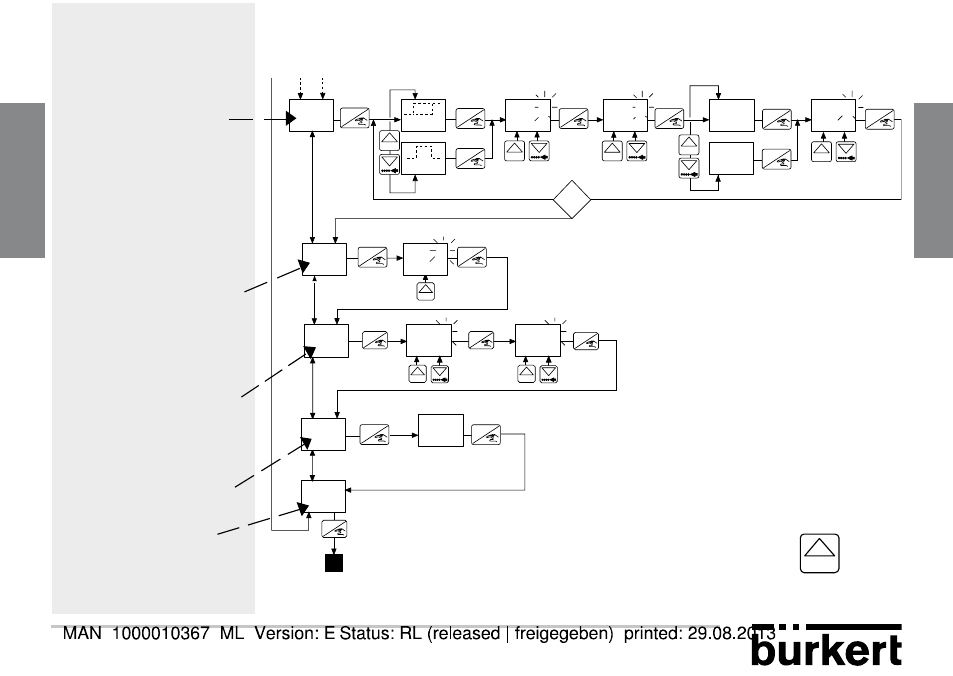

to choose :
- the switching mode of the
output (Hysteresis or
Window, see p. 21)
- the low (O LO) and high
(O HI) switching thresholds
- whether the switching
mode is inverted or not
(INV, see p. 21)
- the delay before switching
(DEL, in seconds)
to choose
the filtering level
(FILT) of the displayed flow
rate; «0» means "all the flow
rate variations are displayed",
«9» smoothes the displayed
flow rates at the most.
to define
the min. (BG LO)
and max. (BG HI) values of
the bargraph at the bottom of
the display.
feature EXT not used.
to return (END) to the
display of the flow rate in the
Normal mode.
FILT
9
FILT
yes
no
OUT
8.000
O LO MODE
MODE
10.00
O HI
NO
INV
YES
INV
99
DEL
BRGR
5.000
BG LO
15.00
BG HI
NO
EXT EXT
END
* To move the decimal point, press simultaneously keys
0......9
and
