flow rate controller 8039
NPN
0 V
V+ V+
IN
0 V
(*)
1
3
2

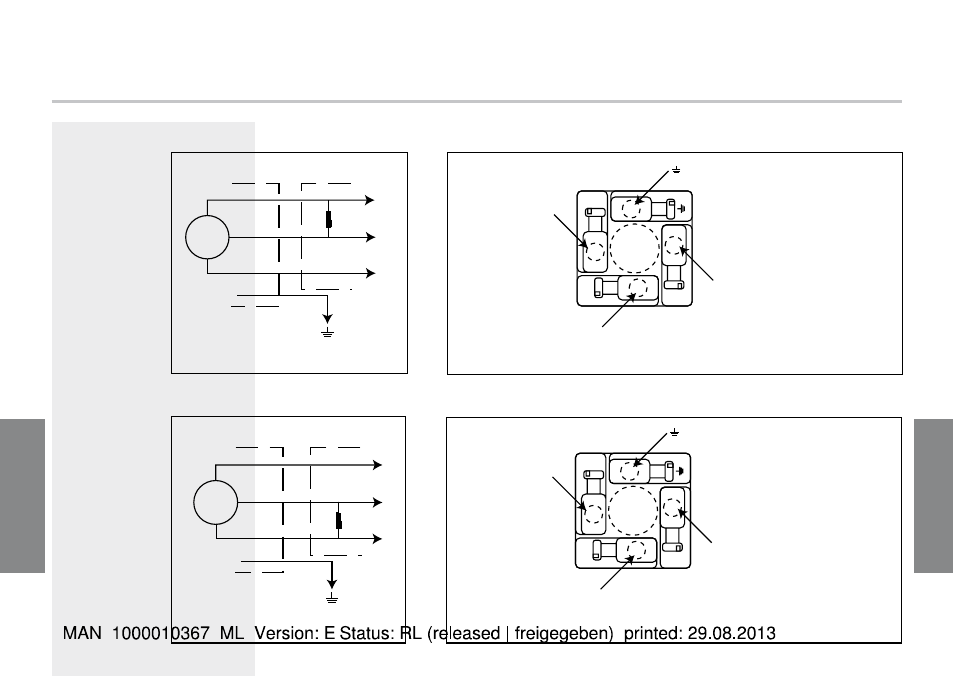

4.3.2 Version with npn transistor output via en 1301-803 connector
4.3.3 Version with pnp transistor output via en 1301-803 connector
4 installation
npn output
Sensor Receiver
Load
npn wiring of en 175301-803 fixed connector
V+
(12-30 VDC)
NPN transistor output
0 V DC
NPN
output
pnp output
V+
(12-30 VDC)
PNP transistor output
0 V DC
Sensor Receiver
Load
PNP
output
(*)
(*)
PNP
0 V
V+ V+
IN
0 V
(*)
1
3
2
pnp wiring of en 175301-803 fixed connector
