Dosingsystem(Optional)

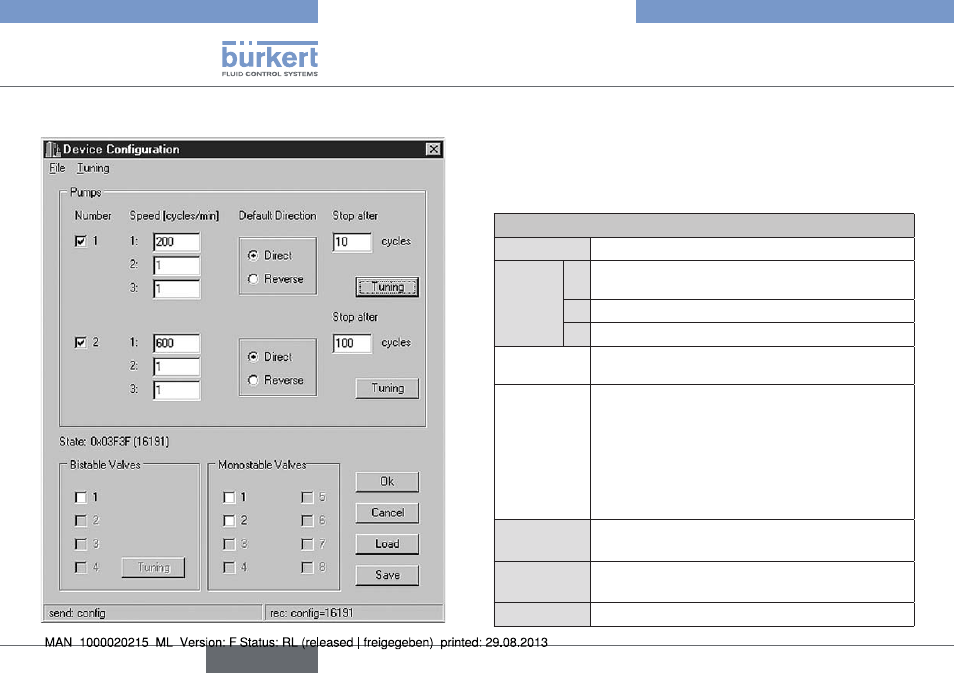

Window "hardware configuration" 9.3.2. The dosing system can be operated with or without PC.
If operation is without a PC, the control frequencies set in this
window (in fields 1-3) are used.
For this mode, additional configuration of the hardware is required.
Menu description
panel "pumps"
number
Selection of the dosing unit 1 / 2
speed
[cycles/
min]
1
Control frequency of pump 1 in mode A 1)
1. Control frequency in mode B 2)
2 2. Control frequency in mode B 2)
3 3. Control frequency in mode B 2)
1) Mode A
Device is connected with PC; the control is
performed via the software.
2) Mode B
Device is in standalone mode.
The control takes place via the configurations that
were stored in the hardware.
The change-over of the hardware takes place via
jumpers.
Additional information on the change-over of the
hardware can be found in the following chapter
"Hardware".
default
direction
Setting of the flow direction for dosing unit 1 / 2
(direct / reverse – forward / reverse)
stop after xx
cycles
The respective dosing unit stops after xx cycles
tuning Configuration of the control diagram
