6. STRUCTURE AND FUNCTION
The Flipper Valve Type 6144 is a 3/2-way solenoid valve that
can be operated either electrically (monostable or bistable)
or mechanically via manual actuation.
7. TECHNICAL DATA
7.1. Operating conditions
WARNING!
Danger of injury due to function failure.
The device is not designed for use in outdoor locations.
• Do not use the Type 6144 in outdoor locations, and
avoid heat sources that could cause the temperature
to exceed the permissible temperature range.
Ambient temperature 0 to +55 °C
Fluid temperature
0 to +55 °C
Fluids Compressed air: oiled, oil-free or dry;
neutral liquids and gases (5 µm filtering);
Technical vacuum.
Protection category IP40 with rectangular connector
Protection class
3 acc. to VDE 0580
7.2. Mechanical data
Dimensions see data sheet
english 9
Housing material PPS, fibreglass reinforced
Seal material FKM

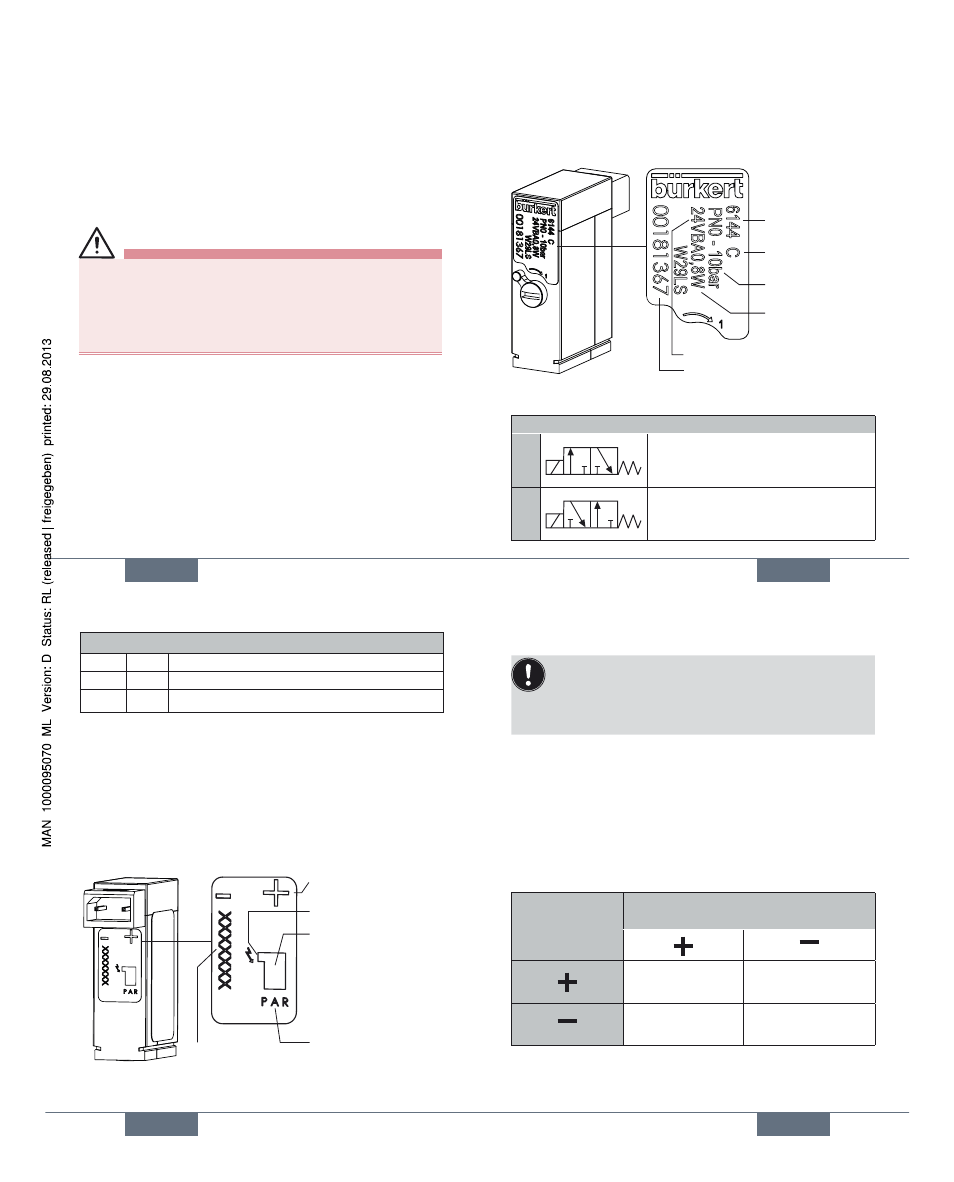

7.3. Type plate
Example: WWC
Circuit function
Pressure range
Voltage (±10 %)
Order no.
Type
Power
consumption
7.4. Pneumatic data
Circuit functions
C
2
1 3
3/2-way valve, direct acting, outlet
2 depressurized when deenergized
D
2
1 3
3/2-way valve, direct acting, outlet
2 pressurized when deenergized
english 10
Fluid connections
1 P Pressure connection
2 A Working connection
3 R Exhaust air connection
Pressure range see type plate
Line connections Bürkert flange below
Lateral flange at side
MP01 flange at side (valve manifold)
7.5. Labelling of the electrical and
fluid connections
Housing symbol
for determining
position of the valve
outlets on the
underside of the
housing:
Arrangement of the
value outlets
Polarity
Serial no.
Electr. connection
english 11
7.6. Electrical data
Correct polarity is essential for the
device to function!
See chapter
„7.5. Labelling of the electrical and
fluid connections“
Operating voltage as per type plate ± 10 %
Nominal power 0,8 W (see ATEX instructions for
Explosion-proof version)
Standard operating mode continuous operation,
duty cycle 100%
7.6.1. Control of the bistable version:
Labelling
Polarity
Min. pulse duration 50 ms
Valve (P seat)
is opened Valve (P seat)
is closed
Valve (P seat)
is closed Valve (P seat)
is opened
Type 6144
