Page 15
15
Technical data
Typ 2300
Pilot air port
Exhaust air port
Additional exhaust air port only
with pilot-operated control
system for high air output from
(actuator size ø 130)
1
3
3.1

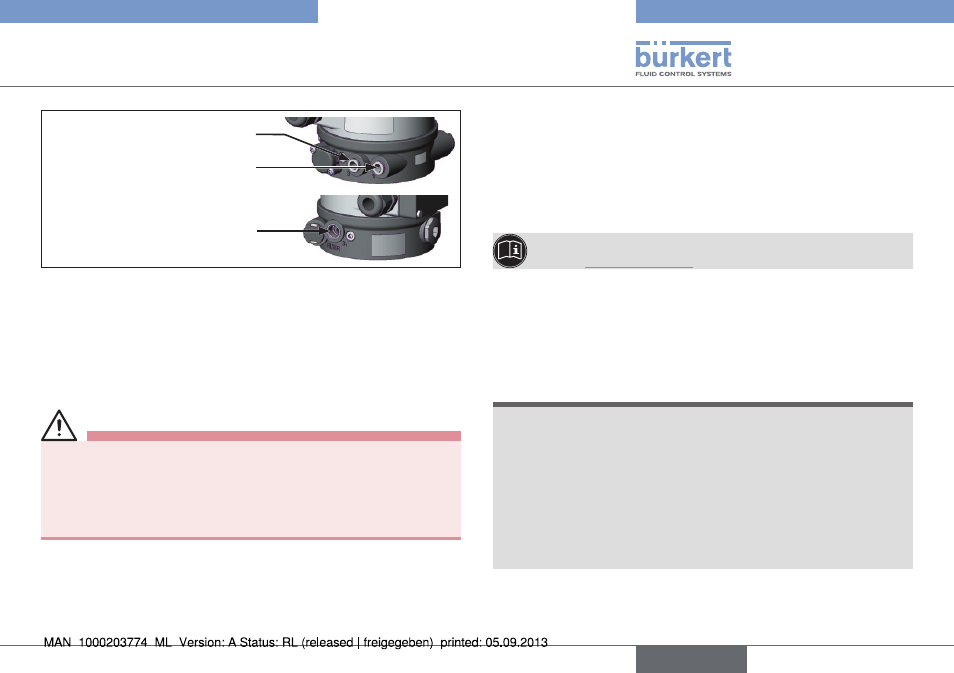

Fig. 8:
Pneumatic connection
Control air hose:
6/4 mm or 1/4” pilot air hoses can be used.
A pilot air port via G 1/8” thread is available as an option.
8.5. Removal
WARNING!
Risk of injury from discharge of medium and pressure!
It is dangerous to remove a device which is under pressure due to
the sudden release of pressure or discharge of medium.
• Before removing a device, switch off the pressure and vent the
lines.
Procedure:
→
Loosen the pneumatic connection.
→
Remove the device.
8.6. Maintenance work
→
Complete a visual inspection of the equipment once a year. Shorter
maintenance intervals may be recommended depending on the
operating conditions.
Wear parts: seals and control cone.
→
In the event of a leak, replace the relevant wear part.
The maintenance and repair instructions are available on the
9. PACKAGING, TRANSPORT,
STORAGE
NOTE!
Transport and storage damage!
• Protect the device against moisture and dirt in shock-resistant
packaging during transportation and storage.
• Permitted storage temperature: -20 – +65°C.
Damage to the environment caused by device components
contaminated with media.
• Ensure the device and packaging are disposed of in an environ-
mentally sound manner!
english
