Model sla7840 – Brooks Instrument SLA7840 User Manual
Page 10
1-4
Model SLA7840
Section 1 Introduction
Installation and Operation Manual
X-PR-SLA7800-RT-eng
Part Number: 541B048AAG
August, 2009
PHYSICAL:

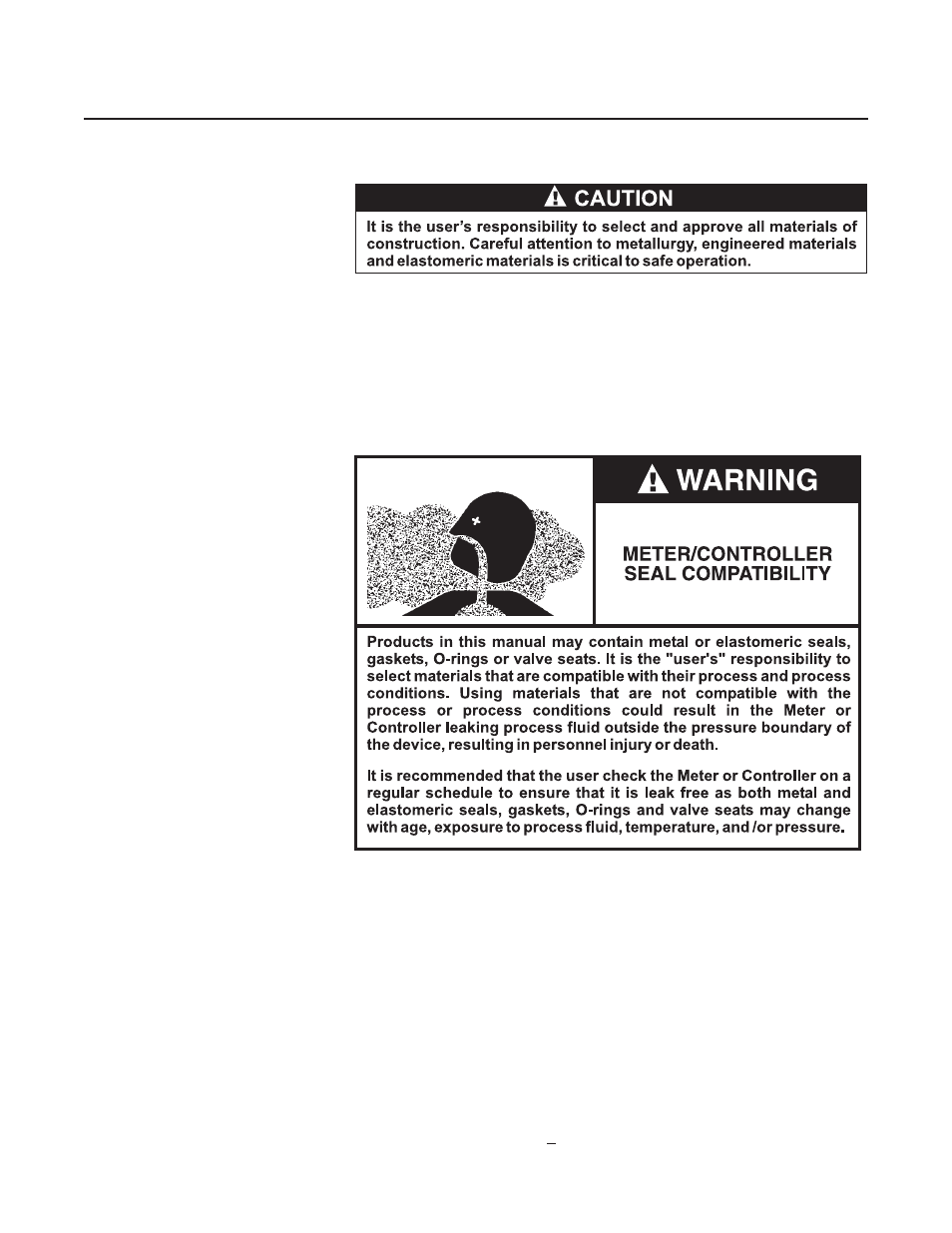

Materials of Construction
316L (VAR), 316L, and high-alloy ferritic stainless steel.
External/internal seals: Nickel
Valve seat: 316L stainless steel - standard
Internal Wetted Surface Finish: 32 Ra maximum
Dimensions
Refer to Figures 1-1 and 1-2
Process Connections
1/4" male VCR
TM
(standard)
Electrical Characteristics:
Electrical Connections
Analog I/O option:15-pin D-Connector, male:
DeviceNet I/O option: 5-pin Micro-Connector, male
Power Supply Voltage
Analog I/O option: +15 Vdc, +5% (traditional -15 Vdc pin is ignored)
DeviceNet I/O option: 11-25 Vdc
