Section 3 Operation

BM Oval Series

Installation and Operation Manual
X-PD-BM-Ovals-eng
Part Number: 541B031AAG
January, 2009

Automatic Operation Mode:

Display is flashing; change respective setting by "+";"-" or "1-10".
The setting will be confirmed by pressing "ENTER".

To perform the following procedures in automatic mode:
(Refer to Figure 3-12).

Cancel Total Quantity (only possible in normal operation mode)

Display Flowrate (Figure 3-12)

Fill Quantity Operation

Press Auto button and hold for 5 seconds to enter automatic mode.

(See Figure 3-13)

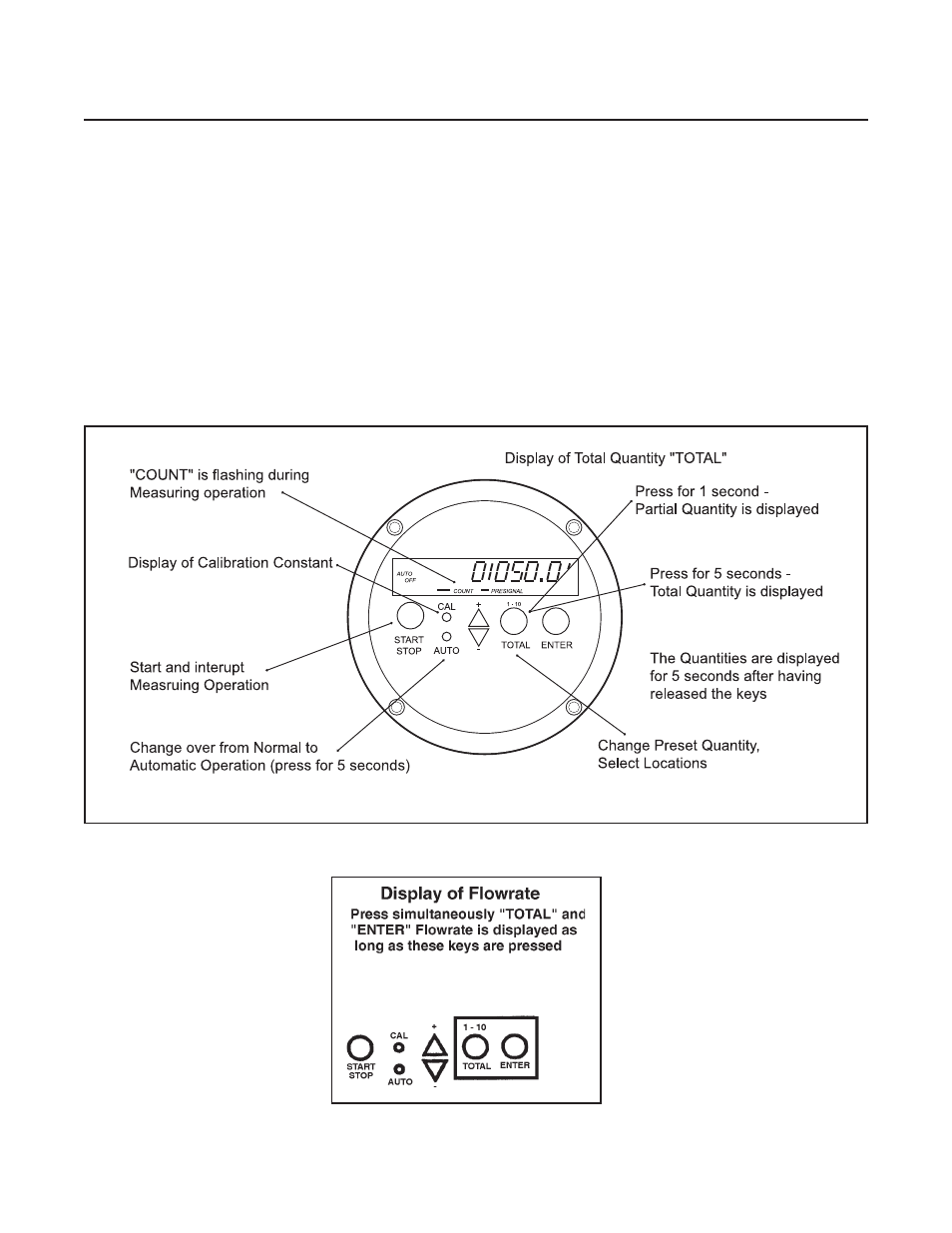

Figure 3-13 Operation View (Automatic Mode)

Figure 3-14 Display of Flowrate (Automatic Mode)
