Section 1 Introduction Installation and Operation Manual
X-PD-BM-Ovals-eng
Part Number: 541B031AAG
January, 2009
BM Oval Series
Mechanical Display
The mechanical display is available on the
BM04, BM10, BM40 and BM50 models.
Features:
• U.S. Gallons or Liters
• 2 total displays 1 to 9,999 liters or 1/10 to 999.9 U.S. Gallons
(resettable) 1 to 999;999 Liters (X10) or 1 to 999,999 U.S.
Gallons (non-resettable)
• Push button reset
• Rotatable in 90° increments

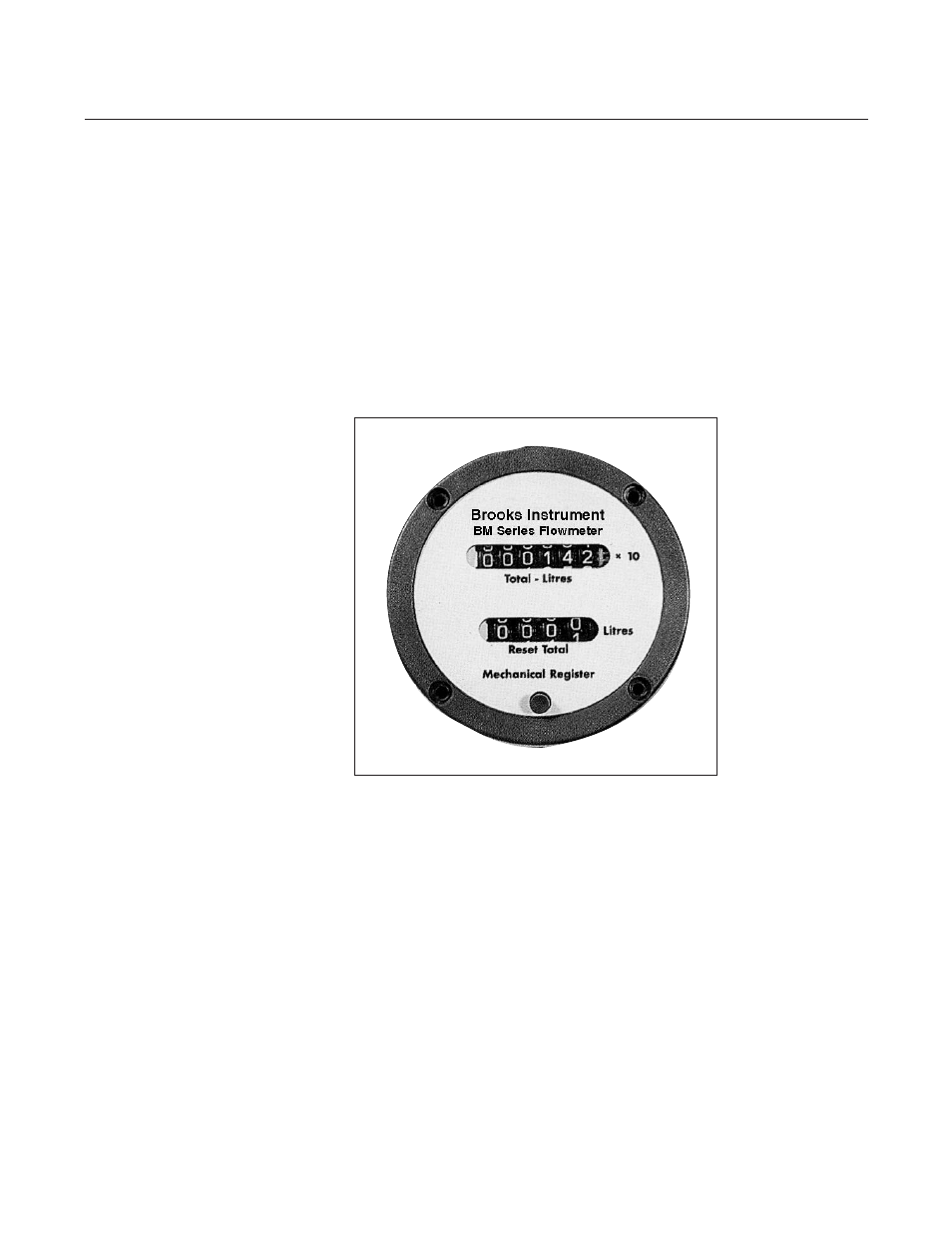

Figure 1-4 Mechanical Display
