3-6
Section 3 Operation Installation and Operation Manual
X-PD-BM-Ovals-eng
Part Number: 541B031AAG
January, 2009
BM Oval Series
Alarm 01 - 03:
When Alarm is displayed, please consultSection 4 for Problem solving.
Programming Setup-Level:
Configuration of the Standard Display is done at SETUP-level. SETUP-
level can be reached by pressing the PROG/ENTER key for 7 seconds; at
which time, both arrows will be displayed. In order to return to the operator
level, PROG will have to be pressed for three seconds. Alternatively, if no
keys are pressed for 2 minutes, the unit will exit SETUP automatically.
SETUP can be reached at all times and the Standard Display remains full
operational.
Password: A password may be required to enter SETUP. Without this
password access to SETUP is denied.
SETUP is divided into several main- and sub-functions. Main functions are
selected with (u) and sub-functions with (p). Each function has a unique
number, which is displayed below the word “SETUP” at the bottom of the
display. The number is a combination of two figures. The first figure
indicates the main-function and the second figure the sub-function: For
example 12 is main-function 1 and sub function 2. Furthermore, each
function is expressed with a keyword. After selecting a sub-function, the
next main function can be selected after scrolling through all “active” sub-
functions (like 1
, 11, 12, 13, 14, 1, 2, 3, 31 etc.).

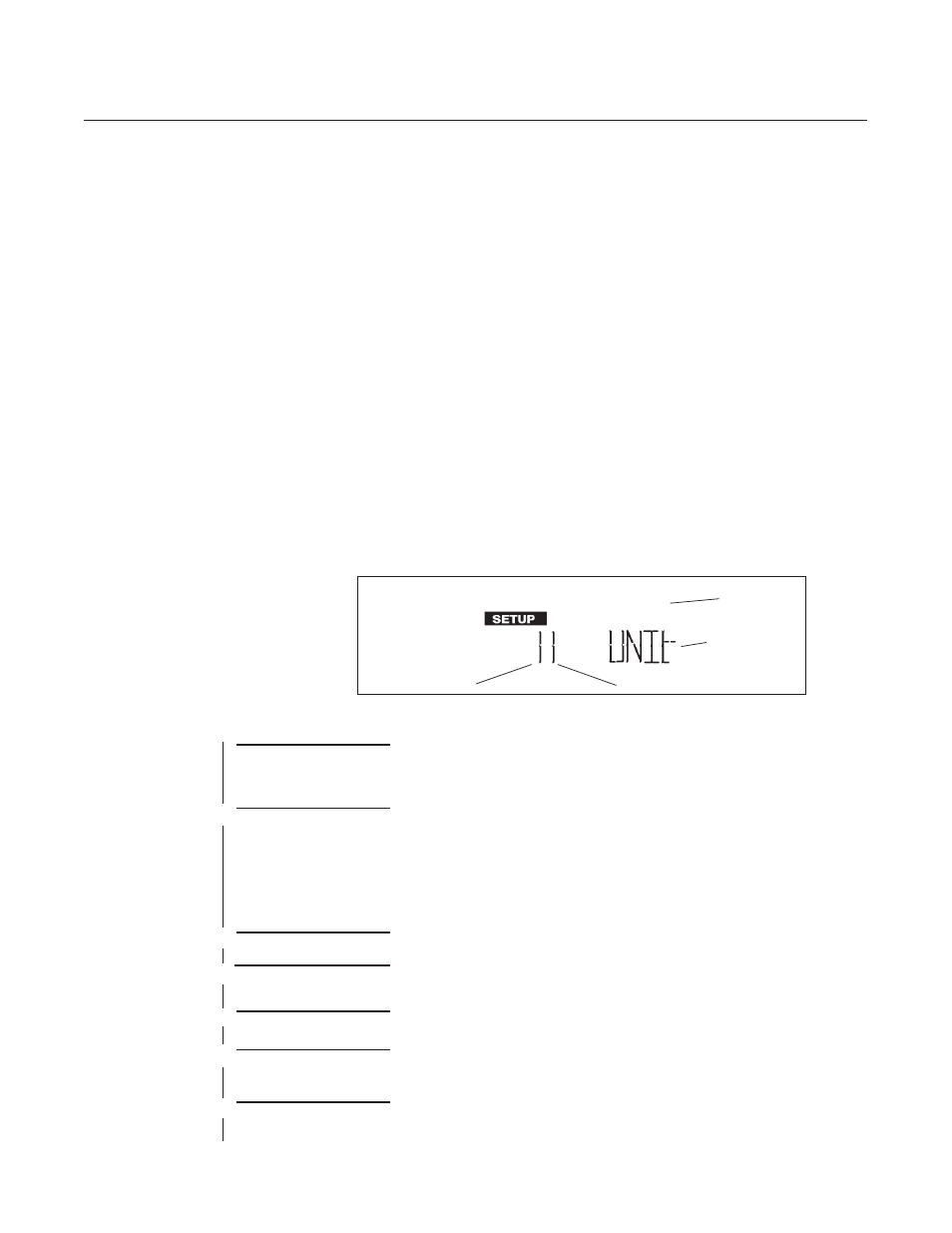

Figure 3-3 Control Panel Display, Example of Function
Unit options
Function Keyword
Main Function Sub Function
USGAL
SETUP has been divided as follows:
14
Decimals K-factor: 0 - 6
13 K-factor: 0.000010 - 9,999,999
12 Decimals: 0 - 1 - 2 -3
11 Unit: L - m3 - kg - lb - GAL - USGAL - bbl - no unit
27 Cut-off: 0.1 - 999.9 seconds
26 Calculation: per 1 - 255 pulses
25 Decimals K-factor: 0 - 6
24 K-factor: 0.000010 - 9,999,999
23 Decimals: 0 - 1 - 2 - 3(Ref: Display value)
22 Time Unit: sec - min - hour - day
21 Unit: mL - L - m3 - mg - g - kg - ton - GAL - bbl - lb - cf - rev - no unit
31 Function: total - flowrate
42 Battery Mode: operation - shelf
41 LCD Update: fast - 1sec - 3sec -15sec - 30sec - off
51 Signal: NPN - NPN_LP - Reed - Reed_LP
65 Tag number: 0000000 - 9999999
64 Password: 0000 - 9999
63 Serial No:
62 Software Version:
61 Type/Model:
Total
1
Flowrate
2
Display
3
Power Management
4
Flowmeter
5
Others
6














