Section 2 Installation
Installation and Operation Manual
X-PD-BM-Ovals-eng
Part Number: 541B031AAG
January, 2009
BM Oval Series

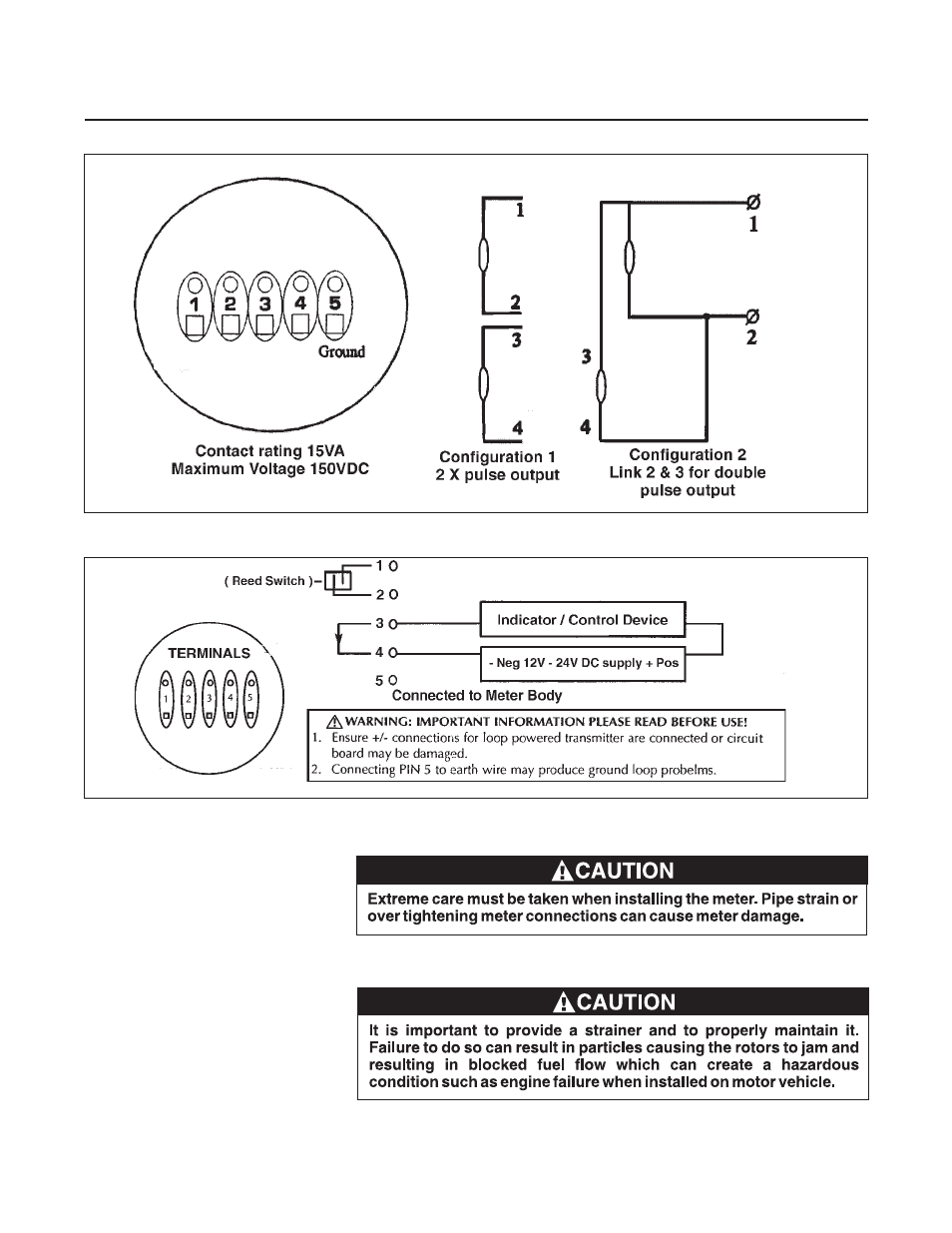

Figure 2-3 Reed Switch Connections for PCB Terminals
Figure 2-4 4-20 mA Loop Powered Transmitter
