Page 14
1-6
Section 1 Introduction
Installation and Operation Manual
X-PD-BM-Ovals-eng
Part Number: 541B031AAG
January, 2009
BM Oval Series
Deluxe LCD Display
The deluxe liquid crystal (LC) display is available on the models
BM04, BM07,BM10, BM40 and BM50 models.
Features:
•
Seven (7) digit x 1/2" (12.7 mm) Liquid Crystal Display
•
Rotatable in 90° increments
•
Selectable flow rate display in U.S. Gallons or Liters
(according to model selected)
•
2 total displays - resettable and non-resettable, up to 999999.99
units (gallons or liters)
•
Factory set calibration constant (K-factor)
•
Additional nine (9) calibration constants (K-factors) available
for "in the field" settings
•
Long life lithium battery
•
Extended life battery available as option
•
Pulse output on ancillary equipment
•
Approved for hazardous locations when used with standard
battery for EExia llC T6 (PTB nr. Ex-93.C 4033X)
•
Presettable batch control function up to 9,999 units (99.99,
999.9, 0r 9,999 optional settings)
•
Ten (10) preset batch quantity storage capacity.
•
Single or dual valve actuation output to be used with add on trip
amplifier

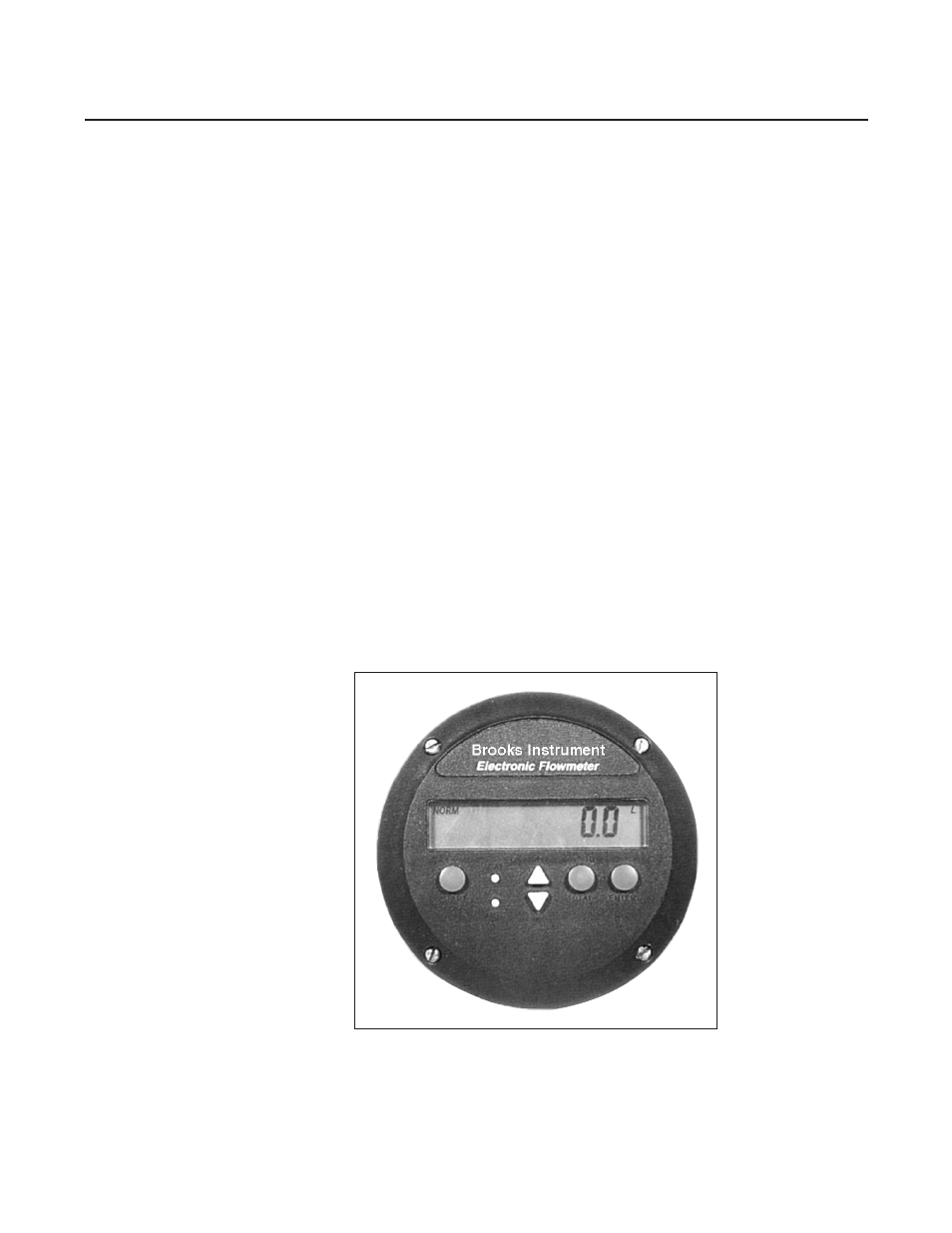

Figure 1-3 Deluxe LCD Display
