Datamax-O'Neil S-Class SV Cutter Option User Manual
Page 8
6

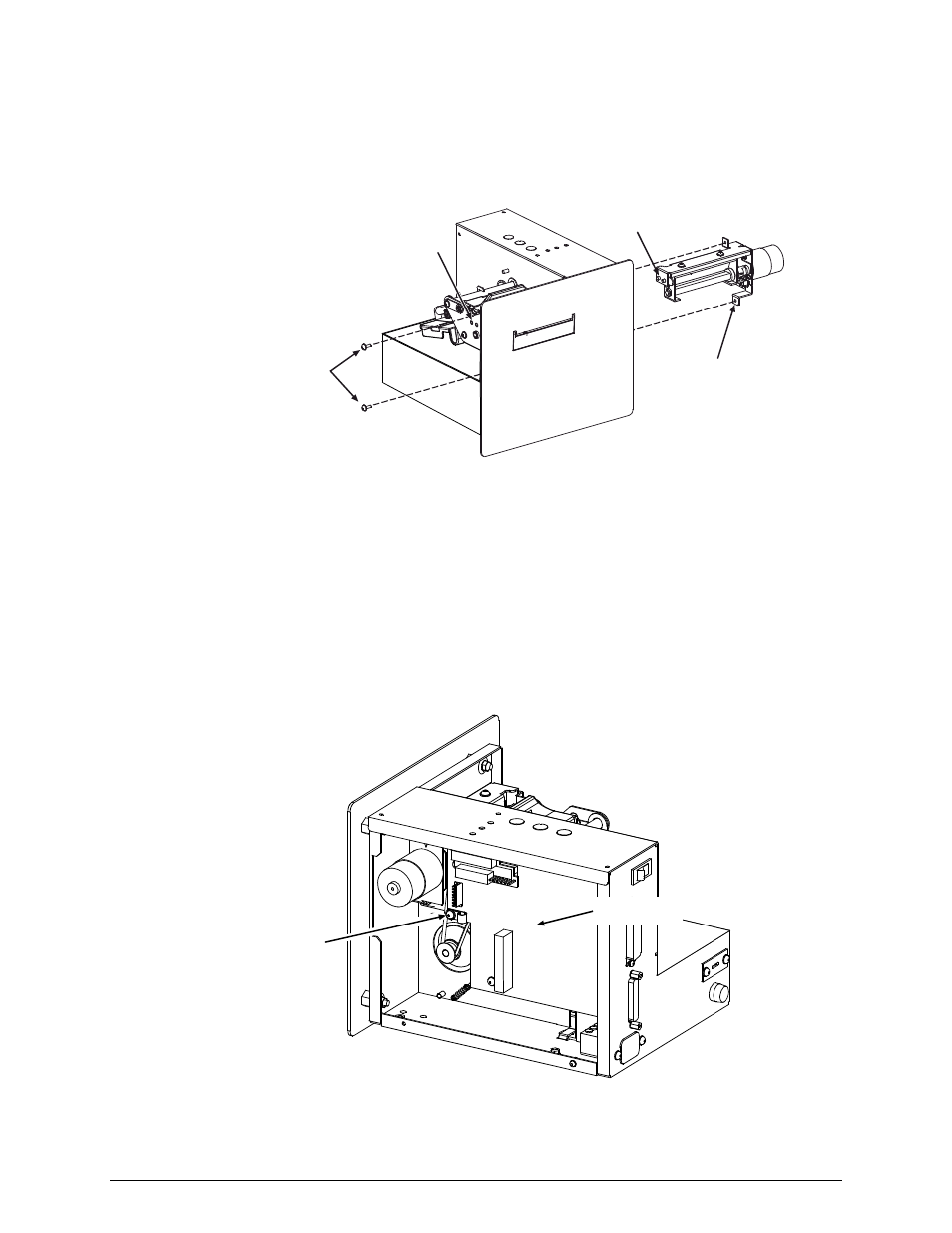

4. Carefully slide the Cutter Assembly (Item 1) into the printer. Ensure that the Guide Pins on the
assembly fit into the Locator Holes in the printer, and then secure the Cutter Assembly in place using
the two Mounting Screws (Item 5).
Cutter Assembly
Mounting Screws
Guide
Pins
Locator
Holes
5. Remove the Screw that secures the Strain Relief to the chassis. (It is not necessary to remove the
Strain Relief or reroute any cabling).
Baseplate
Screw
&
Strain Relief
Main CCA
