Datamax-O'Neil S-Class SV Cutter Option User Manual
Page 13
11

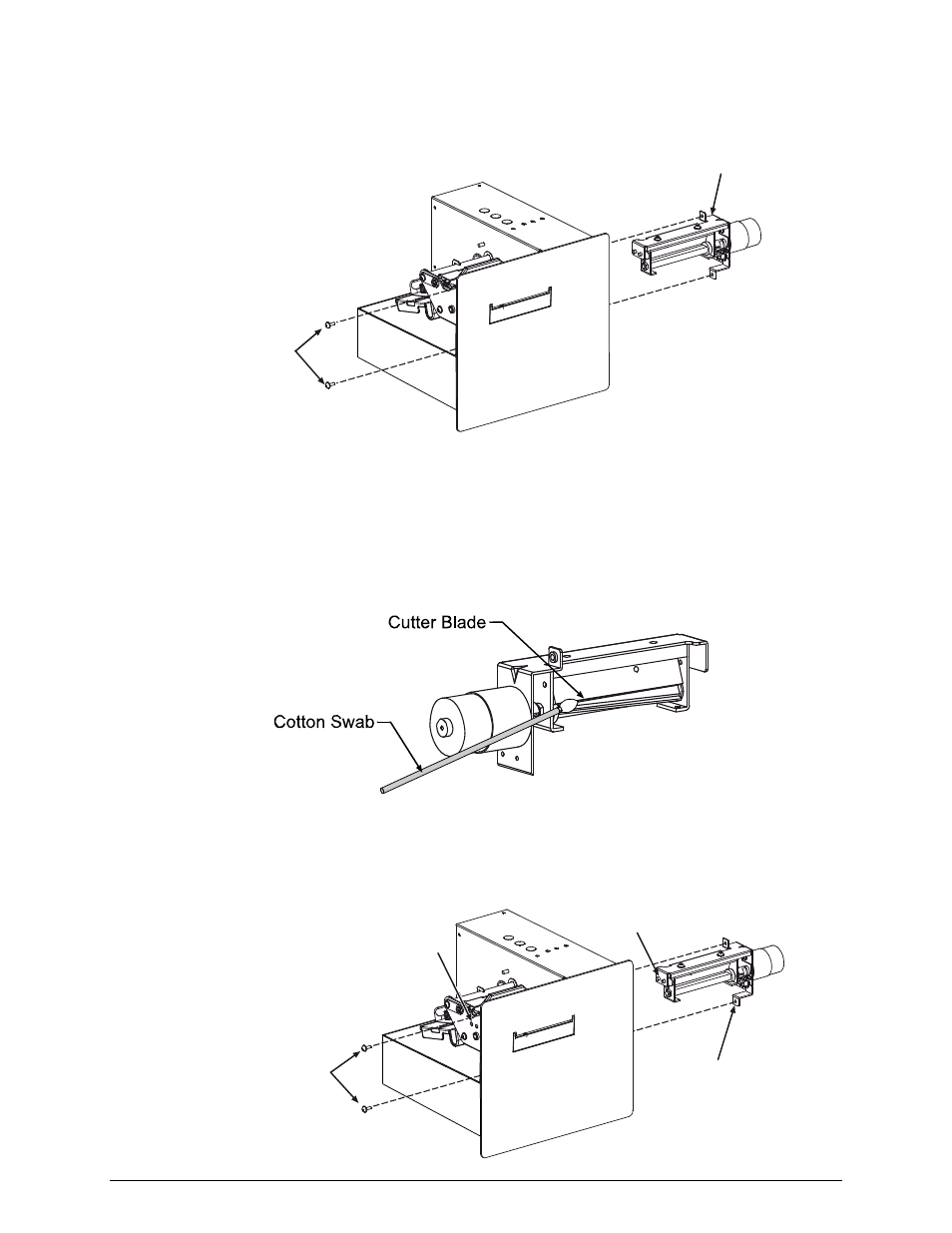

5. Unlock and raise the printhead. While supporting the Cutter Assembly, remove the two Mounting
Screws, and then carefully slide the Cutter Assembly out of the printer.
Cutter
Assembly
Mounting
Screws
6. Using a soft brush or compressed air, remove all debris from the printer and Ticket Door area.
7. Using a soft brush or compressed air, remove all debris from the Cutter Assembly. Then, using a
cotton swab dampened with isopropyl alcohol, clean the Cutter Blade surfaces until all build-up is
removed.
8. Carefully slide the Cutter Assembly into the printer. Ensure that the Guide Pins on the assembly fit
into the Locator Holes in the printer, and then secure the cutter in place using the two Mounting
Screws.
Cutter Assembly
Mounting Screws
Guide
Pins
Locator
Holes
