Datamax-O'Neil S-Class SV Cutter Option User Manual
Page 4
2

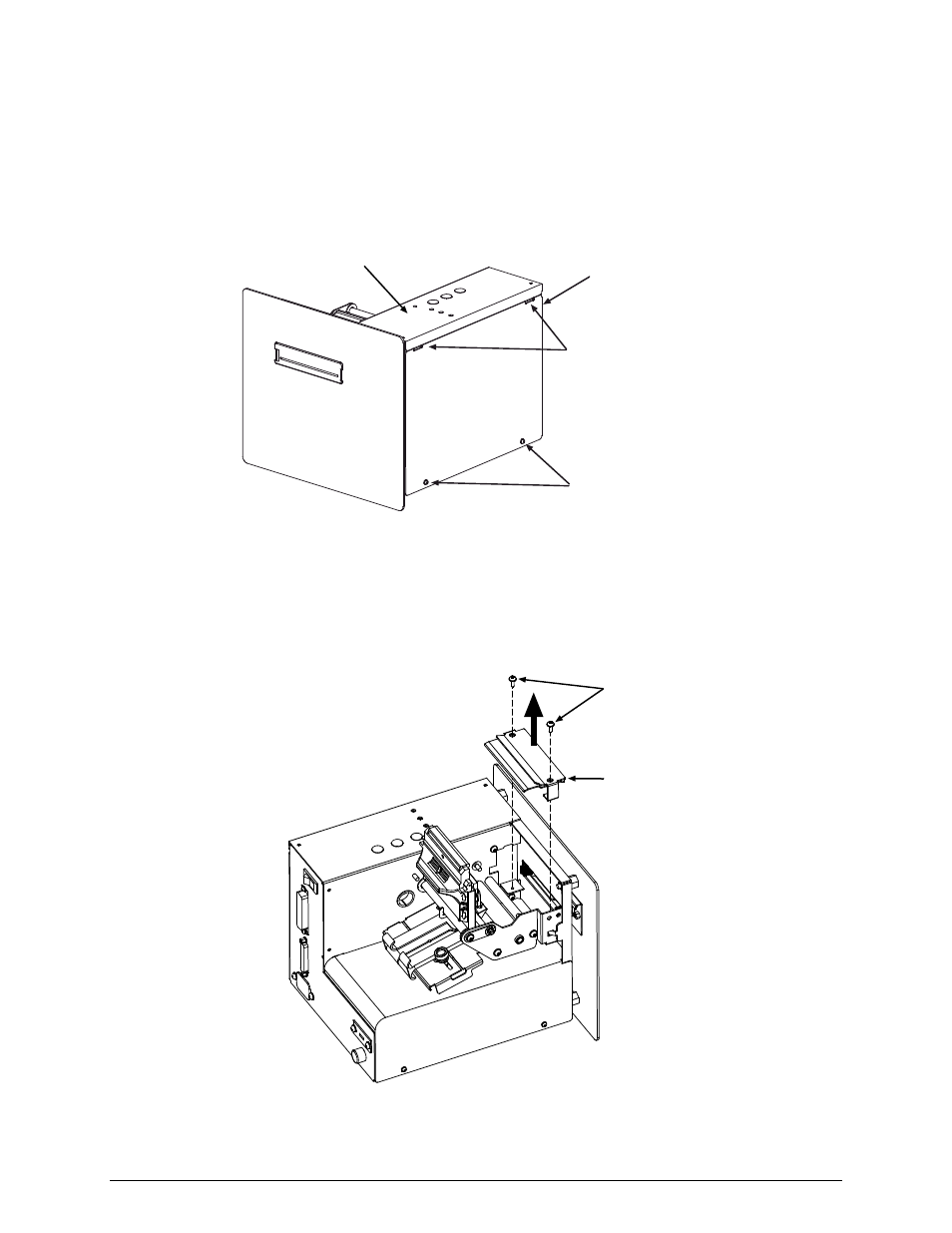

5. Remove the two Screws that secure the Electronics Cover to the printer.
6. Grasp the Electronics Cover from bottom and, while pulling down slightly to free the Catches,
remove the cover.
Screws
Catches
Electronics Cover
Front Panel
7. Unlock and raise the printhead. Remove the two Screws that secure the Tear Input Guide and then
remove the guide.
Tear Input
Guide
Screws
