Datamax-O'Neil S-Class SV Cutter Option User Manual
Page 6
4

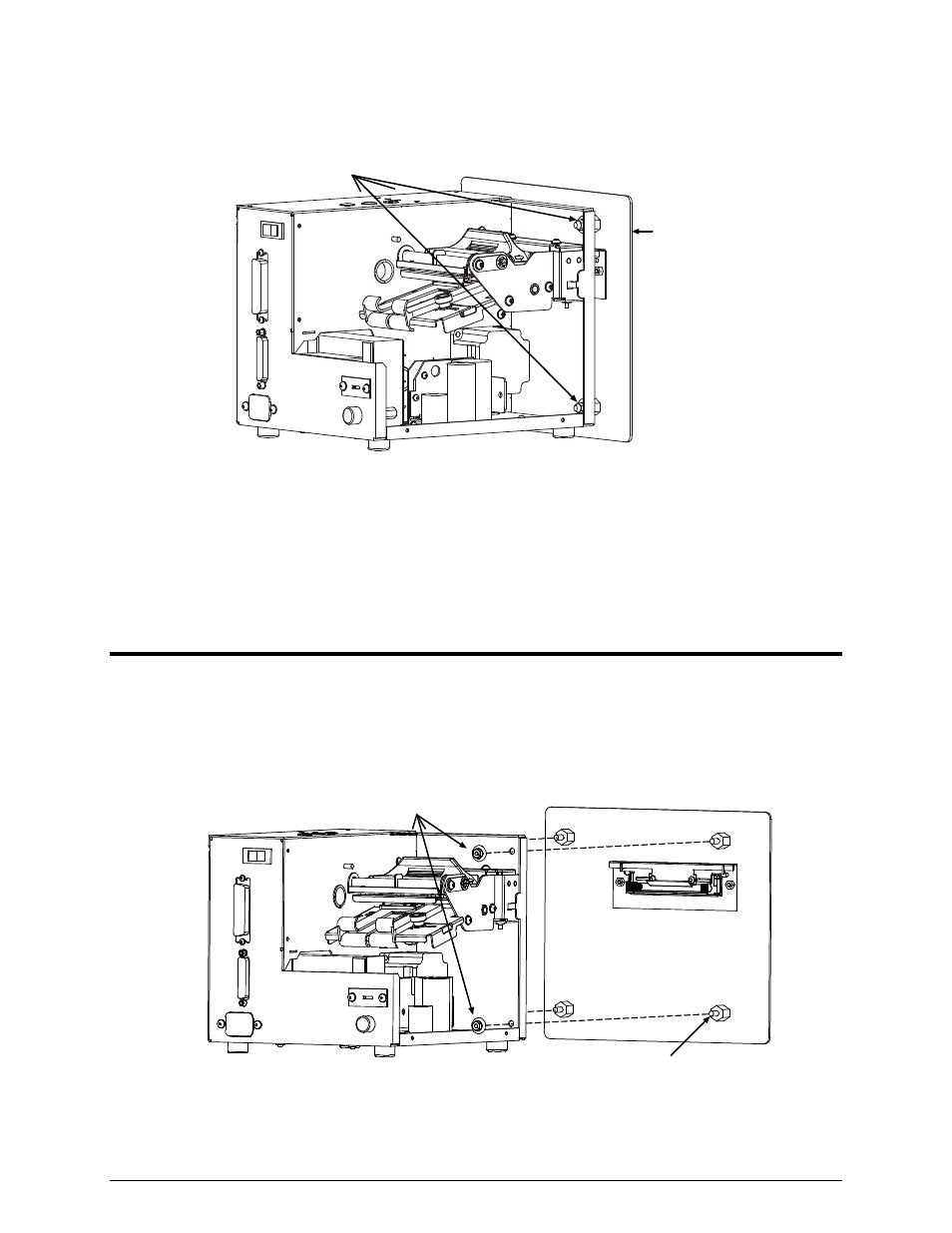

10. Remove the four Nuts that secure the Front Plate Assembly to the printer and then remove the
assembly. Proceed to Step B of this procedure.
Front Plate
Assembly
Nuts
(four total)
Step B: Installing the Cutter Assembly
1. Insert the Standoffs on the Front Plate Assembly (Item 3) into the printer, and secure the assembly
using the four Nuts removed in Step A-10, above.
Front Plate
Assembly
Nuts
(four total)
Standoffs
