Datamax-O'Neil S-Class SV Cutter Option User Manual
Page 3
1

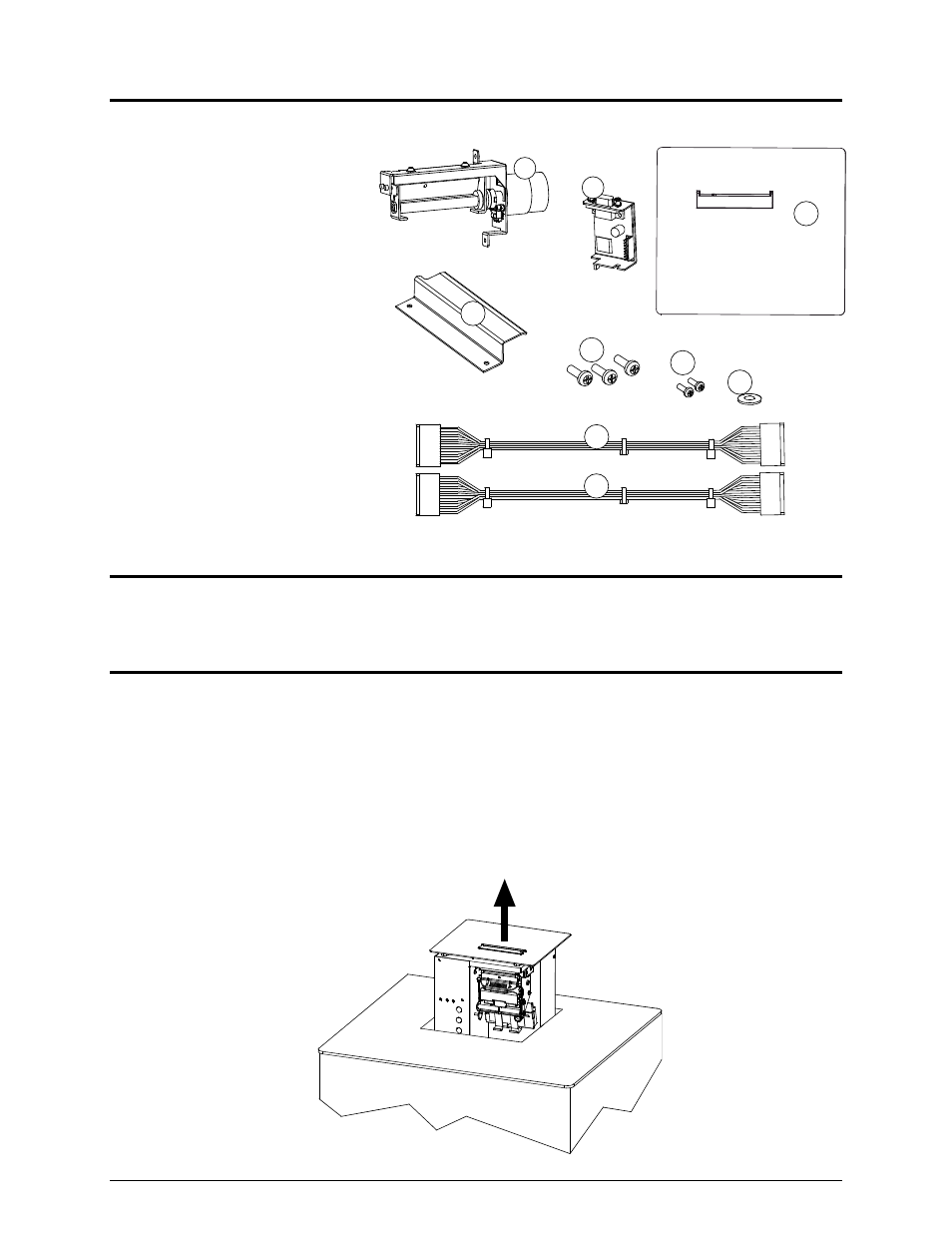

Contents of this Cutter Kit
This kit contains the following items:
Cutter Assembly
Cutter Circuit Card Assembly
Front Plate Assembly
Cutter Input Guide
Screw (3)
Screw, with star washer (2)
Washer
Cutter Cable (Non-ROHS)
Cutter Cable (ROHS)
3
8
2
1
4
7
5
6
9
Tools
Required
You will need a Phillips screwdriver and an 8 mm Nut Driver to install this option.
Step A: Preparing the Printer
1. Turn ‘OFF’ the power switch and unplug the AC power cord.
2. Disconnect the interface cable(s).
3. Remove any installed ticket stock and lock the printhead.
4. Carefully raise the printer from the bottom, guiding it out of the enclosure. Place the printer on a firm,
stable work surface.
