Datamax-O'Neil S-Class SV Cutter Option User Manual
Page 14
12

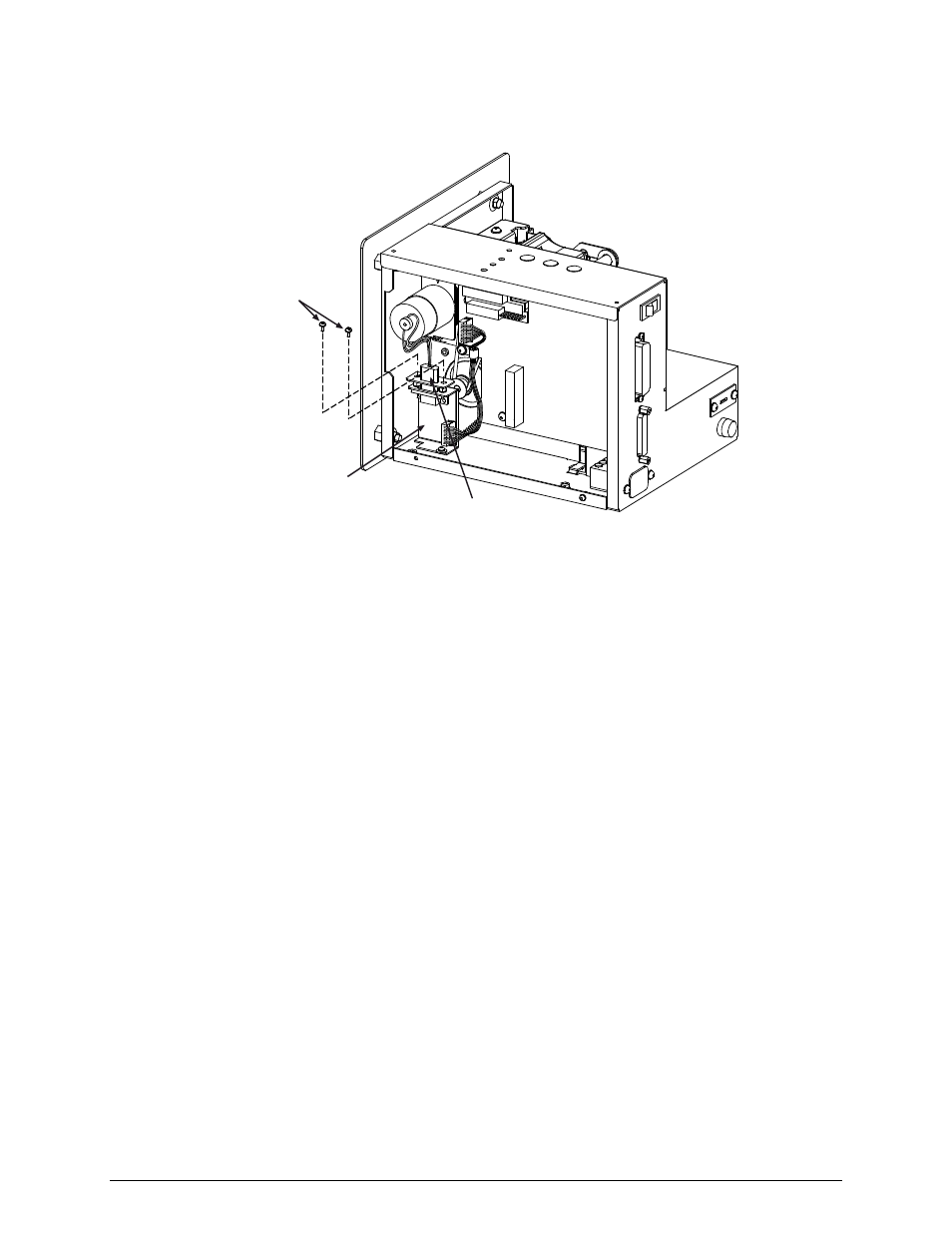

9. Reconnect P1 to the Cutter CCA and secure it with the two previously removed screws.
Cutter CCA
Screws
P1
10. Replace the electronics cover and secure with the two previously removed screws.
11. Lower and lock the printhead assembly then gently lower the printer into its enclosure.
12. Reconnect the interface cable(s). Plug in the AC power cord and turn ‘On’ the power switch. This
completes the cleaning procedure. Reload ticket stock.
