Analog Way Pulse LE User Manual

Page 21

The

Pulse LE rear panel is equipped with 6 universal digital and analog inputs. Inputs #1 through #4 (4) are

universal analog inputs. Inputs #5 & #6 share a DVI-D signal and a universal analog signal (plug the shipped

Analog Way DVI/DB15 adaptor cable to use DVI-D and analog signals simultaneously).

The Main and Preview (7) outputs will allow for the

Pulse LE high resolution digital and analog signals to be

viewed on screen and/or on a preview monitor (see also Output Specifications in this chapter).

Finally, the audio in and output card will let users trigger audio with any source, accurately balance or tweak

sound sources and outputs.

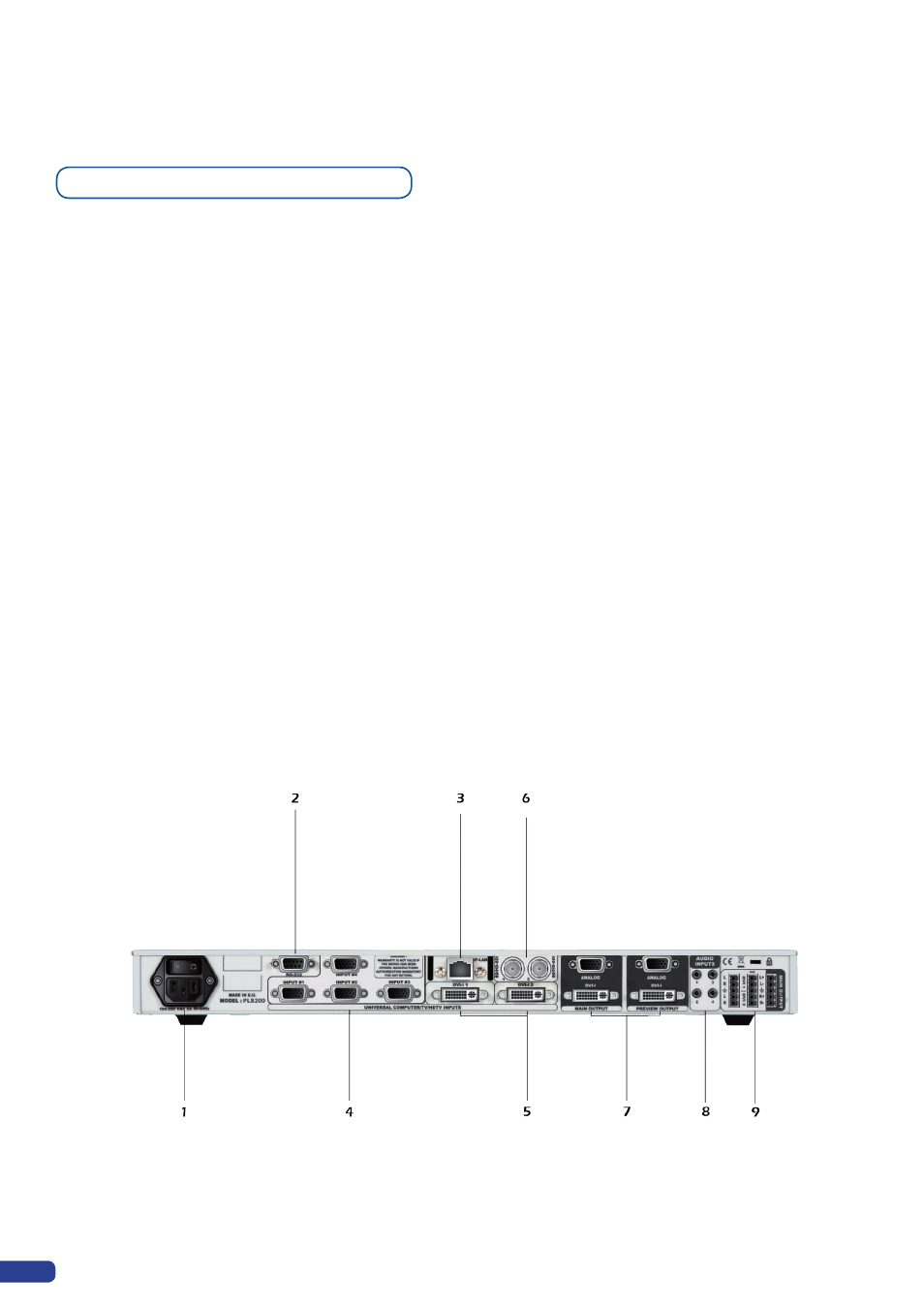

1 : AC outlet and On/off switch

2 : RS232 connector

3 : IP-LAN connector

4 : Universal Analog inputs

5 : DVI-D inputs

6 : HD-SDI inputs

7 : Main and Preview outputs

8 : Audio inputs

9 : Audio outputs

Overview

3-2. THE PLS200 REAR PANEL
