• ANALOG COMPUTER:

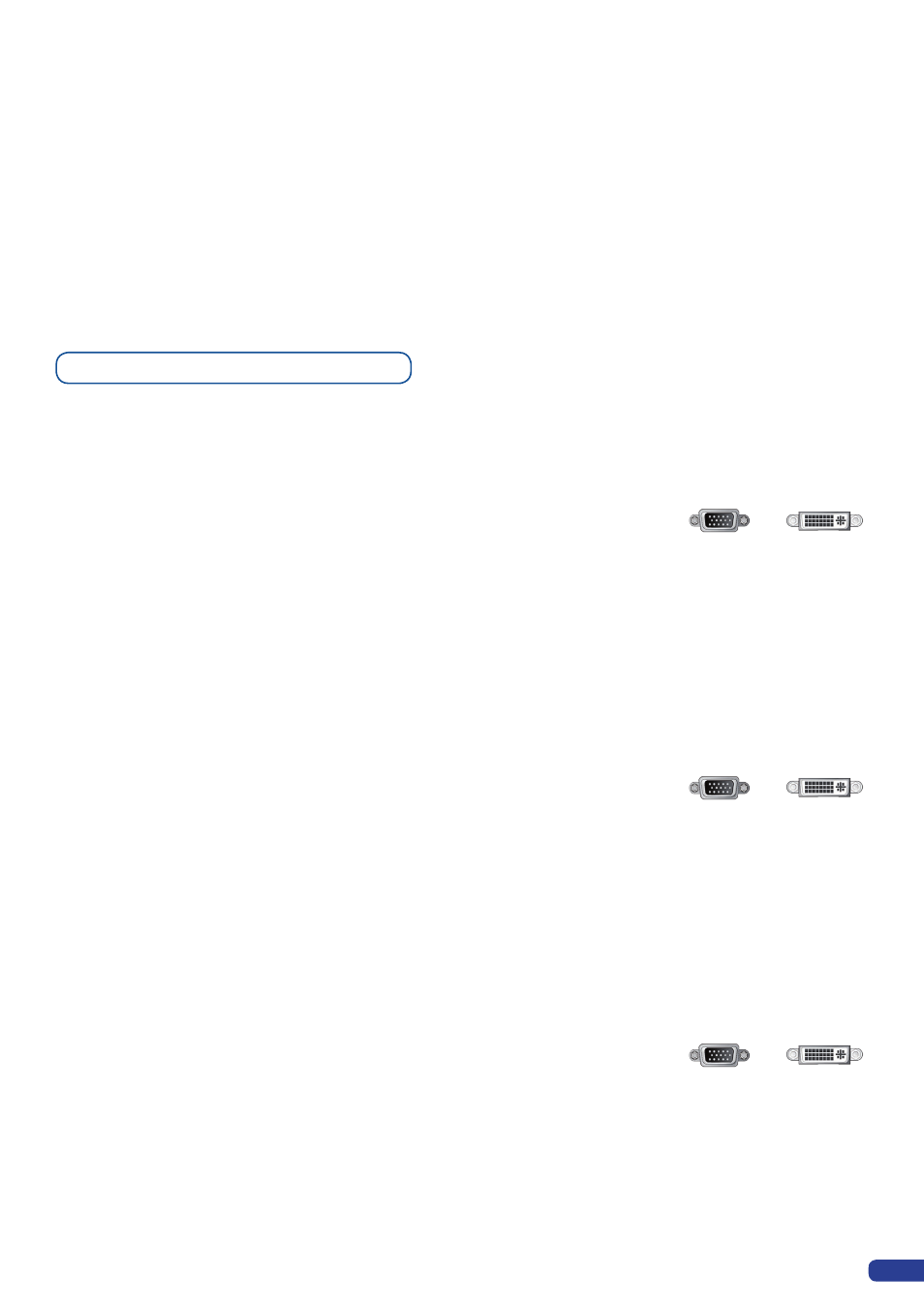

Connectors:
Inputs #1-#4: female HD15.
DVI Inputs #1-#2: female DVI-I (analog pins).
Line frequency: Up to 130 kHz (165 MHz Max pixel rate).
Resolution:
Up to 1600x1200 @ 165Mhz, 1920x1200px
(RB, Max V size: 1200px, Max H size 2048px).
Sync. types:
RGBHV, RGB/S, RGsB (Sync On Green).
Levels:
R, G, B = 0.7 Vp/p.
H & V Sync = TTL
Composite Sync = TTL and 0.3 V (negative).
SOG (Sync On Green) = 0.3 V.
Impedance:
R, G, B = 75 ohms.
H = 75 ohms or Hi-Z.
V = Hi-Z.
• RGB/S - RGsB VIDEO:
Connectors:
Inputs #1-#4: female HD15.
DVI Inputs #1-#2: female DVI-I (analog pins).
Frequency:
15.625 kHz - 50 Hz (625 lines).
15.734 kHz - 60 Hz (525 lines).
Levels:
R, G, B = 0.7 Vp/p.
SYNC. = 0.3 Vp/p or TTL (negative).
Impedance:
RGB = 75 ohms.
SYNC. = 75 ohms or Hi-Z.
• COMPONENT:
Connectors:
Inputs #1-#4: female HD15.
DVI Inputs #1-#2: female DVI-I (analog pins).
Frequency:
15.625 kHz - 50 Hz (625 lines).
15.734 kHz - 60 Hz (525 lines).
Levels:
Y = 1 Vp/p (0.7 V Luma + 0.3 V Sync.).
Cr / Pr & Cb / Pb = 0.7 Vp/p.
Impedance:
75 ohms.
A large choice of cables and adaptors are compatible with the
Pulse LE. To find which are to be used in your setup, please refer to
the Hardware Specifications chapter. Please contact your distributor
for a list of available cables and connectors for your
Pulse LE.
or
or
or
2-4. CABLE AND ADAPTOR INFORMATION
2-5. HARDWARE SPECIFICATIONS
Input specifications
