Installation Instructions
PXR
5

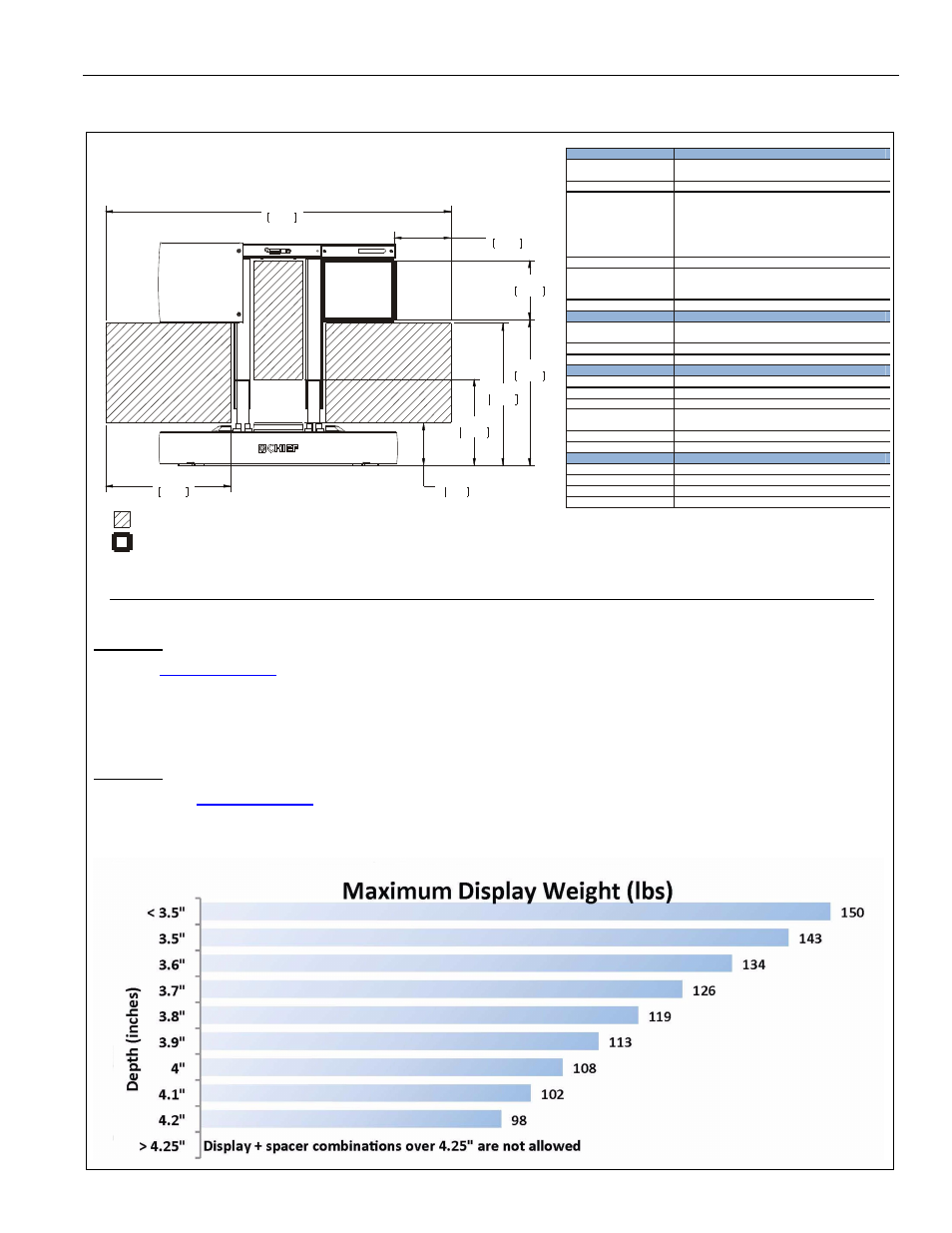

DIMENSIONS...continued
29.50
749.3
7.38
187.3
10.70
271.8
12.15
308.5
12.40
315.0
4.88
123.8
5.10
129.5
ARMS AND HEAD UNIT HIDDEN FOR CLARITY
PRE-INSTALL SETUP FOR WALL MOUNTING
SEE PAC502 INSTRUCTIONS FOR INSTALLING IN AN IN-WALL BOX
KEEP THESE AREAS CLEAR. DO NOT PUT OUTLETS,
CORDS, OR ANY OTHER DEVICES IN THESE AREAS
THIS AREA IS THE RECOMMENDED LOCATION TO
PLACE AN OUTLET AND FEED DATA LINES.
3.62
91.9
MECHANICAL
MOUNTING PATTERNS: MINIMUM (H x V) 200 X 100
MAXIMUM (H x V) 700 X 450
WEIGHT CAPACITY: Varies dependent on depth of display--150 LB (68.0 KG) MAX
EXTENSION:
PAN:
TILT:
UP TO 27" AWAY FROM THE WALL
MINIMUM: 4.5" FLUSH MOUNTED, 1.0" WHEN RECESSED
USING A PAC 502
UP TO 45° TO THE LEFT AND RIGHT (90° TOTAL)
UP TO 12° DOWN (DEPENDING ON SCREEN SIZE)
NOISE LEVEL* 52 dBA @ 36" WITH MAX LOAD
MAX SPEED* EXTEND/RETRACT:
.75" / SEC
PAN: 4.5° / SEC
TILT: 3.0° / SEC
POWER
MAX CONSUMPTION:
STANDBY CONSUMPTION:
85 W
<2 W
POWER SUPPLY: 100-250 VAC, 50/60 Hz
FEATURES
PRESET HOME POSITION
4 PROGRAMMABLE POSITIONS
CONTROLLABLE VIA RS485 COMMUNICATIONS
BUILT-IN IR REPEATER (TRANSMITTER NOT INCLUDED)
SIMULTANEOUS AXIS MOVEMENT
DIMENSIONS
PACKAGE SIZE 36" x 24" x 7.75"
PACKAGE WEIGHT APPROX. 80 LB
PRODUCT SIZE 29.25" x 19.2" x 4.5"
PRODUCT WEIGHT APPROX. 65 LB
* PERFORMANCE MAY VARY
TO VERIFY DISPLAY IS COMPATIBLE WITH PXR
Method 1
1.
Go to
2.
Select manufacturer and model of display in MountFinder™.
3.
Click "Search".
NOTE:
If PXR is listed in search results, display is compatible with PXR.
Method 2
1.
If access to
available, verify that the display mounting pattern is less than 700mm x 450mm, and
use the chart below to determine if display is compatible.
NOTE:
Not all displays that meet this criteria will be compatible with the PXR.
DIMENSIONS: INCHES
[MILLIMETERS]
