PXR Installation Instructions
16

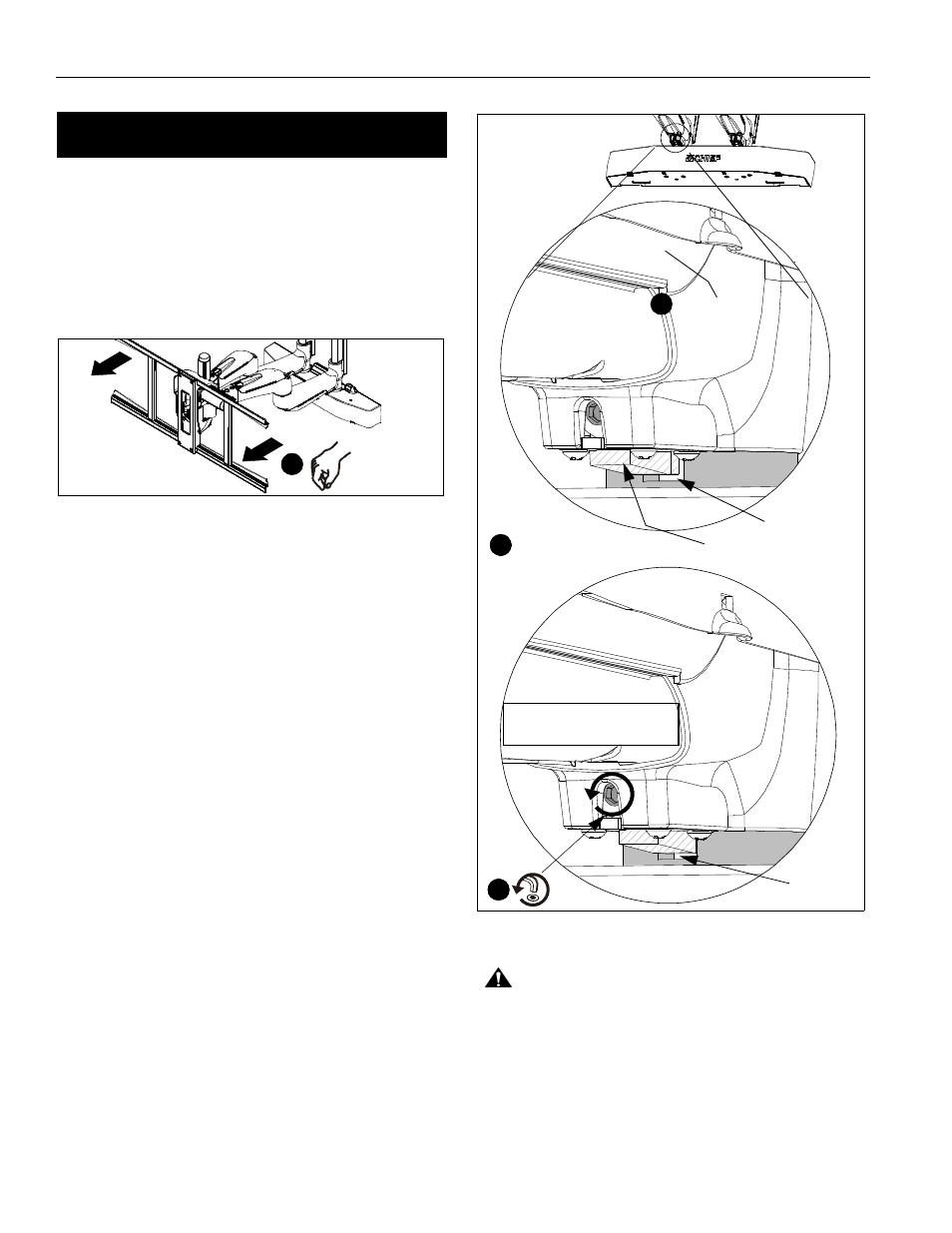

1. Carefully pull arms out from wall. (See Figure 24)
2. Open cable management covers on bottom of PXR arms.
3. Engage PXR arms by lining up pin with opening and using
9" hex head wrench (Y) in opening on bottom of each arm.
(See Figure 25)
NOTE: Engage arms by turning fastener to the LEFT.
4. Close cable management covers on bottom of PXR arms.
Figure 24
Figure 25
CAUTION: PXR SHOULD ONLY BE MOVED USING
REMOTE CONTROL!! After the PXR arms have been
engaged, do NOT move PXR by hand!
ARM ENGAGEMENT
1
3 x 2
NOTE: ENGAGE PIN
BY TURNING TO LEFT.
Line up pin
with opening
Pin
Opening
3
Pin
engaged
in opening
Open cable
management
cover 2
