Installation Instructions PXR
19

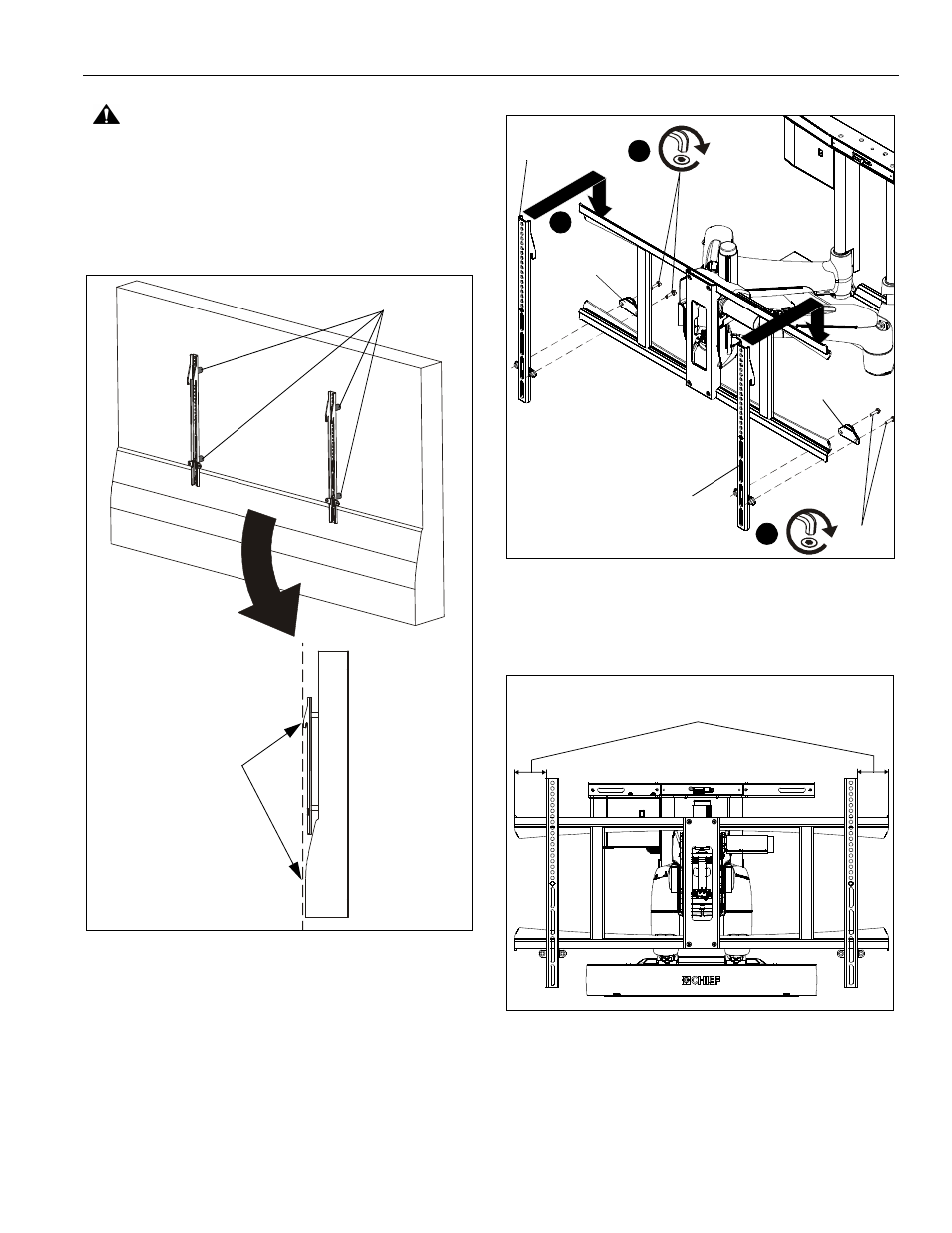

CAUTION: THE INTERFACE BRACKETS ATTACHED TO
THE DISPLAY MUST BE THE FURTHEST POINT OF
PROTRUSION FROM THE DISPLAY BACK. If the display
has any protrusions from the back it may be necessary to add
spacers during attachment to the interface brackets, so that
interface brackets are furthest protrusion from back of PXR.
(See Figure 30)
Figure 30
Hanging Display on PXR
1. Hang display onto the PXR, ensuring that top hooks of
interface brackets (V) are hooked over the PXR top rail.
(See Figure 31)
Figure 31
IMPORTANT ! : Do NOT operate PXR with display off-
center. Measure to verify that display is centered on the
PXR. (See Figure 32)
Figure 32
(L or M) x 4
Interface bracket is
furthest protrusion
from back of display
(V)
1
(W)
2 (U) x 2
(W)
(Display removed for clarity)
(V)
2 (U) x 2
(view from front of PXR)
Verify this measurement
is the same on each side.
