displayed when Wheel Runout or Rim Runout is out of tolerance.
displayed when both Wheel Runout and Rim Runout are within tolerance.
Use of the wheel balancing machine

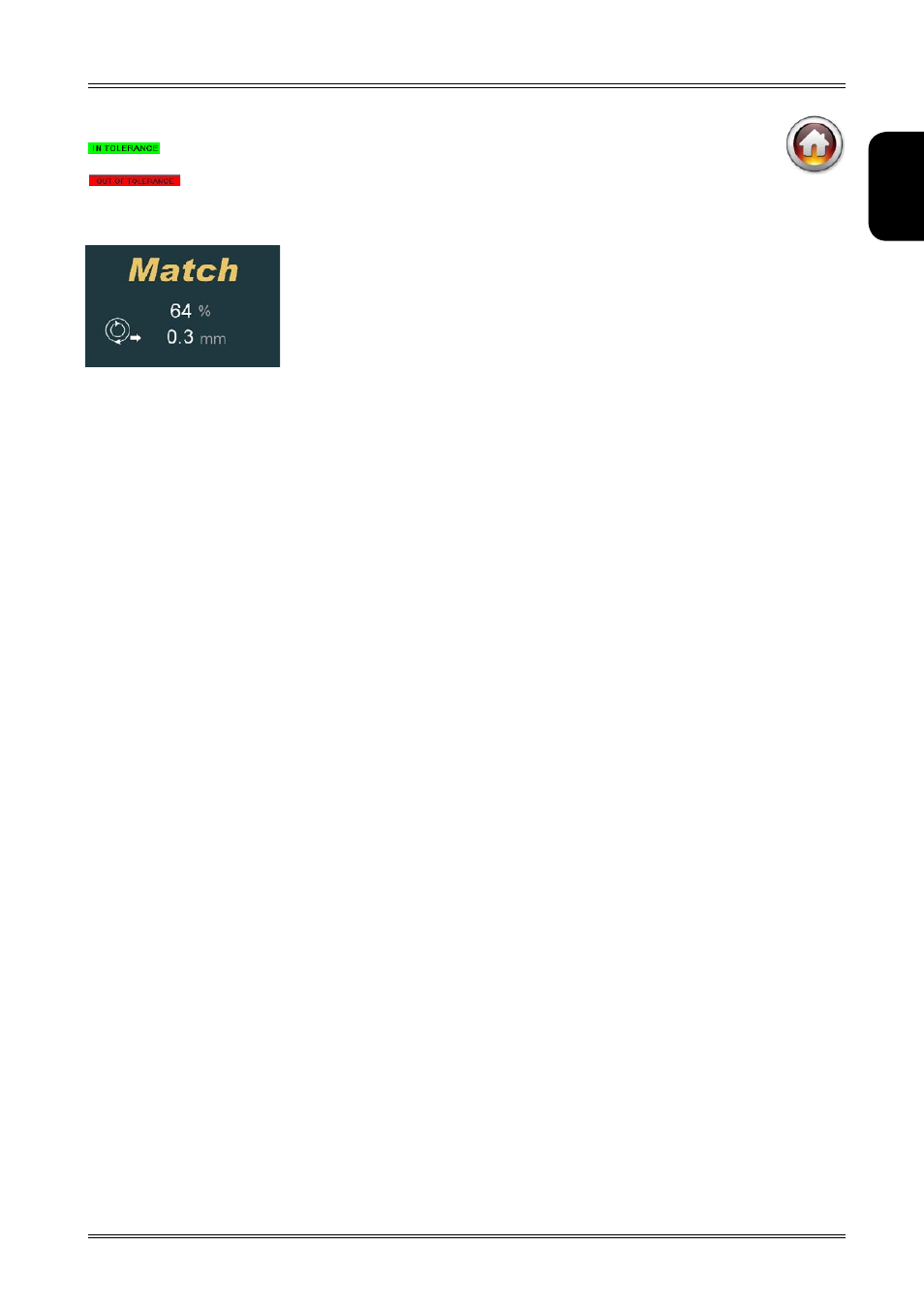

Percentage wheel runout reduction
Estimated residual wheel runout after matching
The rotation symbol and the residual wheel runout value are shown in red if the estimated value after matching is out
of tolerance with respect to the value set in the runout setup parameters.
6.15.1.2.1 When to perform matching
It is advisable to perform matching if the wheel runout value is displayed on a red background and the residual wheel
runout value is displayed in the Match box on a green background.
6.15.1.2.2 How to perform matching
▪ Turn the wheel and mark the tyre and the rim with a piece of chalk at the two points indicated in the graph.
▪ Turn the tyre on the rim until the two marks coincide.
