30
Use and Maintenance Manual Rev. 12-2012
ENGLISH
Use of the wheel balancing machine

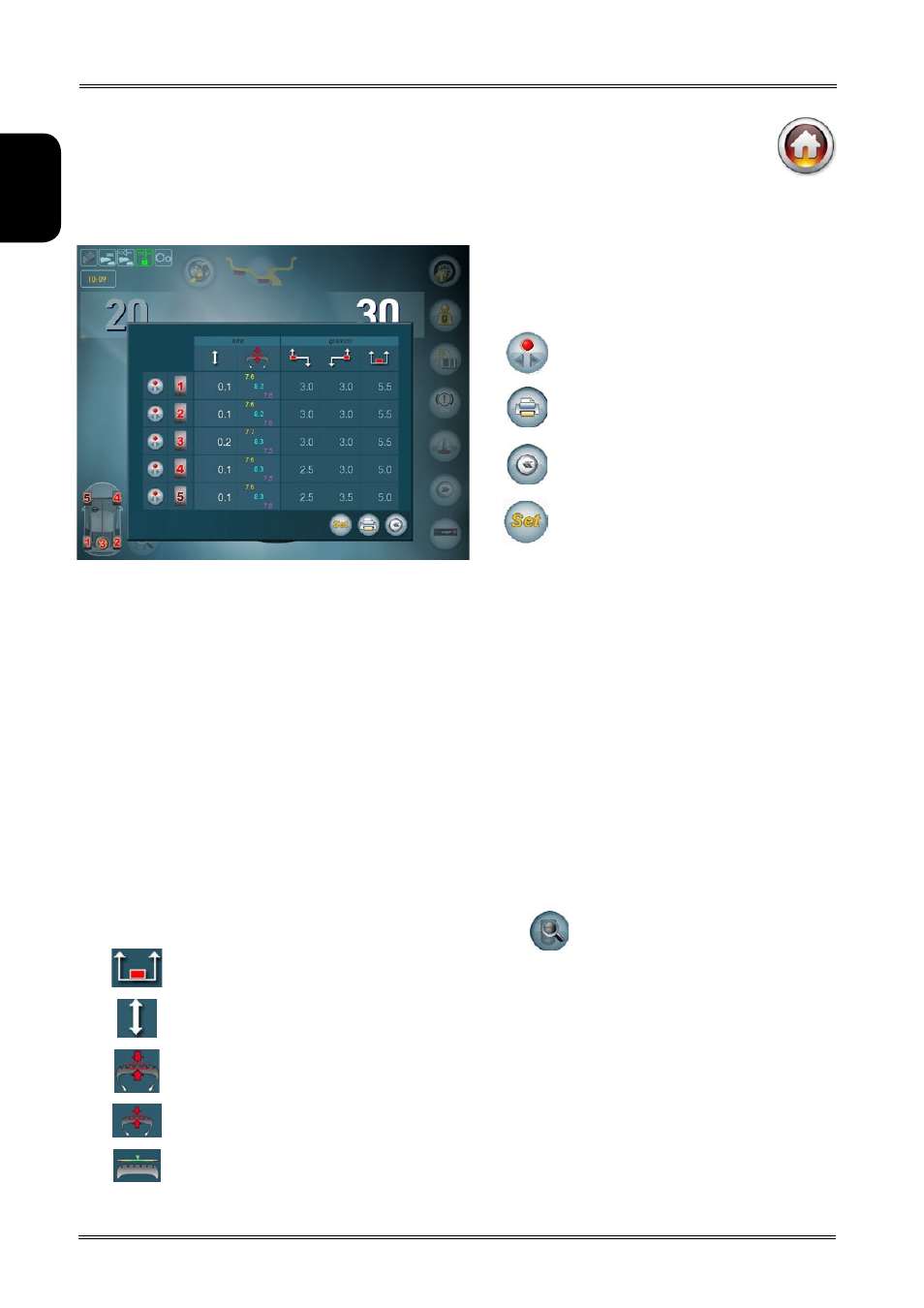

6.10 TYRE SET
Selects any one-way direction of the wheel
Prints the tyre set values
Return to main screen
Manual wheel position setting
This function allows balancing the four wheels of a vehicle, plus the spare wheel if necessary, and obtaining information
on how to mount them in order to reduce to a minimum the vibrations due to the residual eccentricity of each wheel.
The TYRE SET function can be enabled or disabled from the MENU; to best use this function, proceed as follows:
1. Prepare adhesive symbols to identify the wheels.
2. Mount the first wheel, measure the dimensions, balance it and identify it with the number 1.
3. Dismount the wheel and mount the next one, close the guard and balance the wheel without acquiring the
dimensions again.
4. Repeat step 3 for the remaining 3 wheels, plus any spare wheel, each time identifying the wheel with a progressive
number from 2 to 5.
5. Each time the spindle is opened, the wheel balancing machine indicates the best way to mount the wheels balanced
up to that point. On the left-hand side of the screen, a stylized vehicle is displayed with the four tyres plus the
spare wheel; at each spin, the number of the wheel to be mounted in each position is indicated on each of them
(right/left front/rear axle).
6. The procedure can be reset by measuring the dimensions like for a new wheel. If the spindle is incorrectly opened,
the balancing sequence is interrupted and consequently the end result will be incorrect.
7. To view a summary table with the wheel values, press the button :
Static residual unbalance
Radial runout
Tread measured as one value
Tread measurement
Wheel taper
