I 0645 45 GB

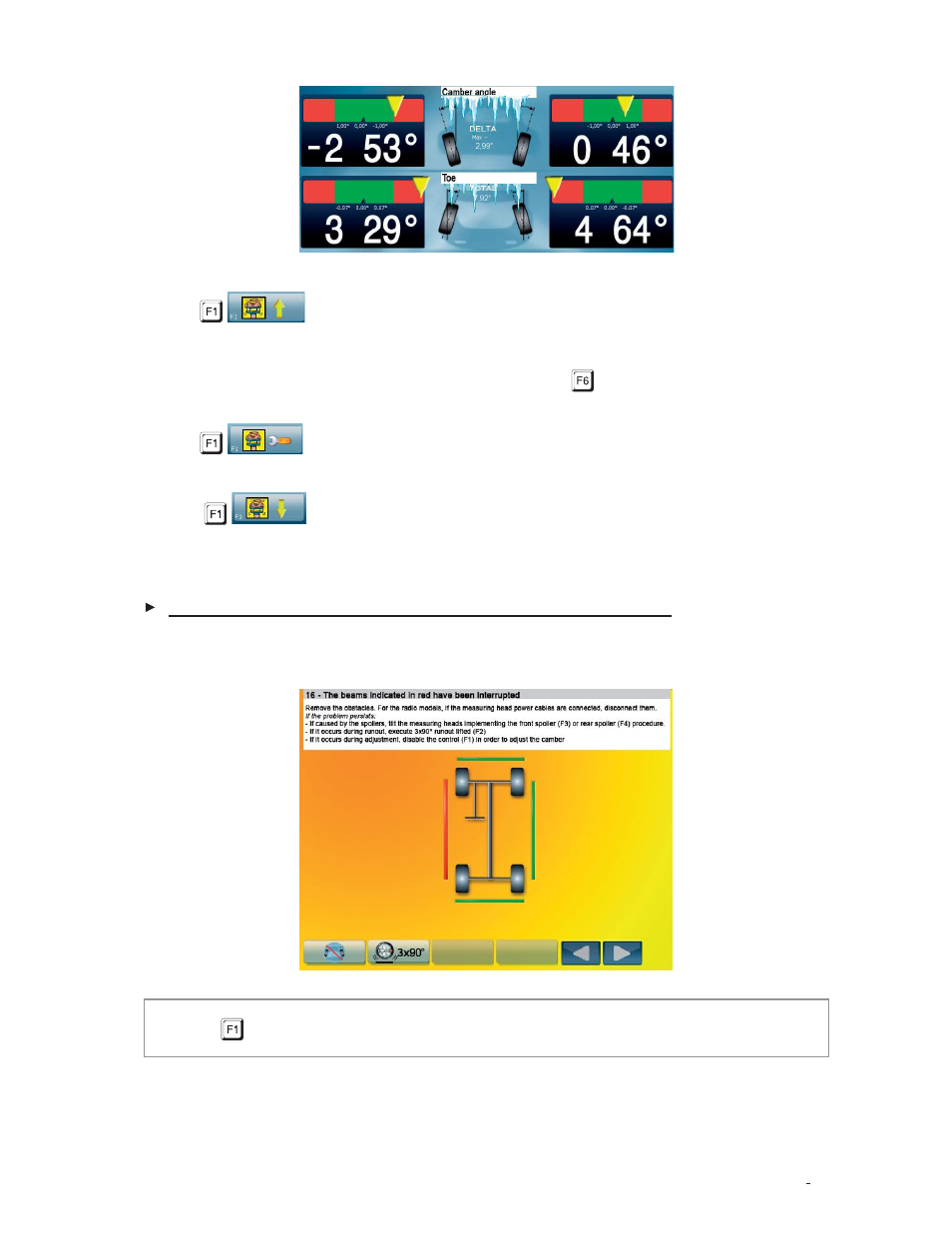

Lift the vehicle or steer the wheels 2.
Press 3. to unfreeze the measurements
Adjust the angles 4.
If you are on the Rear Adjustment page and wish to do so, press 5. to go to the Front Adjustment page
and adjust the front angles.
Press 6. to again freeze the measurements
Lower the vehicle or straighten the wheels 7.
Press 8. to again unfreeze the measurements
If you go from the Rear Adjustment page to the Front Adjustment page with the vehicle lifted, for easier ope-
ration it is suggested to level the steering wheel and position the steering lock before lifting the vehicle.
9.8 - Adjustment in case of interruption of the infrared rays
If you are unable to adjust without standing between the optical sensors, and the warning that the rays are
interrupted appears, you can disable the message in order to adjust the camber.
From the page where the “rays interrupted” warning is shown:
: to disable the “rays interrupted” warning
