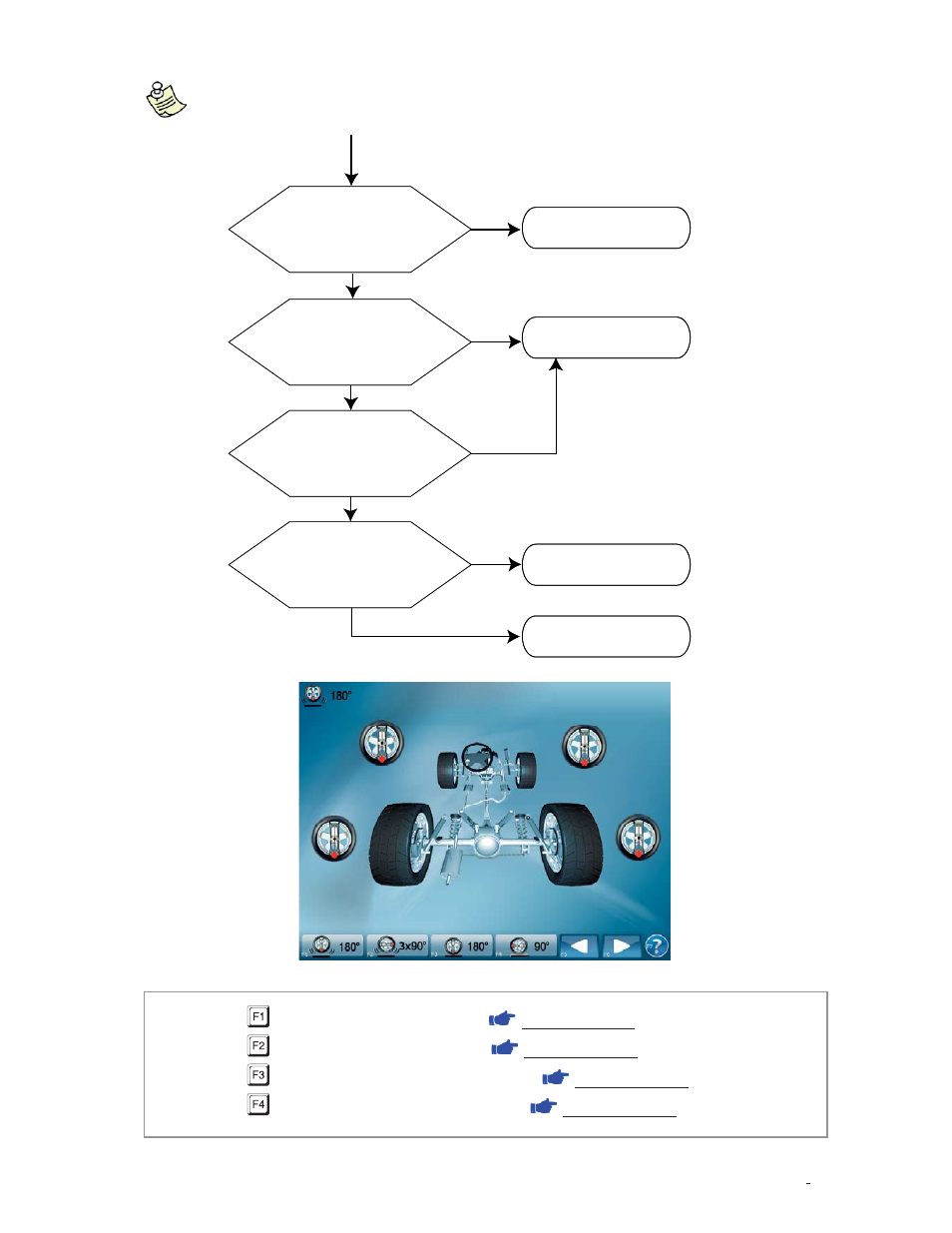

Scheme to follow to select the most suitable runout method:
Alignment sensors available ? 3 x 90° LIFTED
Is the car lift long enough and the
vehicle light enough for the
runout method on the ground?
Are there often wheel steering
errors during movement when exe-
cuting the runout methods
on the ground?
180° LIFTED
Is the car lift long enough for the
180° runout on the ground ?
90° ON THE GROUND
180° ON THE GROUND
START
NO
YES
NO
YES
NO
NO
: Selects 180° runout lifted see paragraph 6.3
: Selects 3x90° runout lifted see paragraph 6.4
: Selects 180° runout on the ground see paragraph 6.2
: Selects 90° runout on the ground see paragraph 6.2
