Tarp Bows

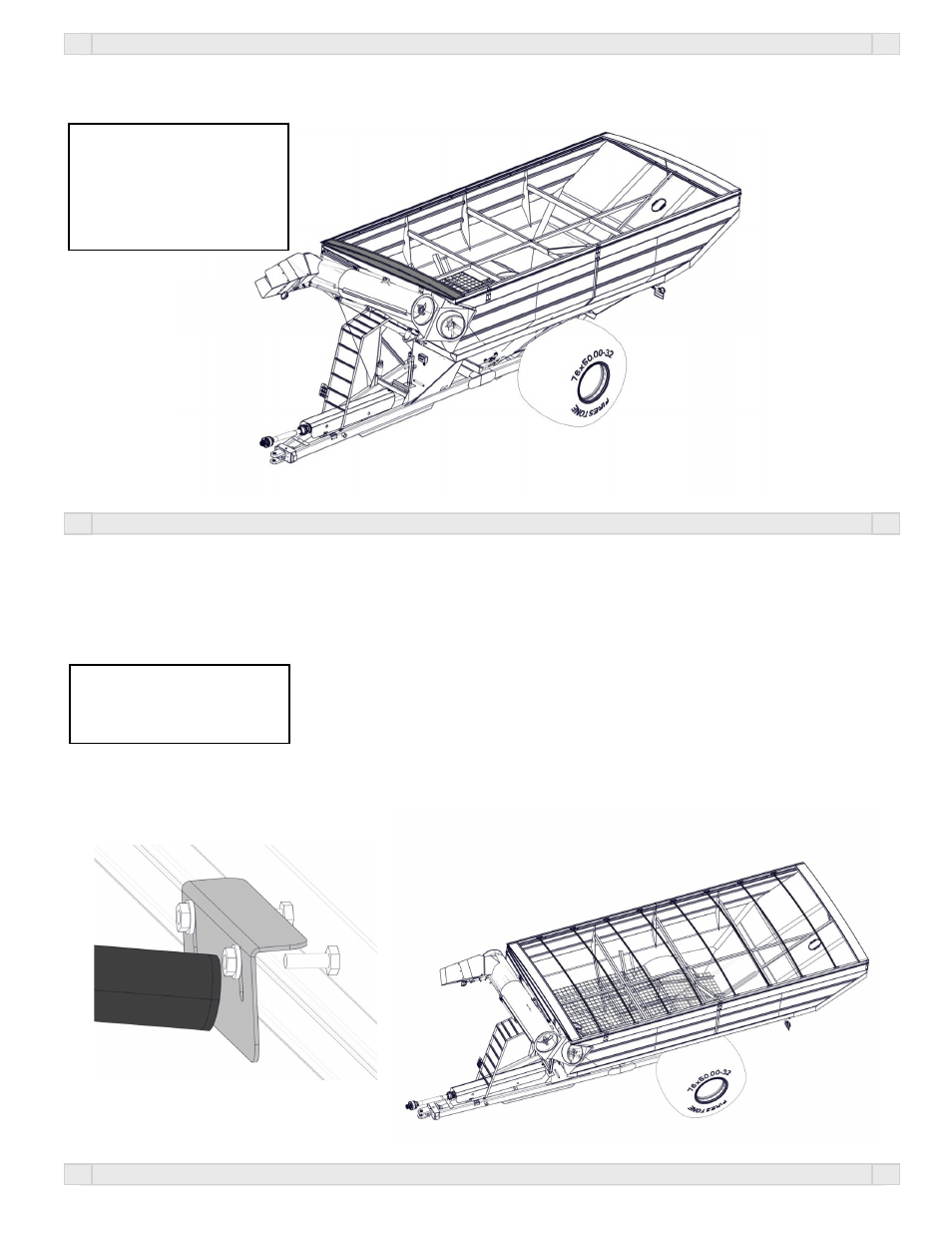

Install the Front Endcap
Install the front endcap assembly using the same procedure used to install the rear endcap assembly. The front
endcap does not use j-bolts therefore there are no holes for them. Do not forget the endcap brace. (See pg 6 & 7)
Install all of the tarp bows. Use (4) 1/4” x 3” hex bolts and (4) 1/4” serrated flange nuts for each bow. If your lip
lockis centered and there are no holes visible through your lip lock and sideboard, holes will need to be drilled
where ever there are slots in the lip lock. Use a 1/4” drill bit to accomplish this. This should only be the case on
later model grain carts.
Tools Needed:
1/4” Drill Bit
7/16” Drill Bit
7/16” Wrench & Socket
9/16” Wrench & Socket
Tools Needed:
7/16” Wrench & Socket
1/4” Drill Bit
