Rear Endcap Support Brace

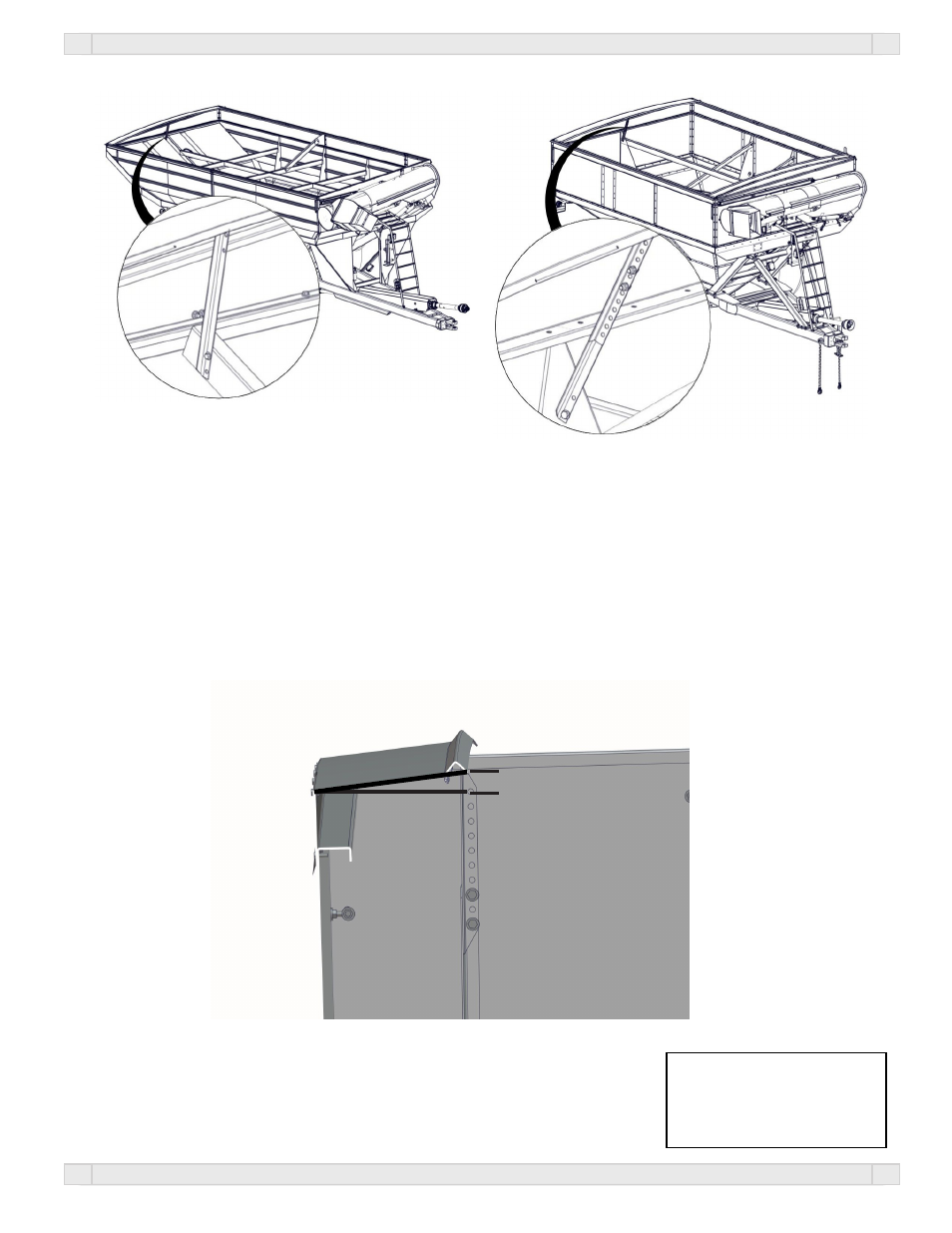

Install the Endcap Brace. The purpose of the endcap brace is to hold the inside of the endcap up approximatley
1” higher than the outside of the endcap. Drill a hole using a 1/4” drill bit first followed by a 7/16” drill bit. The
hole should be place onto the nearest crossbrace which is welded to the shell body. The hole should be located
somewhere between the middle of the endcap and the inside of the endcap. There are two braces that can be used
to support the endcap. Some carts will need one brace and some will need two. Use the combination that rais-
es the inside lip of the endcap 1” above the outside edge of the endcap. Use 3/8” x 1” SF Hex Bolts and Nuts to
attach the braces to the grain cart.
1”
Tools Needed:
1/4” Drill Bit
7/16” Drill Bit
9/16” Wrench & Socket
