J&M Roll Tarp GRAIN CARTS (June 2011 & newer) User Manual
Page 3
3

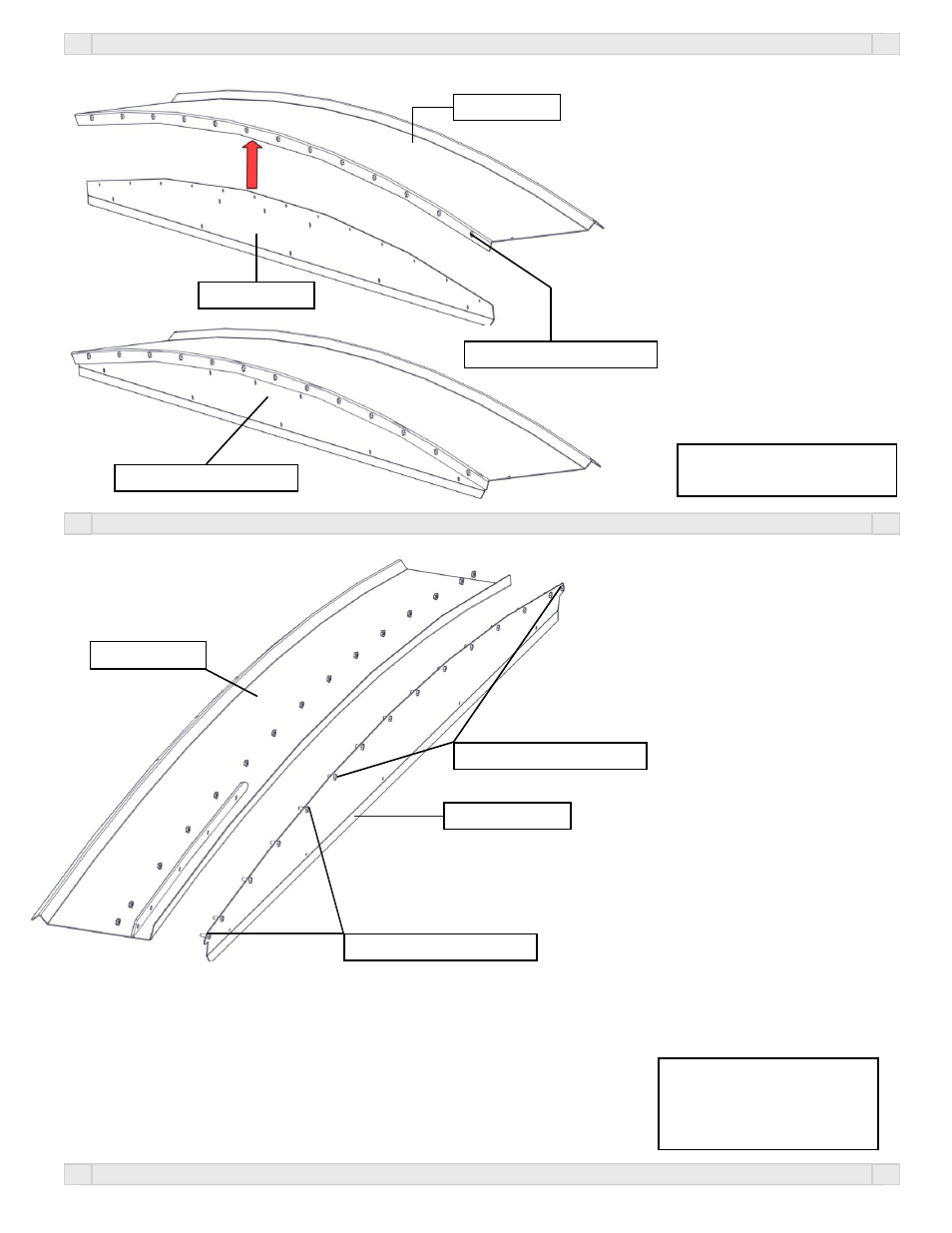

FRONT ENDCAP ASSEMBLY
REAR ENDCAP ASSEMBLY
Assemble the Rear Endcap
on the ground. Attach the
Rear Endplate to the Rear
Endcap using 1/4” x 1/2”
Serrated Flange Hex Bolts
and 1/4” Serrated Flange
Hex Nuts. Tighten the
hardware once finished.
Rear Endplate
Rear Endcap
Rear Endcap Assembly
1/4” x 1/2” SF Hex Bolts
Tools Needed:
7/16” Wrench & Socket
Assemble the Front Endcap
on the ground. Attach the
Front Endplate to the Front
Endcap using 1/4” x 1/2”
Serrated Flange Hex Bolts
and 1/4” Serrated Flange
Hex Nuts. For the last 5
holes use 1/4” x 5/8” Ser-
rated Flange Hex Bolts and
1/4” Serrated Flange Hex
Nuts. Before inserting the
last 5 bolts, the Nylon Riser
will need to be inserted
behind the the endcap. Drill
the last hole through the
endcap using a 1/4” drill
bit. Tighten the hardware
once finished.
Front Endplate
Front Endcap
1/4” x 1/2” SF Hex Bolts
1/4” x 5/8” SF Hex Bolts
Tools Needed:
7/16” Wrench & Socket
1/4” Drill Bit w/ Drill
