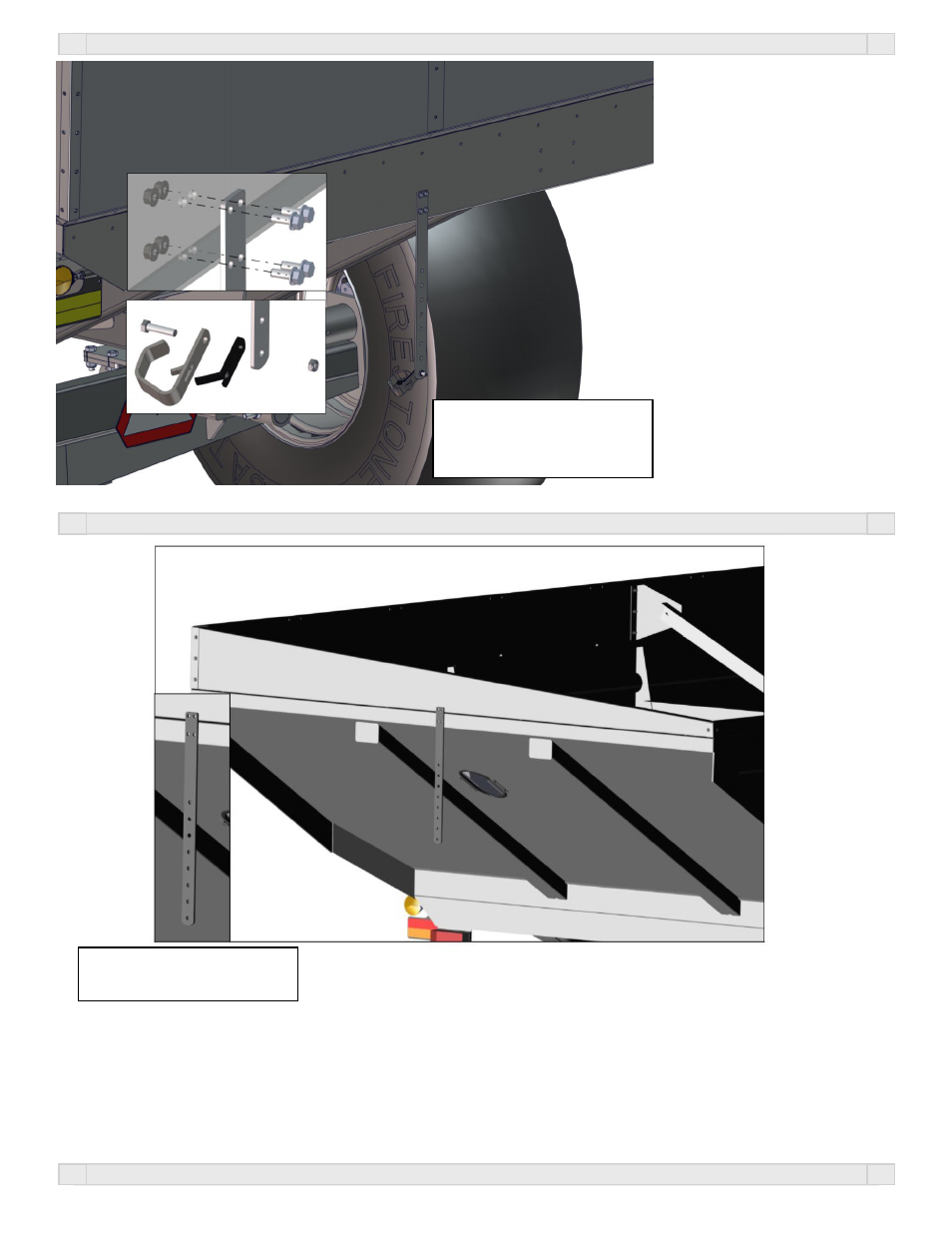

Hanger Bracket (International Series)
Install the roll tarp hanger
bracket. Use (4) M10-1.5 X 25
Gr8.8 YZ SF Hex Bolts and (4)
M10-1.5 Gr8.8 YZ SF Hex Nuts
to attach the hanger bracket to
the rear end panel brace. Tight-
en the hardware once installed.
Next install the the Hanger
Bracket Hook and the Rubber
Flap. Use a M12-1.75 X 50
Gr8.8 YZ Hex Bolt and a M12-
1.75 Gr8.8 YZ Nylon Locking
Hex Nut to attach the hook
and flap to the hanger brack-
et. Tighten the hardware once
installed.
Hanger Bracker (Standard U.S. Series)
Place the hanger bracket with the four hole pattern to the top in the center of the rear wall on the cart. Keep the
hanger bracket as low as possible on the rear wall. Mark the four holes then drill with a 7/16” bit.
Tools Needed:
7/16” Drill Bit w/ Drill
Tools Needed:
17 MM Wrench & Socket
13 MM Wrench & Socket
