J&M Roll Tarp GRAIN CARTS (June 2011 & newer) User Manual
Page 6
6

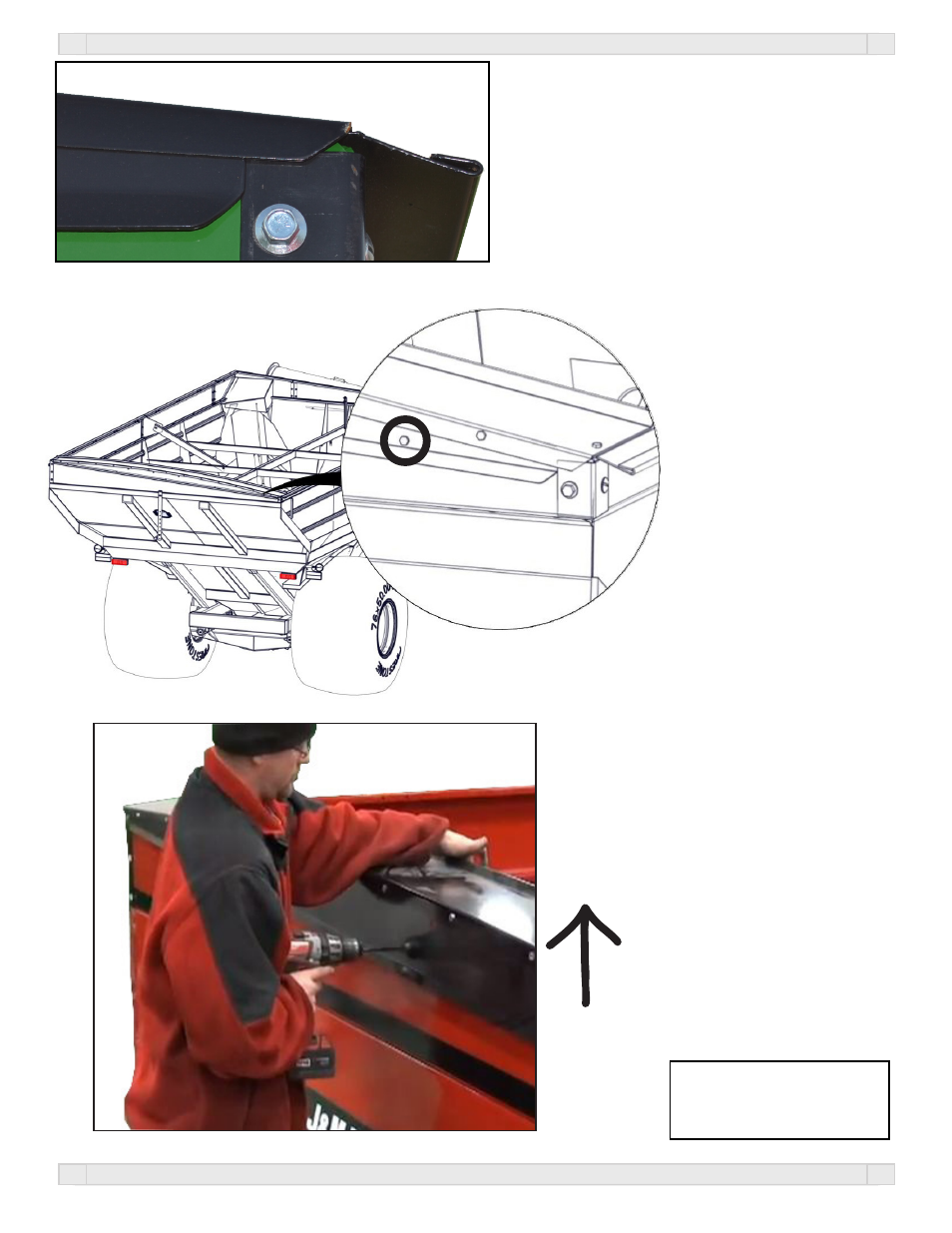

Install the Rear Endcap
Place the Rear Endcap Assembly onto
the back of the grain cart. Slide the
endcap to the right until it makes
contact with the corner bracket.
Corner
Bracket
Using a 1/4” drill bit, drill
through the hole closest to the
corner bracket. Once drilled,
fastend with a 1/4” x 1/2” SF
Hex Bolt and Nut.
Now drill the remaining holes
for the Rear Endcap. All the
holes that need drilled run hori-
zontly with the hole that was just
drilled.
While drilling, pull up on
the front of the endcap so the
faceplate will lie parallel with
the rear grain cart wall. Once
finished place 1/4” x 1/2” SF Hex
Bolts and Nuts in the remaining
holes. Tighten the hardware
once finished.
NOTE:While drilling, pull up
on the front of the endcap so
the faceplate will lie parallel
with the rear grain cart wall.
Tools Needed:
1/4” Drill Bit
7/16” Wrench & Socket
