J&M Roll Tarp GRAIN CARTS (June 2011 & newer) - Manual (Page 5)

5
Tightening Lip
Hanger Bracket Hardware (Standard U.S.Series)

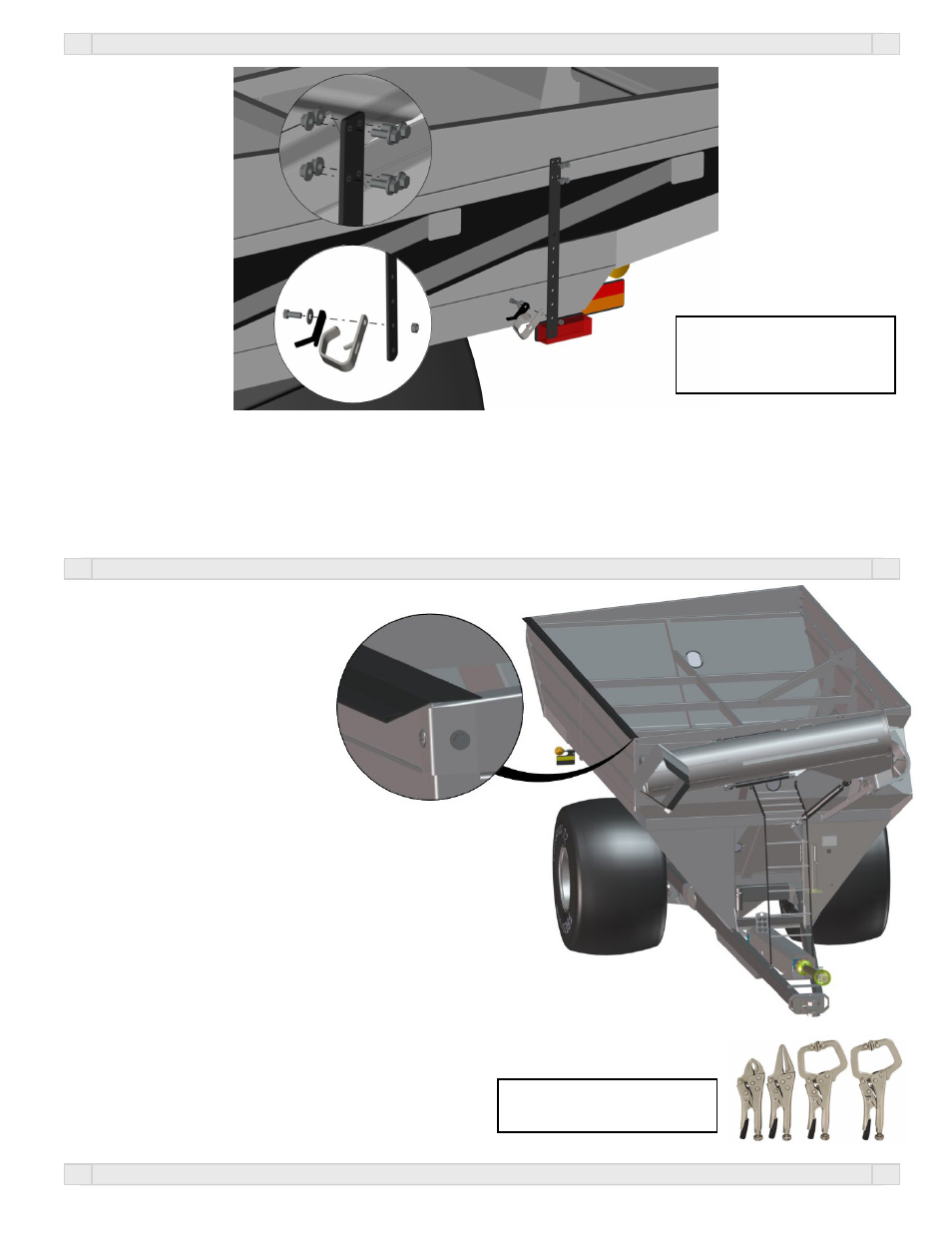

Install the roll tarp hanger bracket. Use (4) 3/8”-16 X 1” Gr5 Z SF Hex Bolts and (4) 3/8”-16 Gr5 Z SF Hex Nuts
to attach the hanger bracket to the rear end panel brace. Tighten the hardware once installed.
Next install the the Hanger Bracket Hook and the Rubber Flap. Use a 1/2”-13 X 1-1/4” Gr5 Z Hex Bolt and a 1/2”-
13 X 1-1/4” Gr5 Z Centerlock Hex Nut to attach the hook and flap to the hanger bracket. Tighten the hardware
once installed.
Install the Tightening Lip. Center
the tightening lip from the front
to the rear of the cart on the op-
posite auger side of the grain cart.
Depending on the length of your
grain cart, there maybe a total
of two tightening lips. If there is
two, position the inside edge of
each tightening lip to the center
of the grain cart. Make sure that
the tightening lip is flush to the
inside of the sideboard. . Holes
may already be pre-drilled for
installation or they may need to
be drilled out with a 1/4” drill
bit. Use a a pair of vise grips to
temporarily hold the tightening
lip in place. Bolts will be installed
in a later step.
Tools Needed:
9/16” Wrench & Socket
3/4” Wrench & Socket
Tools Needed:
C-Clamp Vise Grips
