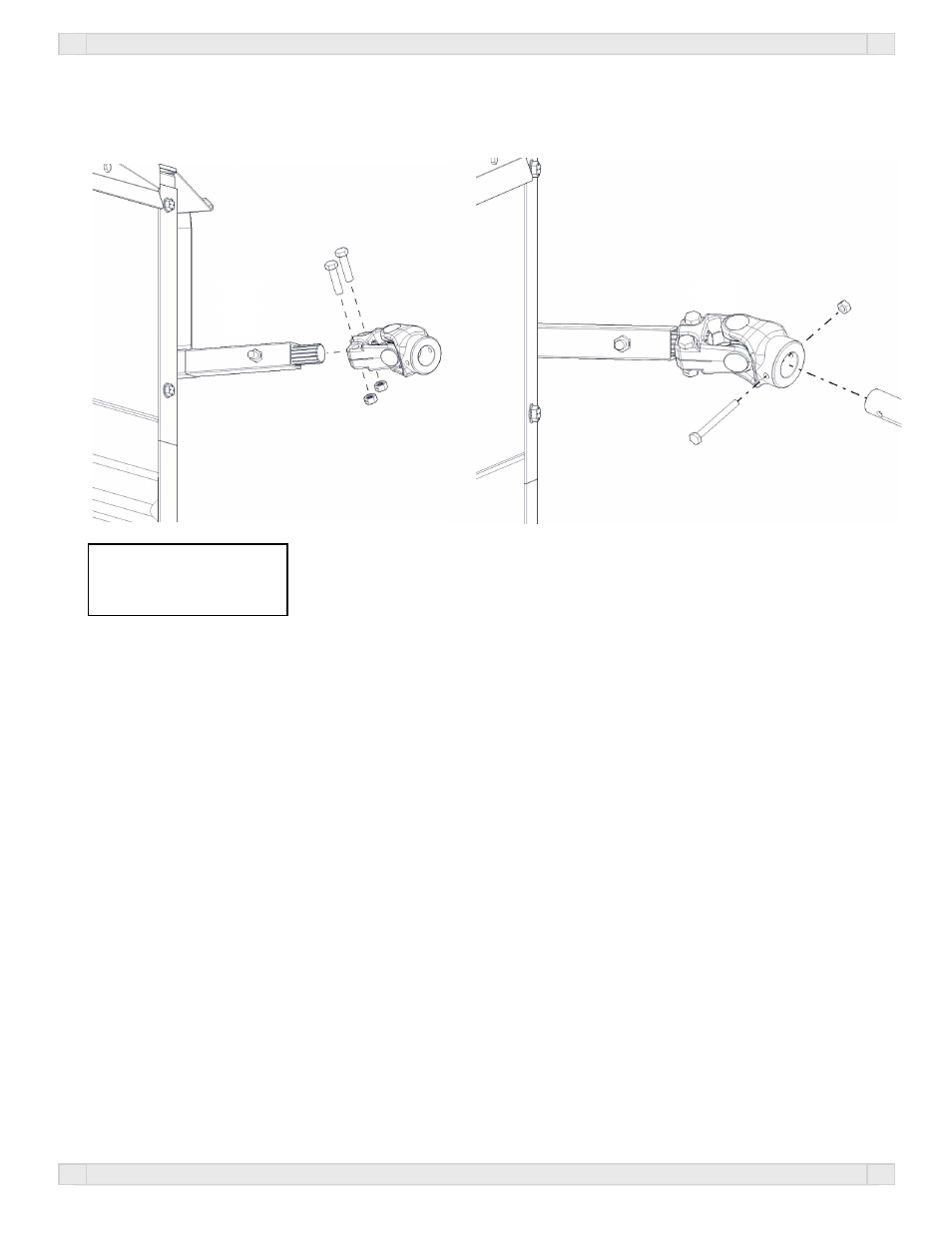

Attach the knuckle to the roll pipe. Use (2) 3/8” x 2” hex bolts along with (2) 3/8” lock nuts. Now attach the
crank hattndle to the universal joint. Install the Crank Handle using (1) 1/4” x 2-1/2” bolt and (1) 1/4” lock-
nut.
The Universal Joint may be pre-assembled to the Crank Handle.
Tools Needed:
9/16” Socket & Wrench
7/16” Socket & Wrench
