Install the Spring Return

Install Tarp Standoffs

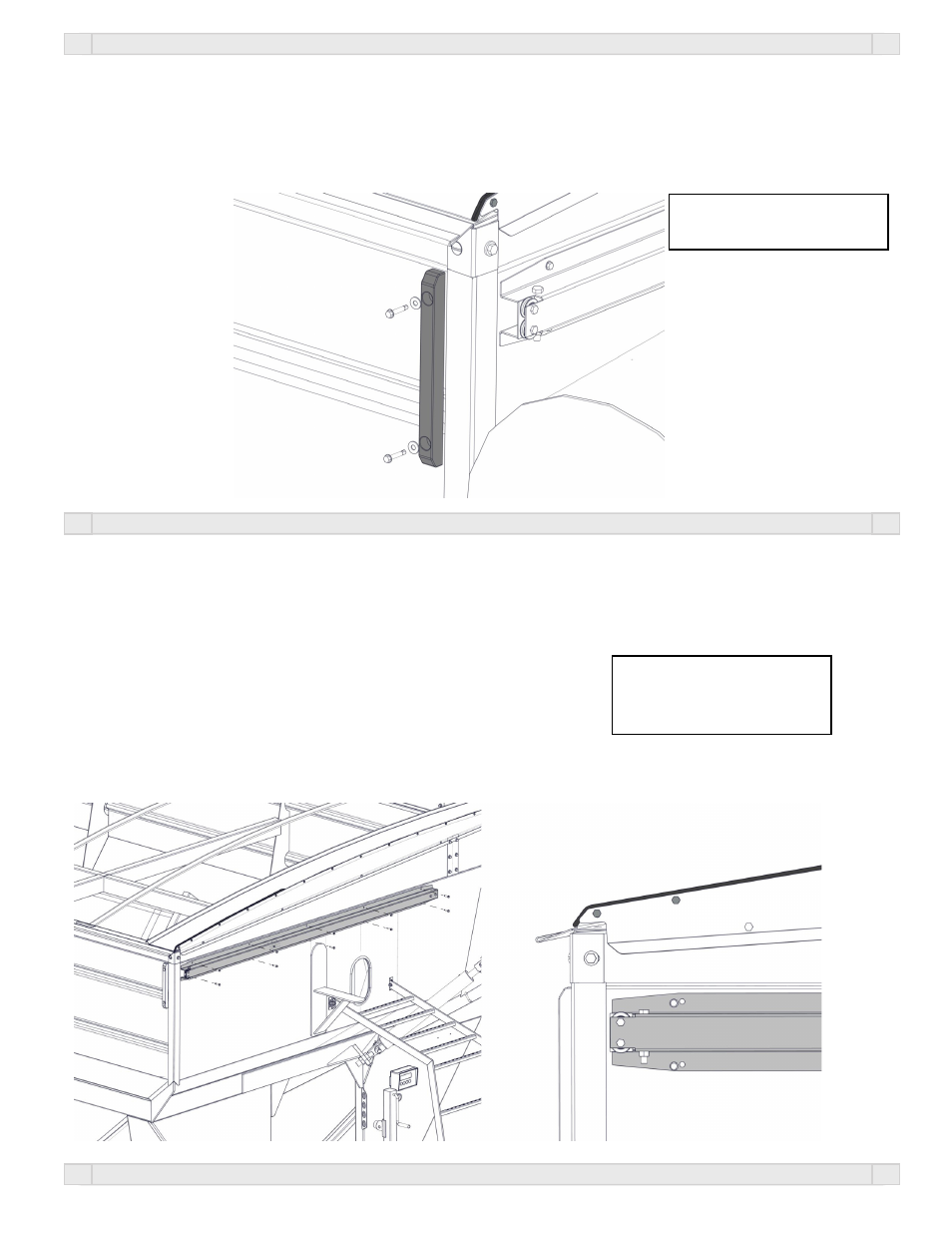

Install the plastic stand-offs. Place the standoff approximately 3 inches from the top of the sideboard

extension. Butt the stand-off against the welds that are on the corner of the grain cart. Mark holes with

a 1/4” drill bit, then drill 2 thru holes. Use (2) 1/4” self tapping screws and (2) 1/4” washers to fasten the

standoff to the grain cart. Do this for the opposite auger front and rear parts of the grain cart.

Install the spring return assembly. Place the spring return below the front sideboard extension and butt the

side of the spring return against the welds on the corner of the grain cart. Use a 1/4” drill bit to make your

first hole. Then fasten the spring return to the cart using 1/4” x 3” self tapping screws. Next drill through the

remaining holes and insert the self tapping screws.

Tools Needed:

7/16” Socket w/ Impact

Tools Needed:

7/16” Socket w/ Impact

1/4” Drill Bit
