Page 7 TG61B
Yes No
Alternator is defective.
Unplug alternator-to-regulator 7-socket harness from regulator. Connect red lead from DMM to socket C in plug.
Connect black lead to socket F in plug. Does resistance read 1.5 ± 0.2 ohms?

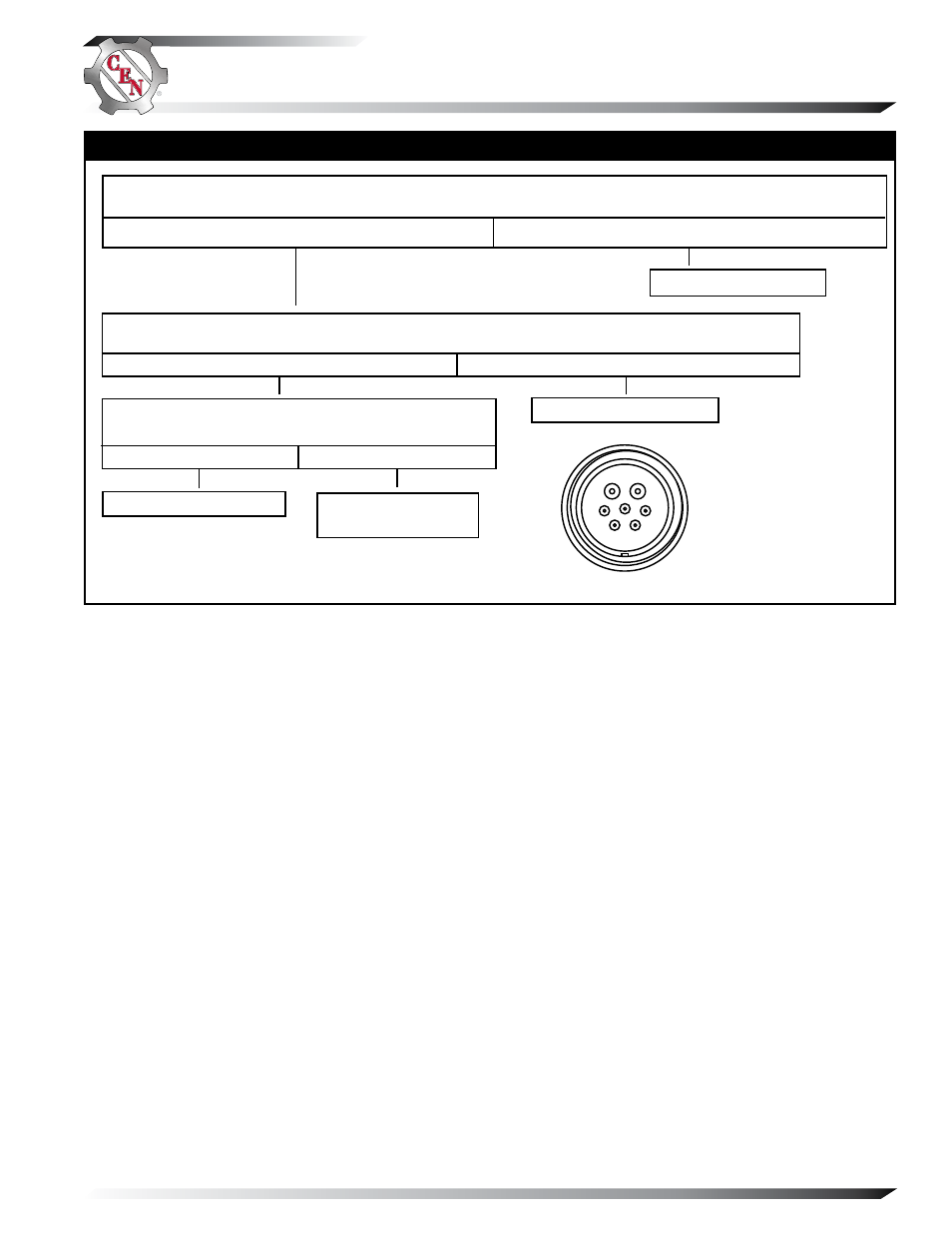

Chart 3 – Test OVCO Circuit
Yes No
Replace existing regulator with known good regulator.
Run engine. Does OVCO trip?
Alternator is defective. Original regulator is
defective.
 
Yes No
With red lead from DMM connected to socket C in plug, connect black lead to B– terminal. Does
resistance read OL (out of limits)?
Alternator is defective.




Figure 6 – Alternator-to-Regulator 7-Socket Harness Plug
