Section C: Advanced Troubleshooting
(CONT’D)
Yes No
Alternator is defective.
With engine off, unplug alternator-to-regulator harness. Connect DMM red lead to socket A on harness plug.
Connect black lead to alternator anti-drive end B+ terminal. Does resistance measure about 1.0 ± 0.2 ohms?

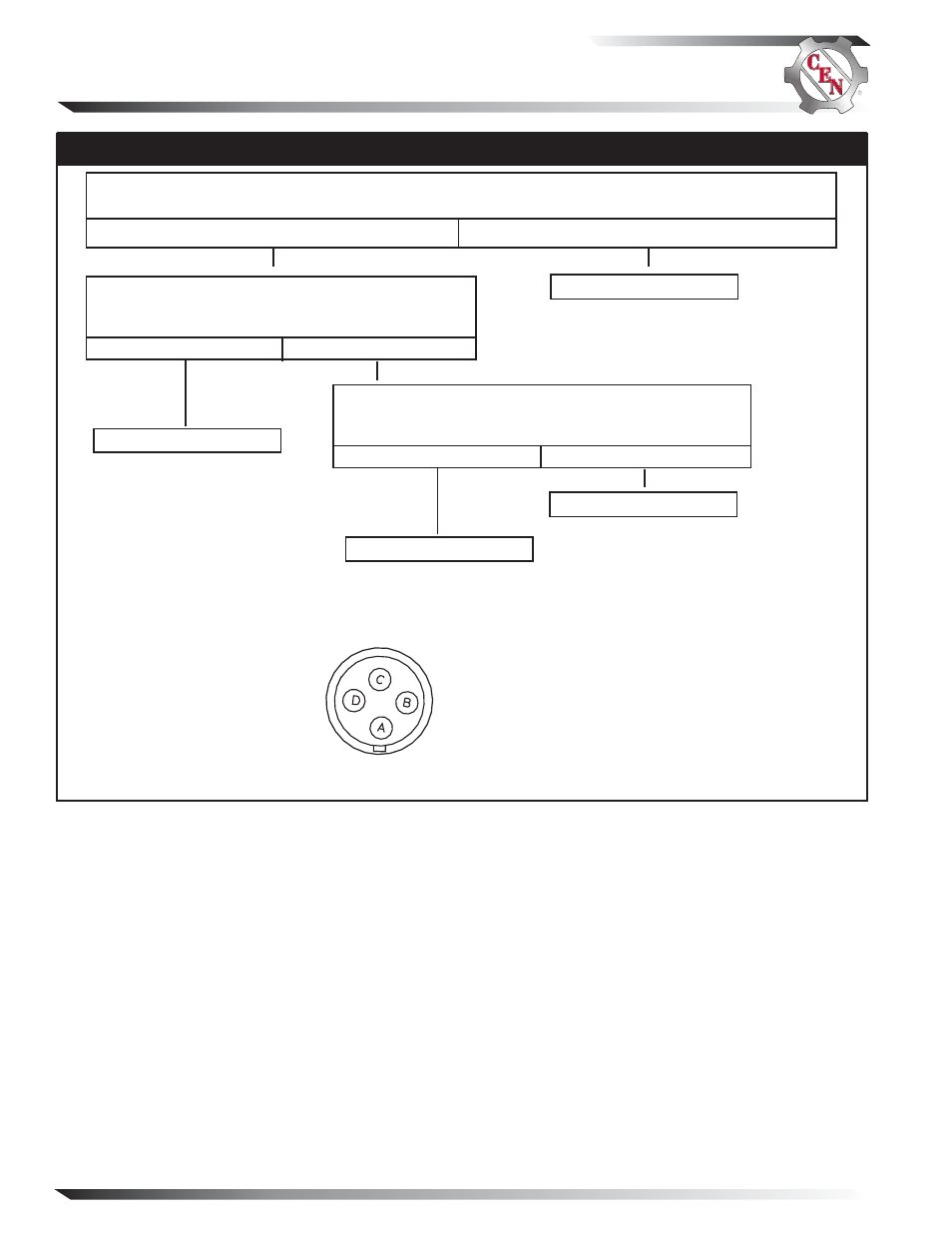

Chart 5 – N1604-all models – No Alternator Output – Test OVCO Circuit
Yes No
Connect DMM red lead to socket A on alternator-to-
regulator harness plug. Connect black lead to alternator
anti-drive end B– terminal. Does continuity exist?
Alternator is defective.
 


Figure 10 – Alternator-to-Regulator Harness Plug
SOCKET CONNECTIONS
Pin A F–
Pin B AC Terminal
Pin C B–
Pin D B+
Yes No
Connect DMM red lead to socket A on alternator-to-regulator
harness plug. Connect black lead to alternator case.
Does continuity exist?
Regulator is defective.
Alternator is defective.


