TG0052A
Section 4: Advanced Troubleshooting

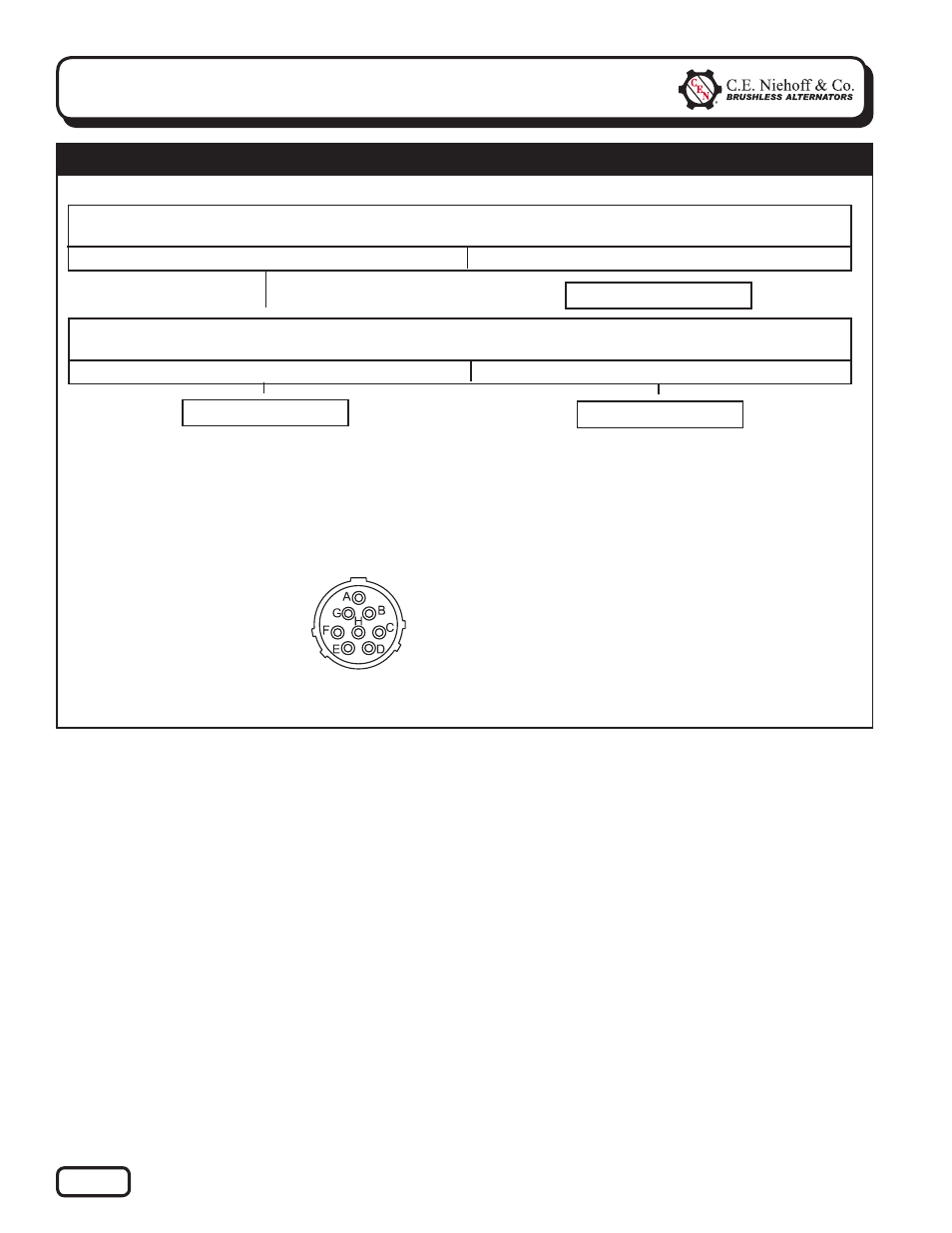

Figure 5 – Alternator-to-Regulator Harness Plug
PIN CONNECTIONS
Pin A F–
Pin B Phase 1
Pin C GND/B–
Pin D B+
Pin E Kelvin +
Pin F F+
Pin G Kelvin –
Pin H Phase 2
Chart 1 cont’d from Page 5 – No Alternator Output –
Quick Diagnostic
Momentarily (1 sec.) jumper pin F in harness plug to alternator B+ terminal and jumper pin A in harness plug to
B- terminal. Touch shaft with steel tool to detect significant magnetism. Is shaft magnetized?
Yes No
Alternator is defective.
T
Regulator is defective.
T
T
Yes No
Alternator is defective.
T
(CONT’D)
With DMM on resistance scale: Connect red lead to pin E in harness plug. Connect black lead to alternator B+
terminal. Meter should read 0 ohms. Change pin E to pin G. Meter should read 0 ohms.
