Page 5 TG69A
Section C: Advanced Troubleshooting
(CONT’D)

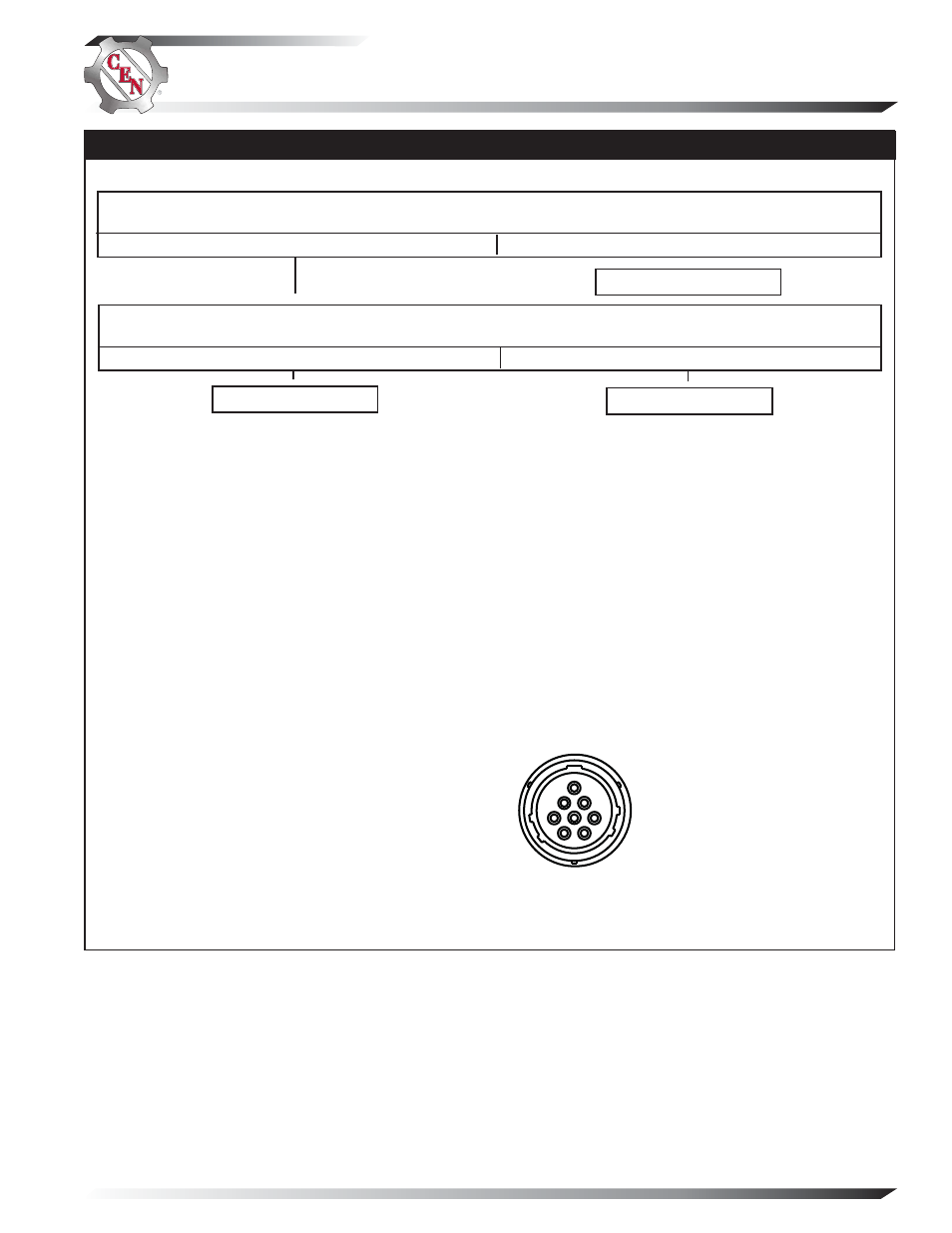

Figure 4 – Alternator-to-Regulator Harness Plug
Chart 1 cont’d from Page 4 – No Alternator Output – Quick Diagnostic
Momentarily (1 sec.) jumper pin F in harness plug to alternator B+ terminal. Touch shaft with steel tool to
detect significant magnetism. Is shaft magnetized? Repeat magnetism test for pin A.
Yes No
Alternator is defective.

Regulator is defective.


Yes No
Alternator is defective.

With DMM on resistance scale: Connect red lead to pin D in harness plug. Connect black lead to alternator
B+ terminal. Meter should read 0 ohms. Change pin D to pin G. Meter should read 0 ohms.
