II162A

Page 2 of 4

1. Install rectifier-regulator assembly in location

determined by customer, using hardware and
torque specified by customer.

2. Remove shipping spacers from both sides of

rectifier-regulator.

3. Connect rectifier-regulator to alternator

with wiring conduit shown in
Figure 3 and 4.

4. Output conduit supplied by customer

connects rectifier-regulator with
customer circuit and consists of
B+ and B– output leads plus
R terminal lead if used.

5. R circuit current: 3 A max

Square wave signal: 0-30 V
Alternator speed formula: RPM=f(Hz)•10

6. Alternator is configured for self-

energization. Regulator brown wire
is connected to R circuit. If external
energize is required, remove brown
wire between R terminal and module
terminal A. Connect energize signal,
which must open when alternator shaft
is not rotating.

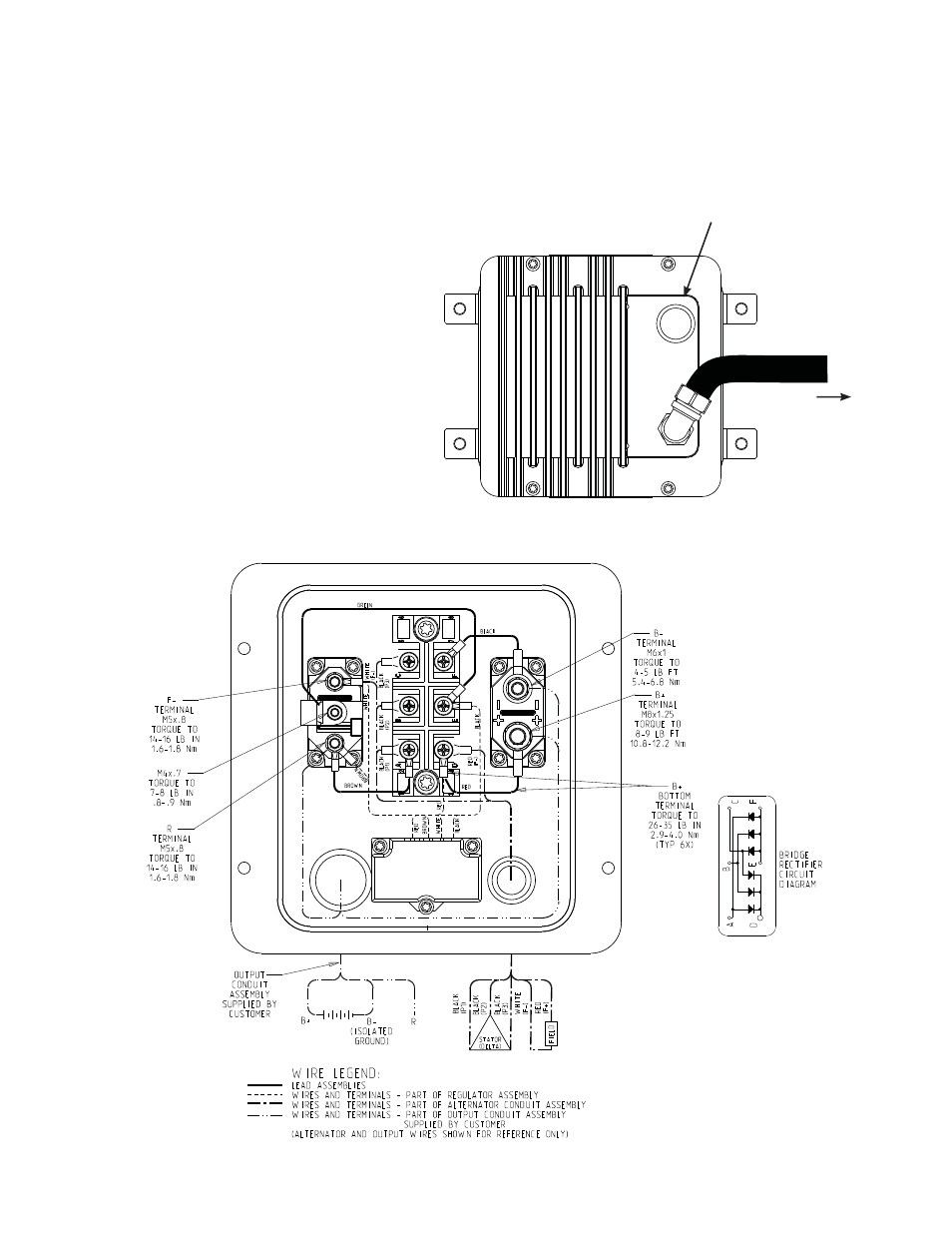

Figure 4 - C180-1/A8-206 Component Interconnect Diagram

Figure 3 - A8-206 Rectifier-Regulator Cover Connections

C180-1 Alternator

w/ A8-206 Rectifi er-Regulator

7. Series connected isolation diode in the B+ circuit is

not permissible.

8. When wiring inside rectifier-regulator cover is

complete, re-install cover and torque hardware
to 5.4 Nm/48 lb. in.

To alternator

See step 2.
M25 x 1.25 pipe thread
for connecting output
conduit assembly
