MoTeC Overview
5
Setup Parameters
The Setup Parameters allow the ECU to be configured for almost any engine.
The Setup Parameters include Number of Cylinders, Ignition Type, Sensor
Types, Injector Current, Auxiliary Output Functions etc.
The Setup Parameters must be correct before attempting to start the
engine.

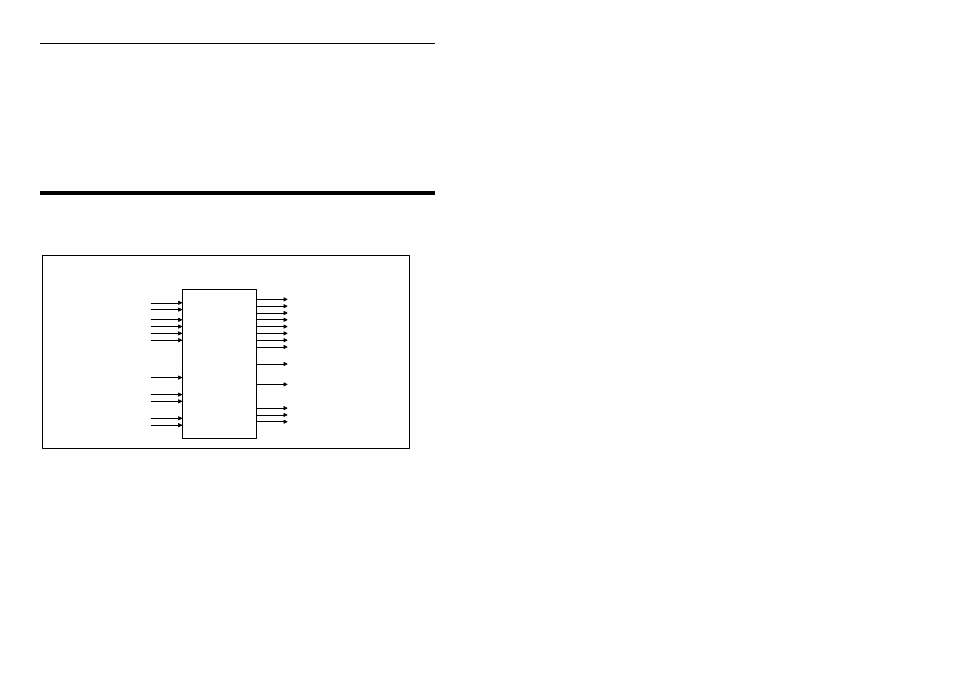

ECU Inputs & Outputs
The ECU analyses signals from the sensors, then controls the Fuel Injectors,
Ignition System and other auxiliary devices according to the Calibration and
Setup Data which is stored in the ECUs programmable memory.
ECU
Fuel Injectors
Auxiliary Outputs
Ignition Output 1
Main Engine Sensors
INPUTS
OUTPUTS
eg. Idle Speed Valve
eg. Waste Gate Valve
Throttle Position
Engine Temp
Trigger Sensors
eg. Fuel Pump Relay etc
(4 Injectors on M4)
(8 Injectors on M4-8)
Auxiliary Output 1
REF
Injector 1
TP
MAP
ET
AT
Aux Temp
Dig Input 1
Dig Input 2
Aux Volt
Lambda
SYNC
IGN 1
AUX 1
AUX 2
AUX 3
AUX 4
Injector 2
Injector 3
Injector 4
(Injector 5)
(Injector 6)
(Injector 7)
(Injector 8)
Inlet Air Temp
Manifold Pressure
eg. Exhaust Gas Temp
Wide Band Mixture Sensor
Wheel Speed or Switch
Wheel Speed or Switch
Optional Sensors
Ignition or
eg. Intercooler Temp
M4 or M48
