BRAY Series 52 Valve Status Monitor
Operation and Maintenance Manual

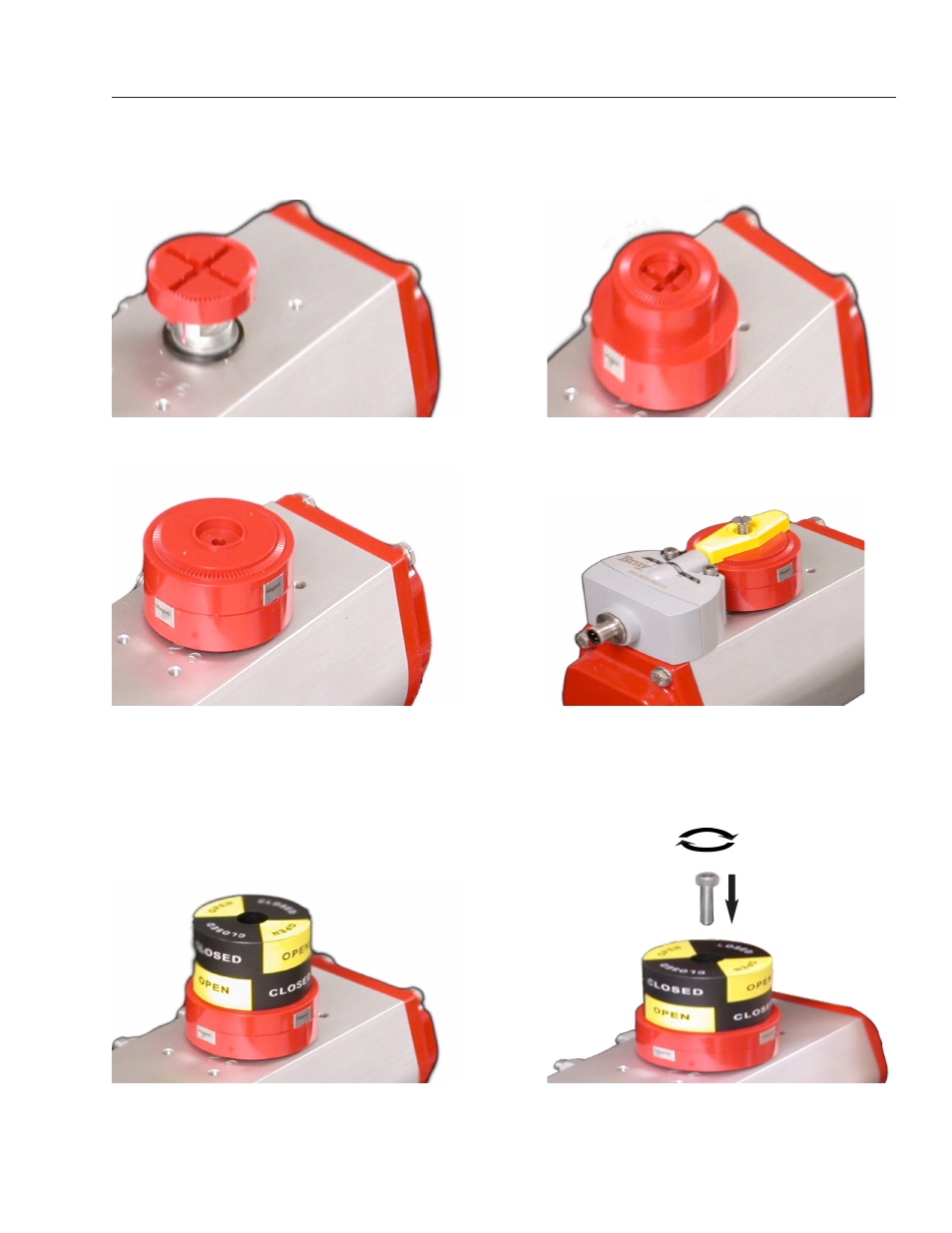

The steps required to set up the adjustable target for your S52 2N1 Valve Status Monitor:
Step 1: Place the base on top of your pneumatic
actuator’s output pinion.
Step 2: Place the middle piece on top of the base so
that the metal target is in front of where the bottom
switch (labeled 2) of the S52 will be located.
Step 3: Place the top piece so that the metal target
will be directly in front of the top switch (labeled
1) on the S52 when the actuator rotates to it’s op-
posite end of travel position. If you have a high
visibility indicator kit, jump to step 5 - otherwise
proceed to step 4.
Step 4: Place the yellow pointer in your desired
orientation and tighten the mounting screw. Note:
Units assembled at the factory will have yellow
pointers in line with valve discs.
Step 5: Mount the high visibility beacon on top of
the target to display ‘Open’ and ‘Closed’ according
to your actuator/valve mounting orientation.
Step 6: Tighten the mounting screw to ensure that
your indicator and target are secured to the pinion
of the actuator. Note: damage to the indicator can
result from over tightening the screw.
