BRAY Series 52 Valve Status Monitor
Operation and Maintenance Manual

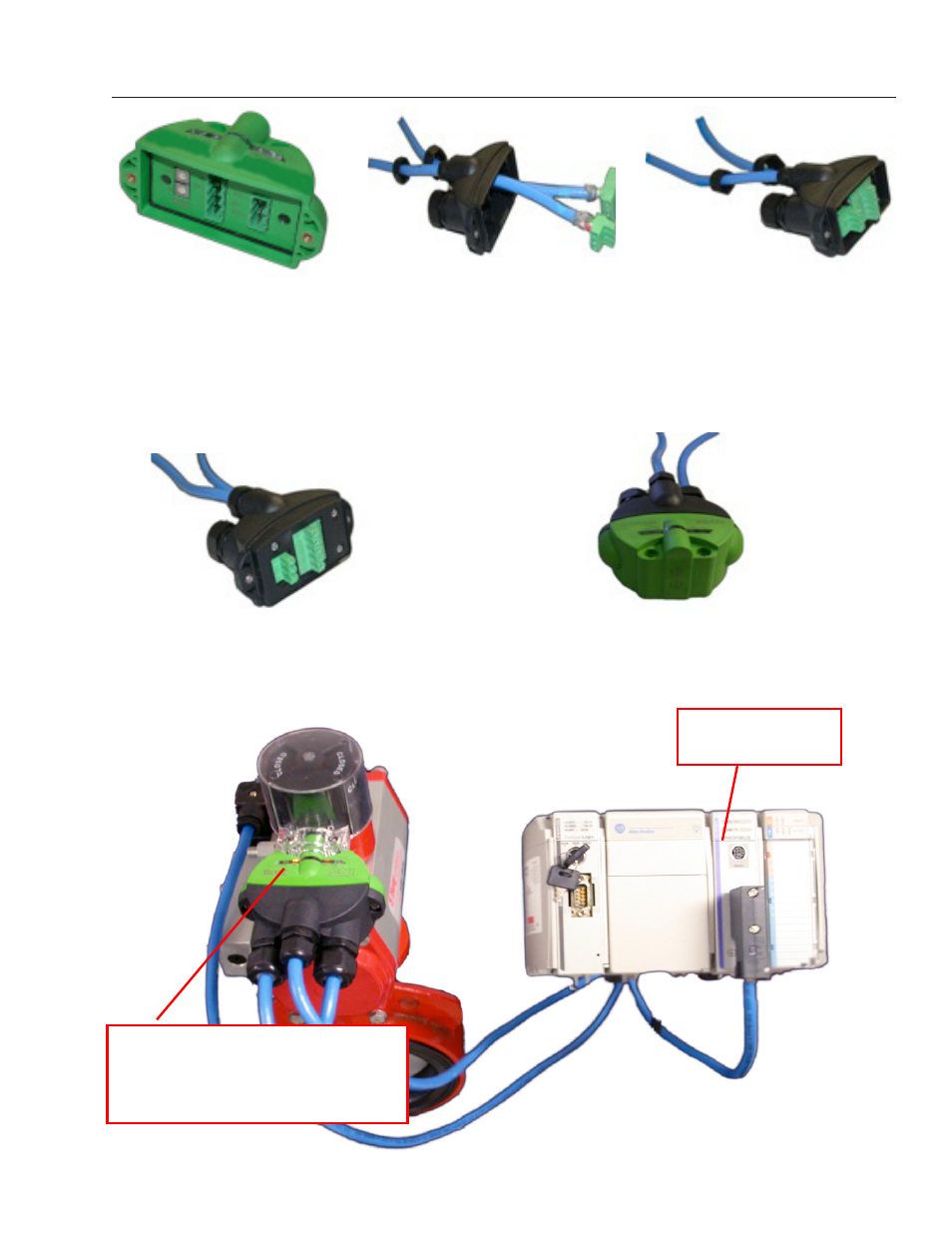

Step 4: Use the adjustment
knobs to set your device’s
network address. Step 5: Insert your solenoid cable
and your PROFIBUS DP & BUS
power cable through the cable
glands of the connection module.
Terminate the wires into the la-
beled connectors. Step 6: Heat shrink the termina-
tions and pull the excess cable back
through the cable glands, aligning
the connectors with the chambers
of the connection module.
Step 7: Place the connection
plate on the connection module
and tighten the fastening screws. Step 8: Align the connection module to the sensor
module and tighten the fastening screws. Your sensor
is now ready to be mounted on your actuator.
Profibus DP S52, Bray P/Ns:
52-1008-12624-536 (kit) includes:
- 52-1008-71114-536 (S52)
- 52-1000-14821-533 (target)
PLC with Profibus
DP Scanner
