BRAY Series 52 Valve Status Monitor

Operation and Maintenance Manual

AC Version 20-250VAC, 50-60Hz

WARNING

I.S. S52 must be used in conjunction with I.S. barrier. Installation and
wiring should be carried out by trained personnel who will ensure that the work
complies with local standards & NEC practices

!

PIN 3

PIN 1

PIN 2

PIN 4

PIN 5

LOAD 1

LOAD 2

S1

S2

20 to 250 Vac

NOT USED

LIVE

NEUTRAL

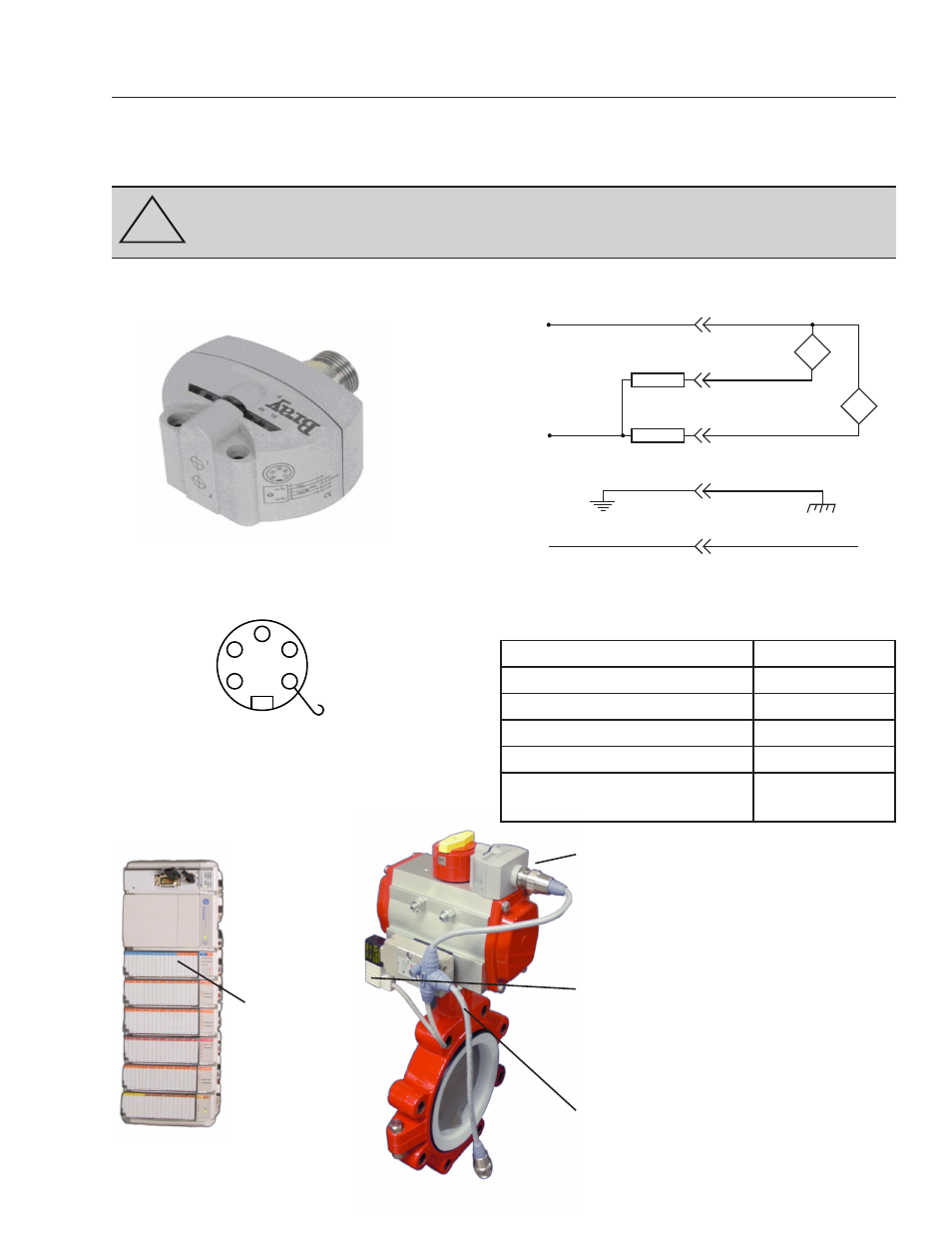

WIRING DIAGRAM

Specifications:

Operating Voltage

20-250 VAC

Target Type

Metallic

Electrical Configuration

AC

Maximum Switching Current

500mA

Output Voltage Drop

< 5VAC

Residual Current (Off State
Current)

< 1mA

S63 Solenoid, Bray P/N:

63-0250-21520-536

Bray P/N: 52-1004-12624-536 (Kit) includes:

- 52-1004-71114-536 (S52)

- 52-1000-14811-533 (target & std. indicator)

Drawing: ES11A-0544

Y Cord, Bray P/N: 60-0250-23661-536

Drawing # : ES11A-0559

7/8’’ 16 UN CONNECTOR

PINOUT DIAGRAM

3

2

1

4

5

KEY

NOTE:
WIRES NOT USED SHOULD BE
COILED AND TAPED FOR
PROTECTION

PLC with Digital

AC Input Module
